Chauvin Arnoux P01120967 | F607 clamp meter, handheld LCD, AC / DC, 2000A / 3000A

Name: P01120967 | F607 clamp meter, handheld LCD, AC / DC, 2000A / 3000A
Brand: Chauvin Arnoux
SKU: P01120967
Price: 835.0 CHF
Availability: OutOfStock

Manufacturer number: P01120967

Ready to ship in 5 to 10 business days

CHF 835.00

plus VAT. CHF 902.64 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries

F607 power and harmonics measuring clamp 2000 AAC / 3000 ADC from Chauvin Arnoux.

Amperages up to 2000 AAC / 3000 ADC
AC and DC voltages up to 1000 V.
Power measurement in W / VA / var, PF & DPF
Harmonic analysis up to the 25th order, THD-f & THD-r
Measurement of ripple
Resistance and acoustic continuity test
MIN / MAX / PEAK ± detection in all functions
Measurement of starting currents TrueInrush
Measurement data recording
Bluetooth data transmission and PC software
Triple display with 10,000 digits
Dimensions: W111 x H296 x D41mm
Weight: 640 gr.

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Accuracy current measurement AC/DC:	±1 % / ±1 %
Accuracy voltage measurement AC/DC:	±1 % / ±1 %
Article number:	P01120967
Current measuring range AC/DC:	250 mA - 2000 A / 0 mA - 3000 A
Dimensions (L x W x H) (mm):	296 x 111 x 41
Diode test / continuity test:	No / Yes
Direction of rotation:	No
Enclosure (mm):	60
Frequency measuring range:	5 Hz - 20 kHz
Hold:	Yes
Measurement method:	TRMS
Min. / Max. Measurement:	Yes / Yes
Model:	CA F607
Number of positions:	4
Power factor:	Yes
Power measurement (active / apparent / reactive):	Ja / Ja / Ja
Resistance measuring range:	100 mΩ - 100 kΩ
Resolution current measurement AC/DC:	+3 Digits
Resolution voltage measurement AC/DC:	+3 Digits
Temperature measuring range:	No
Voltage measuring range AC/DC:	150 mV - 1400 V / 0 mV - 1000 V
Weight (kg):	0.64

Description

P01120967 | F607 clamp meter, handheld LCD, AC / DC, 2000A / 3000A

With its 60 mm enclosure Ø and a current measurement range up to 3000 A, the F607 is ideally suited for measurements on distribution and transport networks in the low-voltage range.

The F607 is equipped with a fast 12-bit TRMS A / D converter and offers high measurement accuracy. The large bandwidth and the high crest factor enable precise measurements on any signal form.
Automatic AC / DC detection is standard on all models in this series and the housing is protected to IP54.

The large, illuminated triple display with 10,000 digits is perfectly readable under all conditions. Simple use as an example: each measuring function has its own rotary switch position.

Most important areas of application: maintenance, repair, monitoring, troubleshooting, dimensioning, new connection, ....

Lieferumfang

Scope of delivery with test leads, PAT software, alligator clip, batteries and transport bag

Alternate products (10 products)

Chauvin Arnoux
P01120923

F203 Clamp Multimeter, Hand 4 Digits, AC / DC, 600A / 900A

Ready to ship in 5 to 10 business days

CHF 329.00

Chauvin Arnoux
P01120921

F201 clamp meter, handheld 4 digits, AC, 600A

Ready to ship in 5 to 10 business days

CHF 271.00

Chauvin Arnoux
P01120947

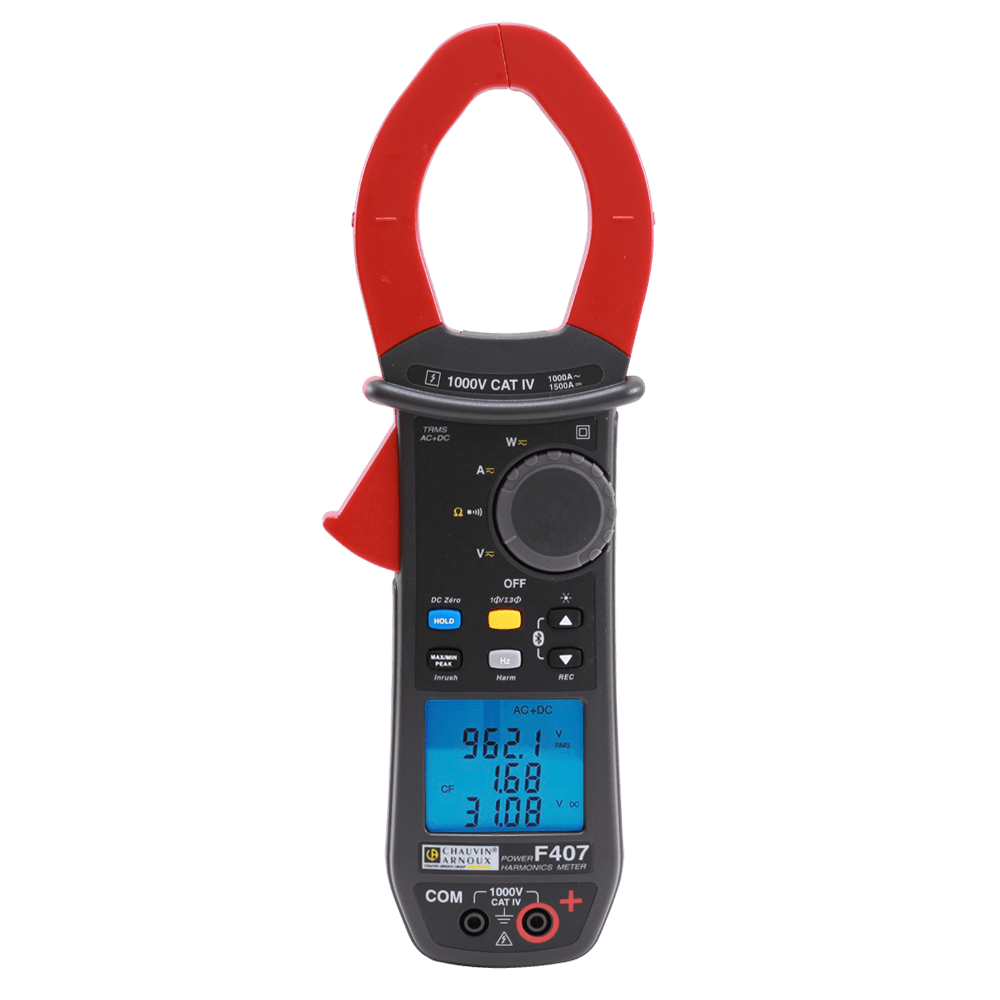

F407 clamp meter, handheld LCD, AC / DC, 1000A / 1500A
