Chauvin Arnoux MTX1032-C | 2-channel differential voltage, BNC ballast 50 MHz

Name: MTX1032-C | 2-channel differential voltage, BNC ballast 50 MHz
Brand: Chauvin Arnoux
SKU: MTX1032-C
Price: 816.0 CHF
Availability: OutOfStock

Manufacturer number: MTX1032-C

Delivery time upon request

CHF 816.00

plus VAT. CHF 882.10 VAT plus shipping costs

or choose one of the following options:

Product inquiries

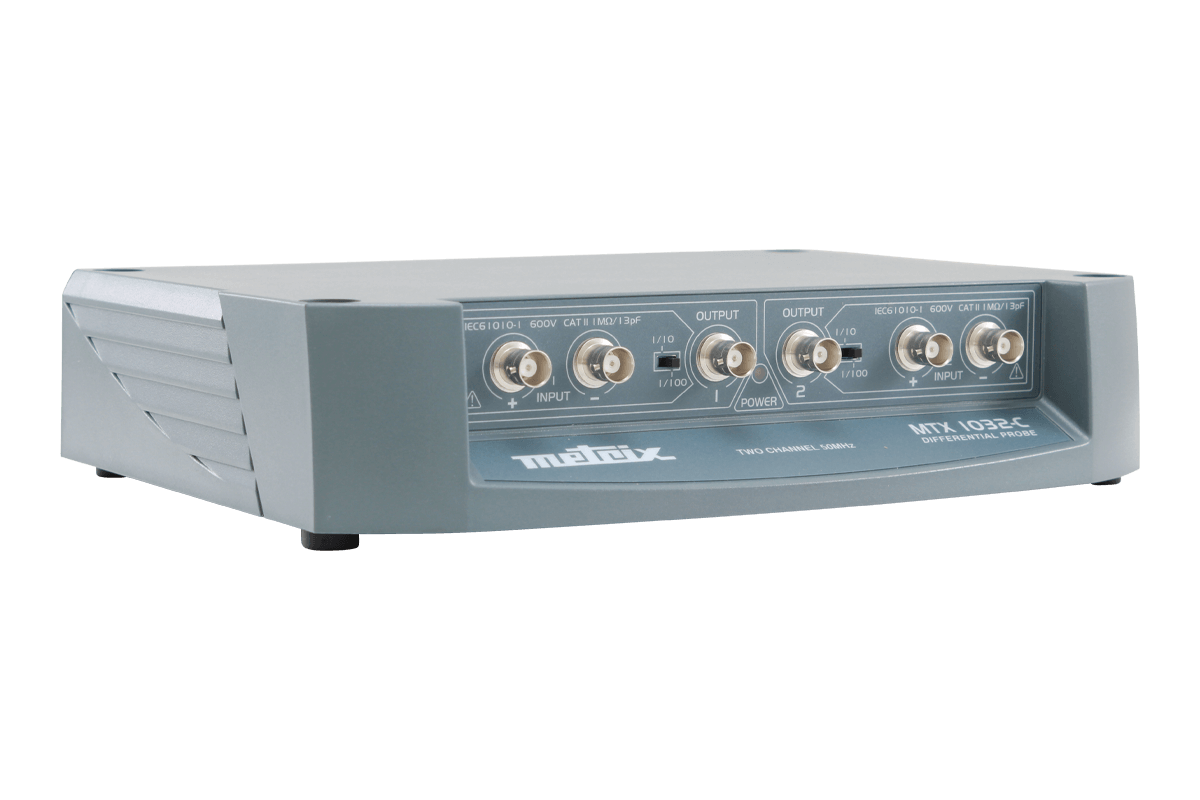

50 MHz differential voltage probe / ballast Chauvin Arnoux MTX1032C for oscilloscopes.

2 differential channels in a laboratory housing as coaxial connector
Oscilloscope attachment for floating measurements
Bandwidth 50 MHz
Rise time 7 ns
Input impedance 1 MΩ // 13 pF
Divider ratios 1/10 & 1/100
Front actuation of divider ratio selector switch
Display LED display device under voltage
Maximum input voltage 600 V / CAT II
Input differential voltage range from ± 0.1 to ± 600 V
Conformity up to 600V-CAT. IV (depending on the model)
Suitable for all class 1 oscilloscopes (grounded oscilloscope)
Corresponds to the safety regulations of the low voltage directive according to IEC 61010-1 (2001)
Complies with the EMC regulations according to EN 61326-1 (07/97) + A1 (10/98) + A2 (2001)
Coaxial outputs with an output impedance of 50 Ω
Coaxial output cable (short detachable cable approx. 20 cm)

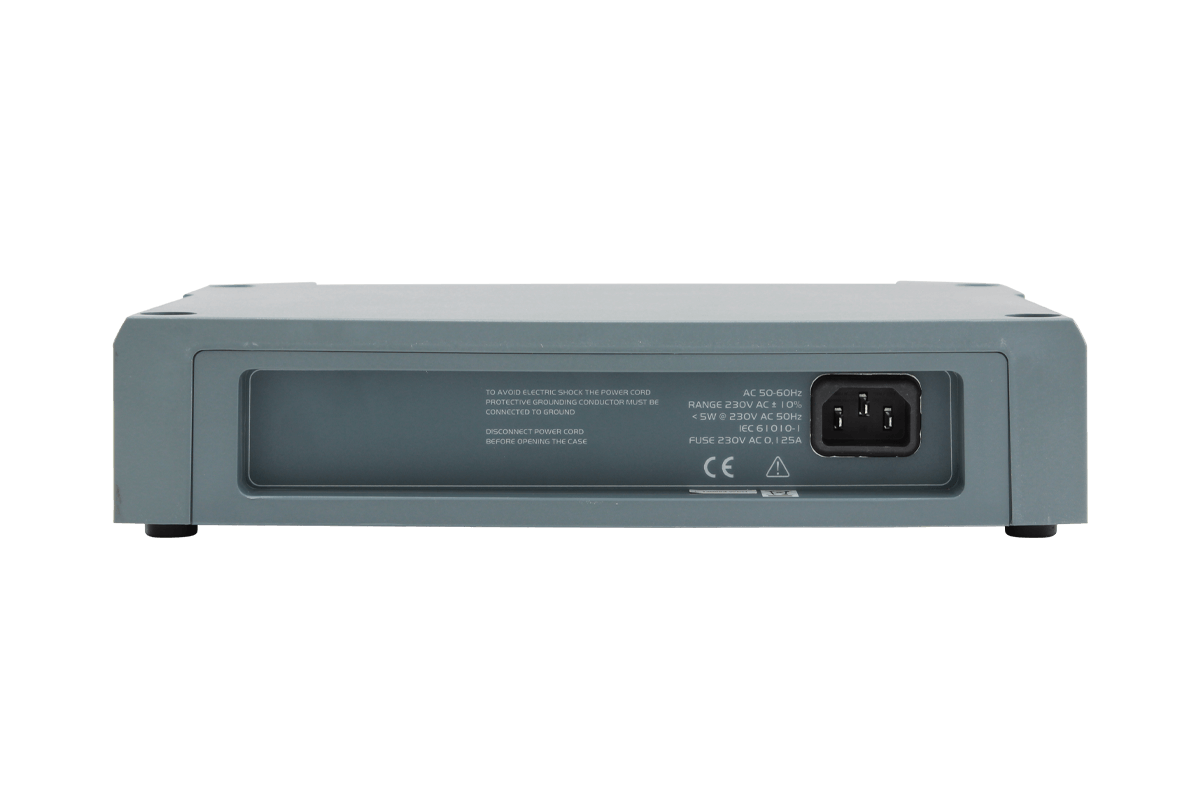

Mains operation 230 VAC ± 10% 50/60 Hz
Degree of protection IP 40

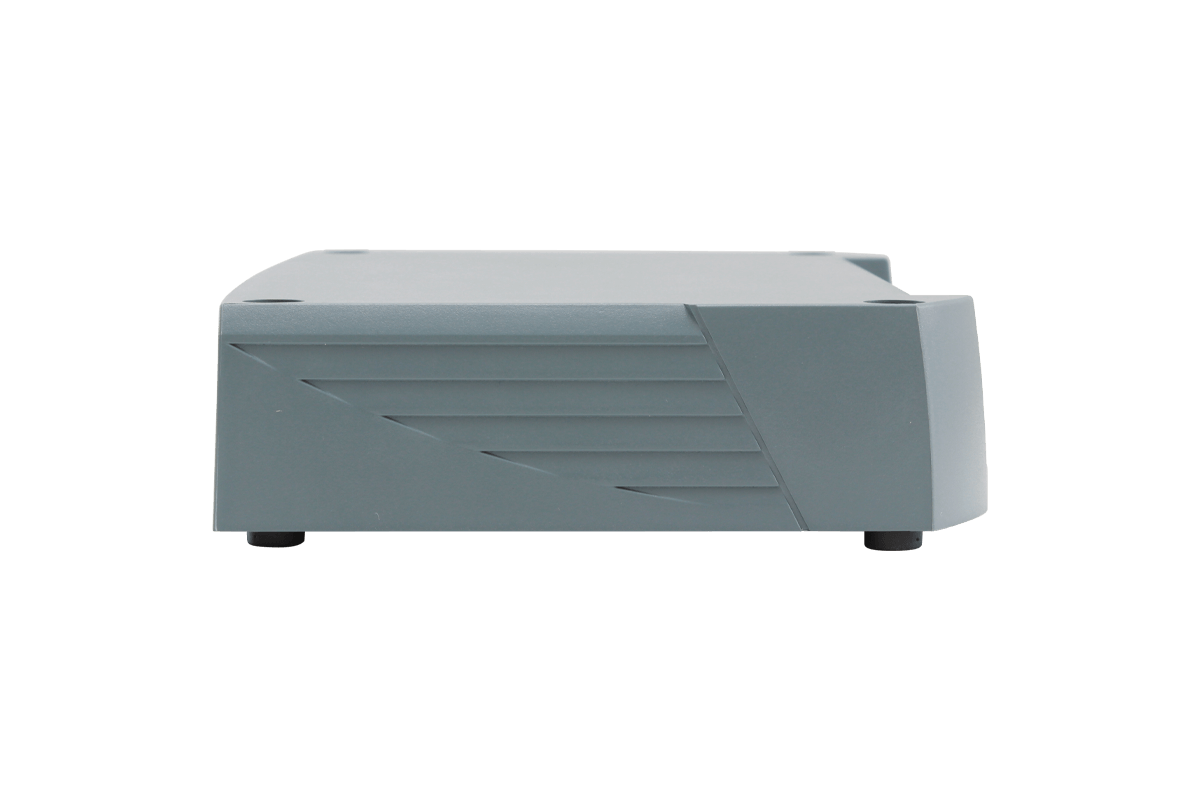

Dimensions 270 x 250 x 63 mm
Warranty 2 years
Included accessories:
MTX1032-C = 1 two-channel probe in the "MTX Pack" housing, 2 short 20 cm BNC cables, 2 sets of shielded 1.10 m long PVC test leads with banana plugs (P01295237Z), 1 European power cord, 1 instruction manual.

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

MTX1032-C | 2-channel differential voltage, BNC ballast 50 MHz

The indispensable accessory for analog or digital oscilloscopes for connecting probes / probes without reference earth. Oscilloscope attachment for floating measurements.

Lieferumfang

included accessories:
MTX1032-C = 1 two-channel probe in the "MTX Pack" housing, 2 short 20 cm BNC cables, 2 sets of shielded 1.10 m long PVC test leads with banana plugs (P01295237Z), 1 European power cord, 1 instruction manual.

Alternate products (1 products )

Alternate products (1 product )

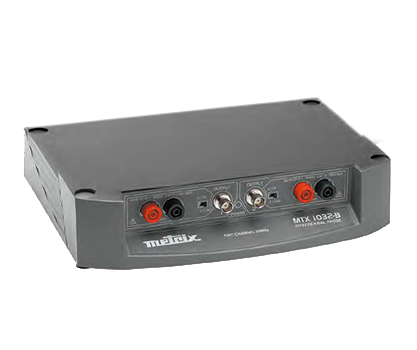

Chauvin Arnoux MTX1032-B

2-channel differential voltage, 4mm ballast 30 MHz

Delivery time upon request

CHF 661.00
