Chauvin Arnoux P01160657 | CA 8345 power and power quality analyzer with power supply / charger PA40W-2

Manufacturer number: P01160657

Chauvin Arnoux P01160657
Chauvin Arnoux P01160657
Chauvin Arnoux P01160657
Chauvin Arnoux P01160657
Chauvin Arnoux P01160657
Chauvin Arnoux P01160657
Chauvin Arnoux P01160657
Chauvin Arnoux P01160657
Chauvin Arnoux P01160657
Chauvin Arnoux P01160657
Chauvin Arnoux P01160657
1 in stock. Ready to ship in 1 business day

CHF 6,637.00

plus VAT. CHF 7,174.60 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Scope Related Articles

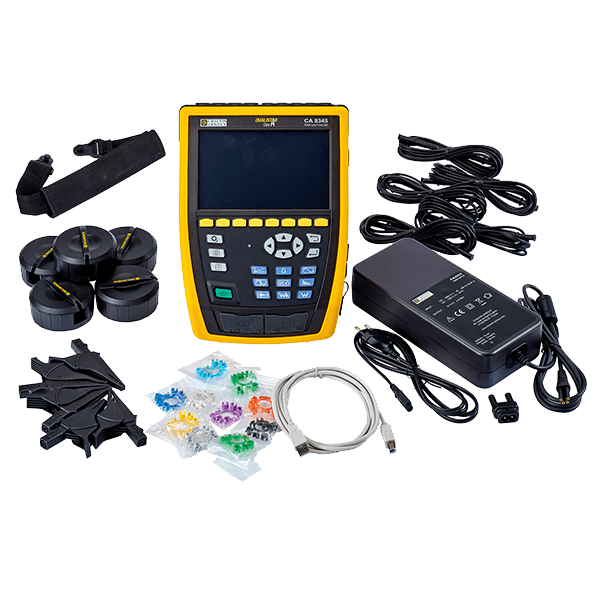

Chauvin Arnoux P01160657 | CA 8345 power and power quality analyzer with power supply / charger PA40W-2.

  • CA8345
  • AC adapter/charger PA40W-2
  • Multilingual Quick Start Guide
  • Detachable shoulder strap
  • Set of identification parts
  • 5 cable winder Reeling Box
  • Magnetic mount with hook
  • USB cable A/B, 1.80 m long
  • Set of 5 safety test leads & alligator clips
  • test certificate
  • safety data sheet
  • SD memory card
  • transport bag

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 2.78 MB
Userguide
pdf | 2.70 MB

Description

P01160657 | CA 8345 power and power quality analyzer with power supply / charger PA40W-2

The Chauvin Arnoux CA 8345 is a Class A power analyzer and voltage quality tester.

The handy performance analyzer is specially designed for testing and maintenance services of industrial and commercial plants. The CA 8345 immediately provides you with a precise overview of the most important quality features of the electrical network, is suitable for every type of system and automatically recognizes the type of current sensor connected.

It is operated via the comfortable and intuitive user interface. The large LCD touchscreen display clearly shows all values. Furthermore, multilingual online help can be called up at any time.

The measurements of the CA8345 are characterized by high accuracy. It calculates many values from them and has numerous editing functions. It therefore always offers you an overview of all measured values that are necessary for monitoring electrical distribution networks and increasing energy efficiency. The costs of the electricity consumed can also be determined very quickly.

As required by IEC 61000-4-7 Electromagnetic Compatibility standard, the analyzer displays the harmonics and interharmonics present. At the same time, the device also recognizes the Powerline currents running over the network.

This variant of the CA 8345 includes the PA40W-2 mains adapter/charger . The PA40W-2 supplies the analyzer with power during long periods of use and protects the built-in battery, which is charged at the same time. Alternatively, you can also get the CA 8345 with the PA32ER power pack/charger, which can also be connected directly to AC or DC power networks up to 1000 V between phases or phase and neutral conductor with safety plugs.

The Chauvin Arnoux CA 8345 monitors all events occurring on the network:

  • Trend and change diagrams of network parameters
  • Adjustable alarms, with the ability to send emails to the user
  • transients of 2.5 µs
  • 12 kV shock waves lasting 500 ns
  • TrueInrush detection, to detect high inrush currents....

In the monitoring mode (monitoring), the device records the measurement data over a certain period of time in order to analyze the voltage quality according to the EN 50160 standard. In addition to the exchangeable SD card or a USB stick, the measurement data from the CA 8345 can be transmitted via USB connection, remote connection, Wifi (directly or via server) or RJ45. In the IRD server mode, the measurement data can be queried from anywhere in the world.

With the Power Analyzer Transfer (PAT3) software, all measurements made can be processed and evaluated.

Lieferumfang

  • CA 8345
  • Netz-/Ladegerät PA40W-2
  • Mehrsprachige Kurzanleitung
  • Abnehmbarer Trageriemen
  • Satz Kennzeichnungsteile
  • 5 Leitungsaufwickler Reeling Box
  • Magnethalterung mit Haken
  • USB-Kabel A/B, 1,80 m lang
  • Satz von 5 Sicherheitsmessleitungen & Krokodilklemmen
  • Prüfbescheinigung
  • Sicherheitsdatenblatt
  • SD-Speicherkarte
  • Transporttasche
