B&K Precision 5492C | Bench Multimeter, TRMS, 5.5 Digits, USB, RS-232, LAN, 5490C Series

Manufacturer number: BK5492C

5492C
5492C
5492C
5492C
5492C
5492C
5492C
5492C
Reordered - in stock. Delivery time on request

CHF 876.00

plus VAT. CHF 946.96 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

B&K Precision 5492C | Bench multimeter, TRMS, 5.5 digits, USB, RS-232, LAN.

Technical Data

Documents & Downloads

Datasheet
pdf | 1.79 MB

Description

5492C | Bench Multimeter, TRMS, 5.5 Digits, USB, RS-232, LAN, 5490C Series

The 5492C model is a high-precision 5½-digit benchtop digital multimeter from the 5490C series from B&K Precision. It offers fast, stable readings with a basic accuracy of 0.010 % (100 ppm) in the DC voltage range. The versatile measurement functions, combined with intuitive operation via a large color display, make the device ideal for demanding measurement tasks in development, production, service and quality assurance.

The device is suitable for a wide range of measurement tasks such as voltage, current, resistance, frequency, capacitance, temperature and diode measurements. Thanks to the dual measurement display, trend diagrams, histograms and statistical analysis, the multimeter is a powerful tool for modern test benches and laboratories.

Product features:

  • Resolution: 5½-digit
  • Basic accuracy DCV: ±0.010 % (100 ppm)

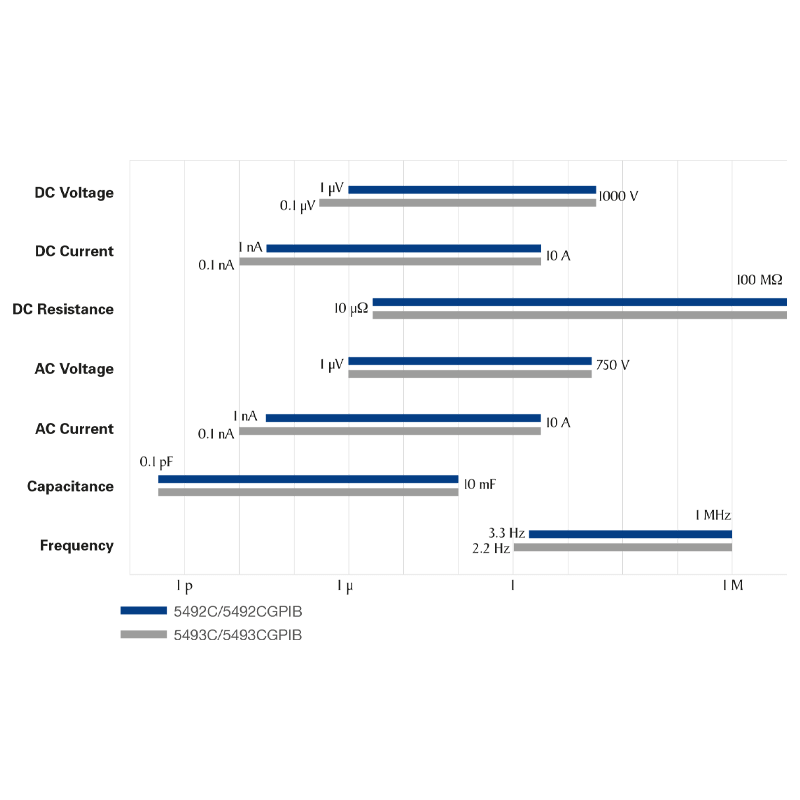

  • Measurement functions: DCV, ACV, DCI, ACI, resistance (2/4-wire), capacitance, frequency, temperature, diode test, continuity, DCV ratio
  • Measurement speed: up to 1000 measured values/s
  • Display: 4.3" color LCD with bar graph, histogram and trend chart
  • Dual measurement function: simultaneous display of two measured values
  • Memory: 10.000 measured values can be stored internally

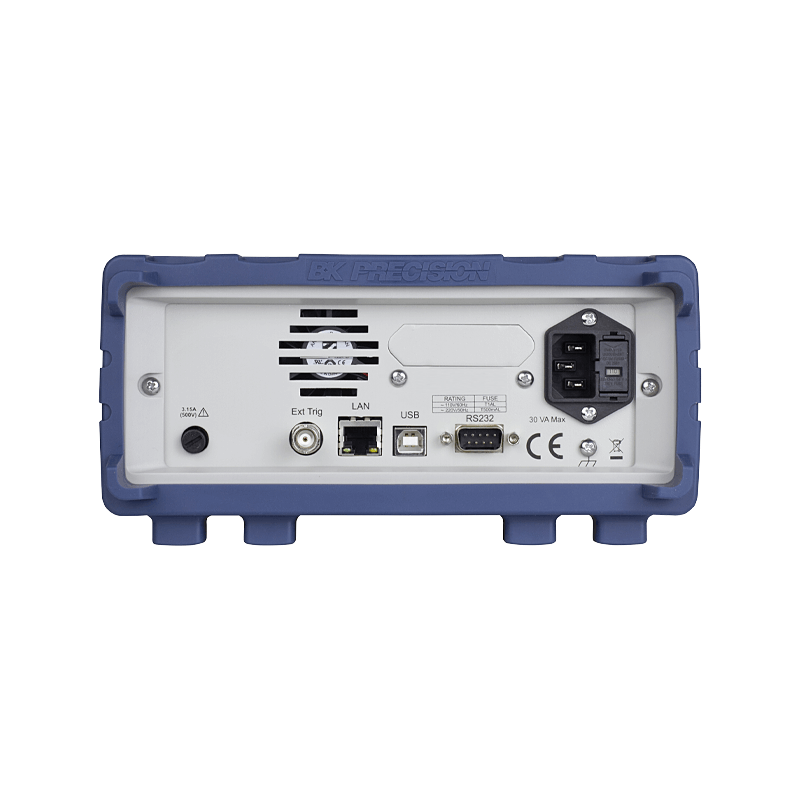

  • Communication: USB (USBTMC), RS232, LAN (GPIB optional)
  • Temperature measurement with Pt100 or 5kΩ thermistor
  • Dimensions (W×H×D): 225 × 100 × 355 mm | Weight: 2.5 kg

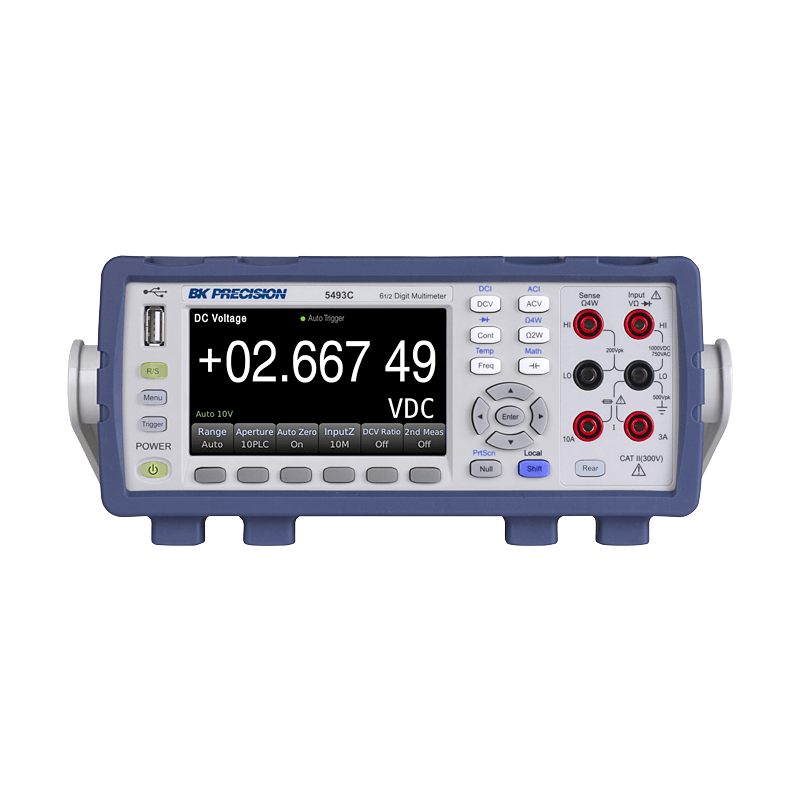

The 5490C series includes four main models: 5492C, 5492CGPIB, 5493C and 5493CGPIB. The 5492C model offers a resolution of 5½ digits and therefore represents a solid middle ground between measurement accuracy and price. Compared to the 5493C version (6½ digits), it has a slightly lower resolution and accuracy (DCV: 100 ppm vs. 35 ppm), but is ideal for standard applications. The GPIB versions (5492CGPIB and 5493CGPIB) offer additional connection options for system integration in automated test environments. In addition, only the 6½-digit models have rear input terminals, which makes them particularly suitable for rack mounting.
