Teledyne FLIR MR77 | Thermo-hygrometer with IR thermometer, meter link humidity, pressure

Manufacturer number: MR77

Teledyne FLIR MR77
Teledyne FLIR MR77
Teledyne FLIR MR77
Teledyne FLIR MR77
Teledyne FLIR MR77
Teledyne FLIR MR77
Teledyne FLIR MR77
Teledyne FLIR MR77
Teledyne FLIR MR77
Teledyne FLIR MR77
Delivery time upon request

€649.00

% €729.00 (10.97% saved)

or choose one of the following options:
Product downloads Product inquiries % Additional offers for this product
Highlights Documents / Downloads Description Scope Related Articles

FLIR MR77 | Non-contact moisture meter with infrared thermometer and Bluetooth METERLiNK.

  • Fast non-contact moisture measurement without damaging the surface to be measured
  • Optionally available wired moisture sensor with a cable length of 90 cm
  • Large display with background light and easy to read values
  • Simultaneous display of the moisture value (% value), the air temperature and the value from the infrared thermometer
  • Infrared thermometer for measuring the surface temperature with a distance / measuring diameter ratio of 8: 1 and a fixed emission factor of 0.95
  • Integrated humidity / temperature measurement, relative humidity and air temperature and the dew point
  • Measures ambient and surface vapor pressure
  • Automatic calculation of the differential temperature
  • Acquisition of minimum and maximum value and the current measured value
  • Measured value memory for 20 measuring points
  • Bluetooth range: 10 m (maximum)
  • Automatic shutdown when not in use and indicator of low battery voltage
  • Dimensions (without sensor): 139 mm (L) x 72 mm (W) x 42 mm (H)
  • Weight 290 g including batteries
  • Limited lifetime warranty

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 0.24 MB

Description

MR77 | Thermo-hygrometer with IR thermometer, meter link humidity, pressure

The all-in-one moisture meter MR77 from FLIR helps you with your moisture determinations and drying processes. The device is robust and designed for industrial use. It contains a non-contact sensor as well as a wired moisture sensor to carry out moisture measurements in wood and building materials up to 2 cm below the surface.

The device also has an infrared thermometer with an integrated laser pointer, a replaceable moisture meter and a device for minimum / maximum alarms when measuring moisture. Up to 20 measured values can be saved in the integrated memory.

Moisture can also be measured with the non-contact sensor without damaging the surface of the material to be measured. The built-in infrared sensor is patented. The air temperature can also be calculated, and moisture-relevant parameters can also be calculated, e.g. B. dew point or vapor pressure. The device is delivered calibrated.

Lieferumfang

  • 9 V battery
  • Operating manual / CD

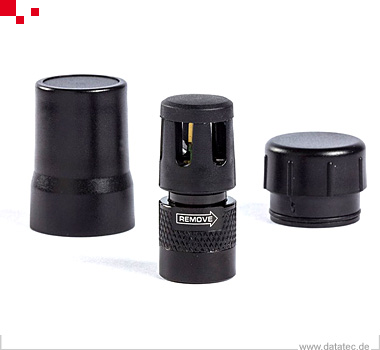

  • MR01 temperature / relative humidity measuring sensor
  • MR02 wired sensor
