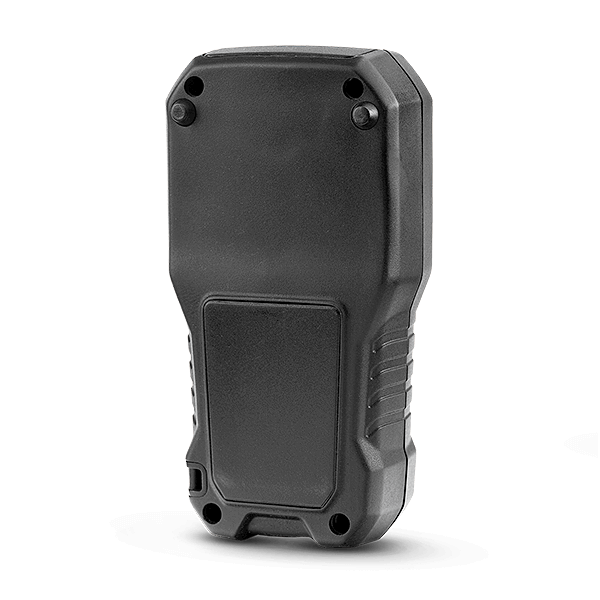

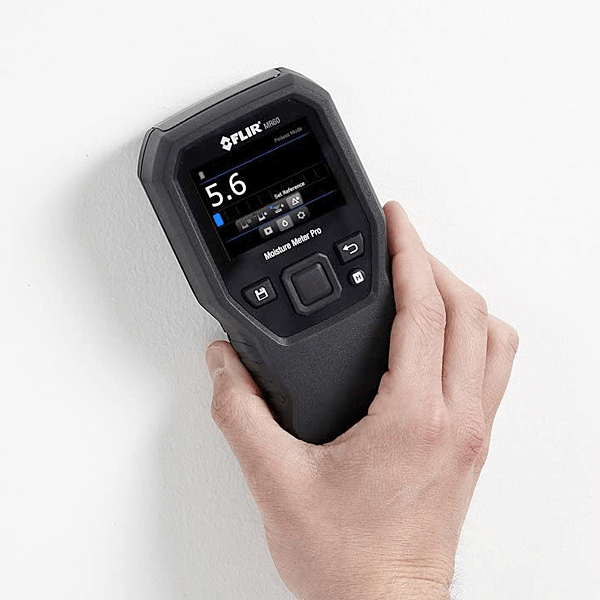

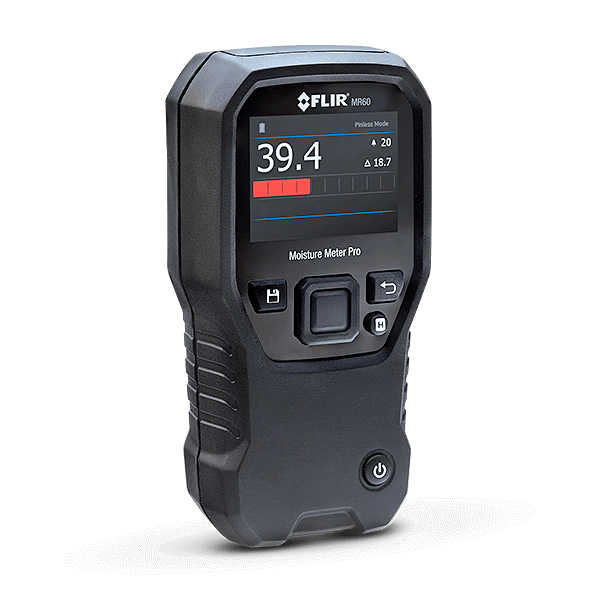

Teledyne FLIR MR60 | Moisture meter contactless and with contact, software FLIR TOOLS

Manufacturer number: MR60

MR60
MR60
MR60
MR60
MR60
MR60
MR60
MR60
1 in stock. Ready to ship in 1 business day

€479.00

or choose one of the following options:
Request a quote Product downloads Product inquiries
Highlights Documents / Downloads Description Scope Related Articles

FLIR MR60 | Compact and robust professional moisture measuring device integrated pinless sensor, with ext. Pen sensor and FLIR Tools software.

  • Moisture measuring range external pen sensor: wood groups 1 - 9: 7% - 30%, building material groups 0% - 20%
  • Moisture measuring range integrated pinless sensor: 0 - 100 relative measurement
  • Moisture measurement depth integrated pinless sensor: Max. 1.9 cm
  • Sampling rate: 10Hz (approx., With both types of measurement)
  • Measurement resolution: 0.1
  • Pinless response time: 100 ms
  • Response time pen mode: 750 ms
  • Display type, size and resolution (W x H): Graphical 2.3 inch QVGA TFT display with 320 x 240 pixels and 64,000 colors
  • File format: saved data CSV file (.csv) with date / time stamp; including measured value and type of measured value
  • File format: saved images Bitmap file (.bmp) with overlaid measurement values
  • Image storage capacity: 9,999 images
  • Internal memory: 4GB
  • Power supply: integrated battery
  • Battery life - continuous operation Max. 18 hours with typical use 4 working weeks
  • Automatic shutdown Programmable: OFF, 1, 5 or 20 minutes
  • Power supply 100 V - 240 V input / 5 V 1 A output
  • Battery 3.7 V / 3,000 mAh Li-ion battery, rechargeable via micro USB connection
  • IP protection class / fall test: IP54 / 3 m

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 0.28 MB

Description

MR60 | Moisture meter contactless and with contact, software FLIR TOOLS

The moisture analyzer is a user-friendly moisture analyzer that is equipped with an integrated penless sensor and external pen sensor with advanced functions.

With its integrated penless sensor and external pen sensor, it offers the flexibility to decide for each order whether you want to take a non-contact non-invasive or a conventional invasive measurement. Select one of eleven material groups for moisture measurement using the external pen sensor, or set a reference point for a non-invasive moisture check.

Easily save screenshots of the measurements with the associated values such as date, time and the settings used as a CSV file. Save files and generate reports with the free FLIR Tools software. Operation does not require any previous or special knowledge.

Lieferumfang

  • MR60, MR02 pen sensor, quick start guide, international charger, warranty card, brochure card
  • Warranty 2 years
