Teledyne FLIR For DM286 | Industrial handheld multimeter with integrated thermal imaging camera

Manufacturer number: DM286

For DM286 | Industrial handheld multimeter with integrated thermal imaging camera, incl. data logger function, 6000 digits, 1,000 V AC/DC, -5 – 300° C.

Product features:

  • IGM (Infrared Guided Measurement) for safer non-contact thermal inspections
  • Unmatched thermal clarity with MSX (Multi-Spectral Dynamic Imaging)
  • Seamless integration with METERLiNK App

Furnishing:

  • Display: 6000 digits
  • Voltage measurement: 1,000 V AC RMS ±(1.0% + 3) // 1,000 V DC ±(0.09%+3)
  • Thermal camera resolution: 160 × 120 px (19,200 pixels)
  • Field of View (FOV): 57° × 44°
  • Refresh Rate: 9Hz
  • Temperature range: -5°C - 300°C
  • Wireless communication: Bluetooth BLE
  • Communication protocol: METERLiNK
  • Weight: 569 g (without batteries)
  • Dimensions (L × W × H): 200mm × 96mm × 56mm
  • Safety: CAT IV-600V, CAT III-1000V
  • Protection class: IP40

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Description

For DM286 | Industrial handheld multimeter with integrated thermal imaging camera

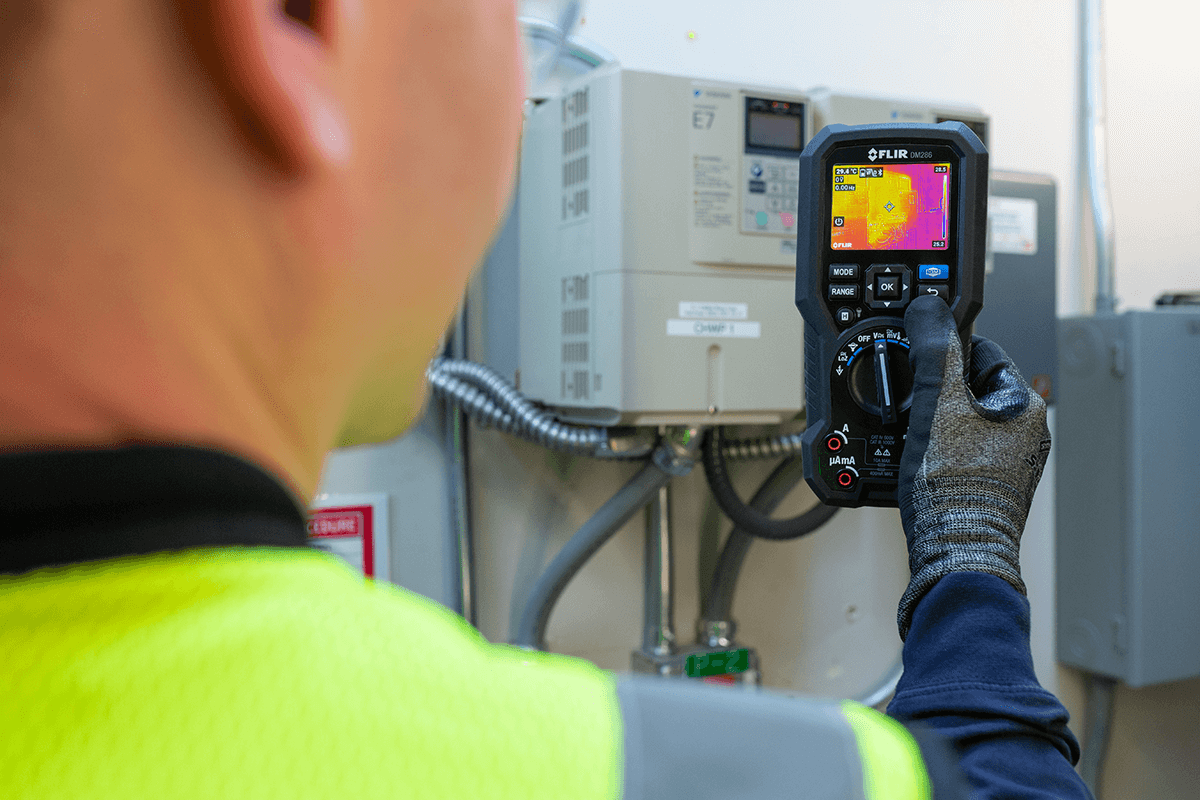

The Flir DM286 is an all-in-one real-time digital multimeter with an integrated thermal imaging camera (-5 - 300° C) and digital camera. Thanks to IGM technology (Infrared Guided Measurement) with a resolution of 160 x 120 pixels, you can identify potentially dangerous problems at an early stage and are always safe.

The Flir DM286 uses proven Flir MSX (Multi-spectral Dynamic Imaging) technology to improve clarity by embedding edge and outline detail in thermal images.

Capture 20,000+ radiometric images, 100 log files, and thermal and visual video clips with this all-in-one handheld multimeter.

The integrated LED work light is ideal for illuminating dimly lit areas. The 2 replaceable lithium polymer batteries ensure all-day operation.

The DM286 is compatible with the new METERLiNK app, which enables features such as log comparisons, reports, user-defined alarm thresholds and the connection of multiple meters. Log your measurement results with this multimeter in the Flir Thermal Studio software.

Lieferumfang

Scope of delivery:

  • DM286 multimeter
  • 1 set of CAT IV 600V test leads
  • 1 Set CAT IV 600V Alligator Clamps
  • 1 × Type A to Micro USB cable
  • 1 × Type K thermocouple
  • 1 × carrying case
  • 1 × FLIR Quick Start Guide
  • 1 × FLIR Warranty Card
  • 2 × TA04 rechargeable batteries
