Teledyne FLIR Teledyne Flir CM57-2 | Flexible TRMS current clamp, 3,000 A AC

Manufacturer number: CM57-2

Teledyne FLIR Teledyne Flir CM57-2
Teledyne FLIR Teledyne Flir CM57-2
Teledyne FLIR Teledyne Flir CM57-2
Teledyne FLIR Teledyne Flir CM57-2
Delivery time upon request

€329.00

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

Teledyne Flir CM57-2 | Flexible TRMS current clamp, 3,000 A AC, 18 inch with METERLiNK app.

Furnishing:

  • 3,000-digit backlit LCD display with multi-function indicators
  • AC Sensitivity: TRMS True RMS
  • AC current measurement ranges: 30 A, 300 A, 3,000 A
  • Basic Measurement Accuracy (of reading): ±3% ±5 digits
  • Maximum Resolution: 0.01A
  • Loop length 45 cm
  • Maximum conductor diameter: 12 cm
  • AC range: 45 Hz - 500 Hz (sine wave)
  • Data logging mode: 20,000 points, 1-minute sample rate
  • Work light: Two white LEDs
  • Max. Bluetooth range: 10 m
  • Power supply: 2 x 1.5 V, type AAA
  • Safety rating: CAT IV 600V, CAT III 1000V
  • Weight: 233g with batteries
  • Dimensions (L × W × H): 330mm × 175mm × 28.45mm

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Overview
pdf | 0.14 MB

Description

Teledyne Flir CM57-2 | Flexible TRMS current clamp, 3,000 A AC

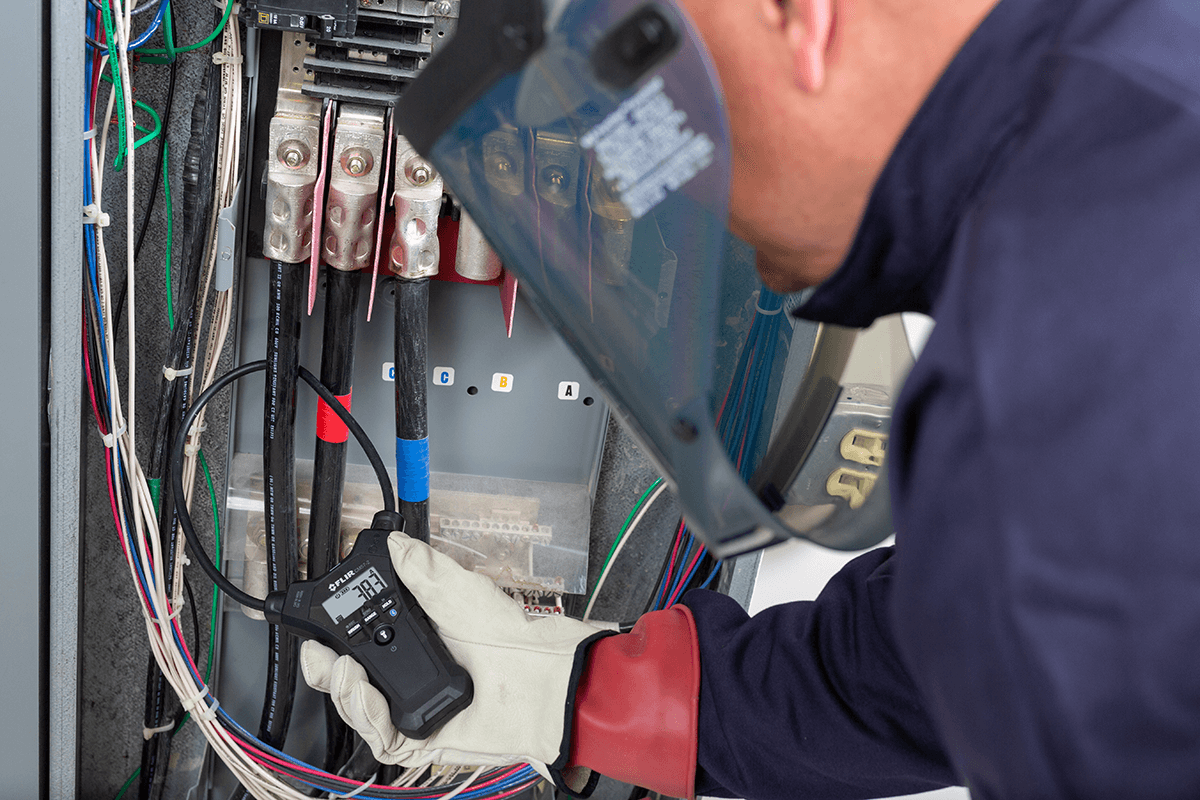

The Teledyne Flir CM57-2 flexible TRMS current clamp is designed to simplify current measurements in hard-to-reach areas that require high measurement accuracy. With the flexible 18-inch coil, measurements can also be carried out in narrow or difficult-to-reach places without any problems.

Thanks to Bluetooth connectivity and the METERLiNK app, you can carry out your measurements from a safe distance (up to 10 m). Two LED work lights make it easier to work in dimly lit areas for faster and safer inspections.

The CM57-2 is compatible with the new Teledyne Flir METERLiNK app, which offers features such as log comparisons, reports, custom alarm thresholds and multiple meter connectivity.
