Teledyne FLIR CM275 | AC / DC current clamp, integr. 120 x 160 px thermal image detector

Name: CM275 | AC / DC current clamp, integr. 120 x 160 px thermal image detector
Brand: Teledyne FLIR
SKU: CM275
Price: 819.0 EUR
Availability: InStock

Manufacturer number: CM275

1 in stock. Ready to ship in 1 business day

€819.00

or choose one of the following options:

Request a quote Product inquiries

FLIR CM275 | AC / DC multiple measuring clamp: current clamp + multimeter + integrated thermal imaging camera with a temperature measuring range from -25 to 150 ° C (19,200 temperature measuring points).

Temperature measuring points: 19,200 pixels (160 × 120)
Temperature measuring range: -25 ° C to 150 ° C
Built-in laser pointer
Measuring functions multimeter / current clamp : AC / DC voltage up to 1000V, LoZ AC / DC volt, AC / DC current up to 600A, inrush AC current, frequency, resistance, capacitance, diode
True RMS volt and current measurement
Auto-ranging and manual range adjustment
Display: 6,000 digits 2.4 inch color TFT
Pliers opening: 35mm
Safety protection class: CAT IV 600V, CAT III 1000V
Dimensions: W 89 mm × H 241 mm x D 43 mm
Weight: 426 g with batteries
Battery operated with 4 x AAA batteries
Warranty: 10 years on product and detector

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Accuracy current measurement AC/DC:	±2 % / ±2 %
Accuracy voltage measurement AC/DC:	±1 % / ±1 %
Article number:	CM275
Current measuring range AC/DC:	600A / 600A
Dimensions (L x W x H) (mm):	255 x 97 x 48,5
Diode test / continuity test:	Yes / Yes
Direction of rotation:	No
Enclosure (mm):	35
Frequency measuring range:	10 kHz
Hold:	No
Measurement method:	TRMS
Min. / Max. Measurement:	Yes / Yes
Model:	FLIR CM275
Power factor:	Nein
Power measurement (active / apparent / reactive):	No / No / No
Resistance measuring range:	6 kΩ
Temperature measuring range:	-10 °C - +150 °C
Voltage measuring range AC/DC:	1000 V / 1000 V
Weight (kg):	0.46

Documents & Downloads

Datasheet

pdf | 0.17 MB

Description

CM275 | AC / DC current clamp, integr. 120 x 160 px thermal image detector

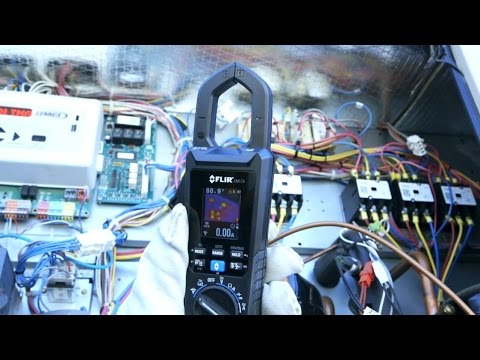

Multiple measuring clamp / multimeter with integrated thermal imaging technology: The FLIR CM275 is the only multiple measuring clamp that helps you to find problems that you cannot recognize with a conventional multiple measuring clamp. With its infrared-controlled IGM (Infrared Guided Measurement) technology and its integrated FLIR Lepton® thermal imaging sensor, the CM275 guides you visually to the point of the potential electrical problem so that you can reliably identify dangerous and unknown problem areas.

Detect moisture and temperature problems faster: The CM275 is a complete, user-friendly solution that allows you to take precise measurements while taking advantage of thermal imaging technology. This allows you to visually identify electrical problems without having to touch junction boxes, cabinets, or a tangle of cables and wires that could pose a potential safety hazard. No matter what obstacles are in your way - the Infrared Guided Measurement (IGM) technology quickly and reliably points out the respective problem.

Solve complex electrical problems : The intelligent design of the CM275 includes narrow pliers and an integrated work light so that you can easily reach measuring points that are difficult to access or poorly lit. Thanks to their extended electrical functions, you can quickly receive all measured values including TRMS, LoZ, VFD mode, starting current and intelligent diode with deactivation function. In addition, the CM275 can be expanded to 3,000 A AC with the FLIR FLEX accessories.

The FLIR CM275 also supports wireless data connections to the FLIR InSite ™ workflow management app.

Lieferumfang

Scope of delivery with 4 batteries, premium silicone test leads, quick start instructions, operating instructions (CD), soft carrying case
