Teledyne FLIR A50 R&D Kit | Thermal imaging camera, 464 × 348 px, including 51° lens (89851-0201)

Name: A50 R&D Kit | Thermal imaging camera, 464 × 348 px, including 51° lens (89851-0201)
Brand: Teledyne FLIR
SKU: 89851-0201
Price: 6799.0 EUR
Availability: OutOfStock

Manufacturer number: 89851-0201

Delivery time upon request

€6,799.00

or choose one of the following options:

Product inquiries

FLIR 89851-0201 | Thermal imaging camera A50 R&D kit (R&D), 464 × 348 px, incl. 51 ° lens.

Digital inputs: 2x opto-isolated, Vin (low) = 0-1.5 V, Vin (high) = 3–25 V
Digital outputs: 3x opto-isolated, 0–48 V DC, max. 350 mA; Solid-state optorelay; 1x as error output (NC)
Encoding: Video stream: H.264, MPEG4 or MJPEG [BR] Radiometric streaming: Compressed JPEG-LS, FLIR radiometric
Ethernet interface: Wired, WLAN (optional)
Frame rate: 30 Hz
Thermal sensitivity / NETD: <35 mK
Accuracy: ± 2 ° C or ± 2% of the reading, for an ambient temperature of 15 ° C – 35 ° C and an object temperature above 0 ° C
IR resolution: 464 × 348 pixels
Object temperature range: –20 ° C - 175 ° C / 175 ° C - 1,000 ° C
Housing material: aluminum
Base mounting: 4 x M2.5 directly in the camera or 4x 10-32 UNF on the lower cooling plate
Dimensions (L × W × H): 107 × 67 × 57 mm
Weight: 519 g without lower cooling plate

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Article number:	89851-0201
Dimensions (L x W x H) (mm):	107 x 67 x 57
Focus:	manually
Frame rate (Hz):	30
Image enhancement technology:	No
Image memory:	No
Integrated viewfinder:	No
Interchangeable lenses:	No
Interfaces:	Ethernet
Max. field of view (FOV):	51° x 39°
Model:	A50 51° R&D Kit
Resolution in pixels:	464 x 348
Smallest resolution IFOV (mrad):	2.1
Temperature measuring points:	161472
Temperature measuring range:	-20°C to +1000°C
Thermal sensitivity (mK):	35
Warranty (years):	2
Weight (kg):	0.56

Description

A50 R&D Kit | Thermal imaging camera, 464 × 348 px, including 51° lens (89851-0201)

The FLIR A50 thermal imaging cameras with smart sensors are ideal for users who want integrated, in-camera analysis and alarm functions for condition monitoring and early fire detection. The lightweight, IP66-certified camera with M8 / 12 connectors can be easily installed anywhere with multiple mounting options.

With options for Wi-Fi, an integrated visual camera, and ONVIF S compatibility, the FLIR A50 cameras are a flexible, configurable solution that meets the unique needs of automation customers in a variety of industries.

The integration of intelligent thermal sensors that communicate with industrial standard protocols and video management systems including HMI, SCADA and optional ONVIF S compatibility is quick and secure.

When used as a system component for cloud and Industrial Internet of Things (IIoT) solutions, the A50 cameras can help companies protect systems, improve security, maximize uptime and minimize maintenance costs.

The thermal imagers provide you with high-quality images and quick access to thermal parameters with the large, non-contact temperature sensor, which offers a resolution of up to 464 × 348 pixels and an accuracy of ± 2 ° C.

Alternate products (6 products )

Teledyne FLIR A50 R&D Kit

Thermal imaging camera, 464 × 348 px, including 29° lens (89829-0201)

Delivery time upon request

€6,799.00

Teledyne FLIR A50 R&D Kit

Thermal imaging camera, 464 × 348 px, including 95° lens (89895-0201)

Delivery time upon request

€6,799.00

Teledyne FLIR A70 R&D Kit

Thermal imaging camera, 640 × 480 px, including 29° lens (89929-0201)

Delivery time upon request

€8,799.00

Teledyne FLIR A70 R&D Kit

Thermal imaging camera, 640 × 480 px, including 51° lens (89951-0201)

Delivery time upon request

€8,799.00

Teledyne FLIR A70 R&D Kit

Thermal imaging camera, 640 × 480 px, including 95° lens (89995-0201)

Delivery time upon request

€8,799.00

dataTec ITC_KAT2_241209

Seminar: itc certification course category 2 according to ISO 18436-7 in Frankfurt on December 9th - 13th, 2024

Delivery time upon request

€2,310.00

Recommendations (4 products )

dataTec TH_RT_250521

Basic seminar: Thermography / thermal imaging technology on May 21, 2025 in Reutlingen

Delivery time upon request

€549.00

dataTec TH_RT_251023

Basic seminar: Thermography / thermal imaging technology on February 23, 2025 in Reutlingen

Delivery time upon request

€549.00

dataTec TH_RT_251203

Basic seminar: Thermography / thermal imaging technology on December 3rd, 2025 in Reutlingen

Delivery time upon request

€549.00

dataTec TH_RT_250716

Basic seminar: Thermography / thermal imaging technology on July 16, 2025 in Reutlingen

Delivery time upon request

€549.00

About the Manufacturer

Teledyne FLIR

Teledyne FLIR is the world's largest manufacturer of thermal imaging cameras and thermographic instruments. Teledyne FLIR covers an incredibly wide range and has the optimal thermal imaging camera for every application, whether construction, research and development or industrial manufacturing. Since 2010 dataTec is Platinum Distributor of FLIR and, of course, now of Teledyne FLIR.

Teledyne FLIR A50 R&D Kit | Thermal imaging camera, 464 × 348 px, including 51° lens (89851-0201)

FLIR 89851-0201 | Thermal imaging camera A50 R&D kit (R&D), 464 × 348 px, incl. 51 ° lens.

Technical Data

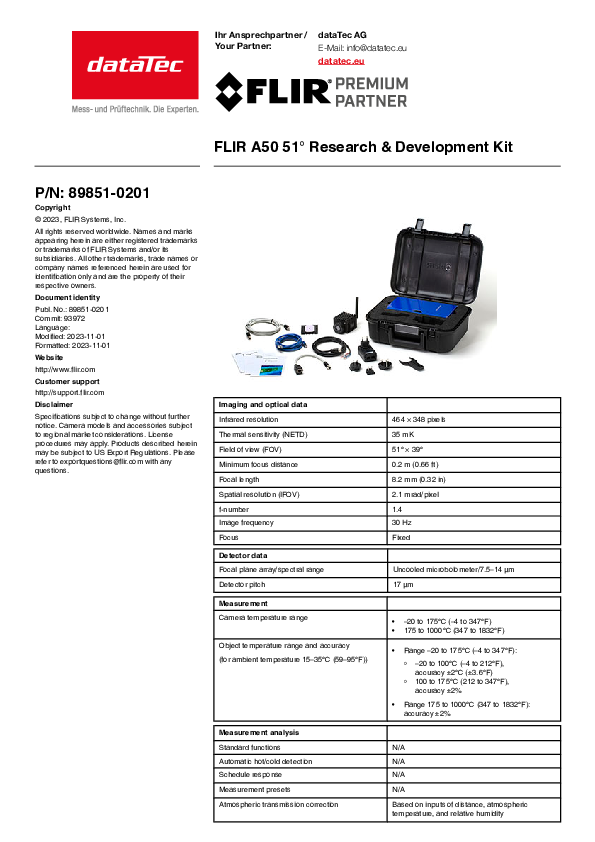

Documents & Downloads
