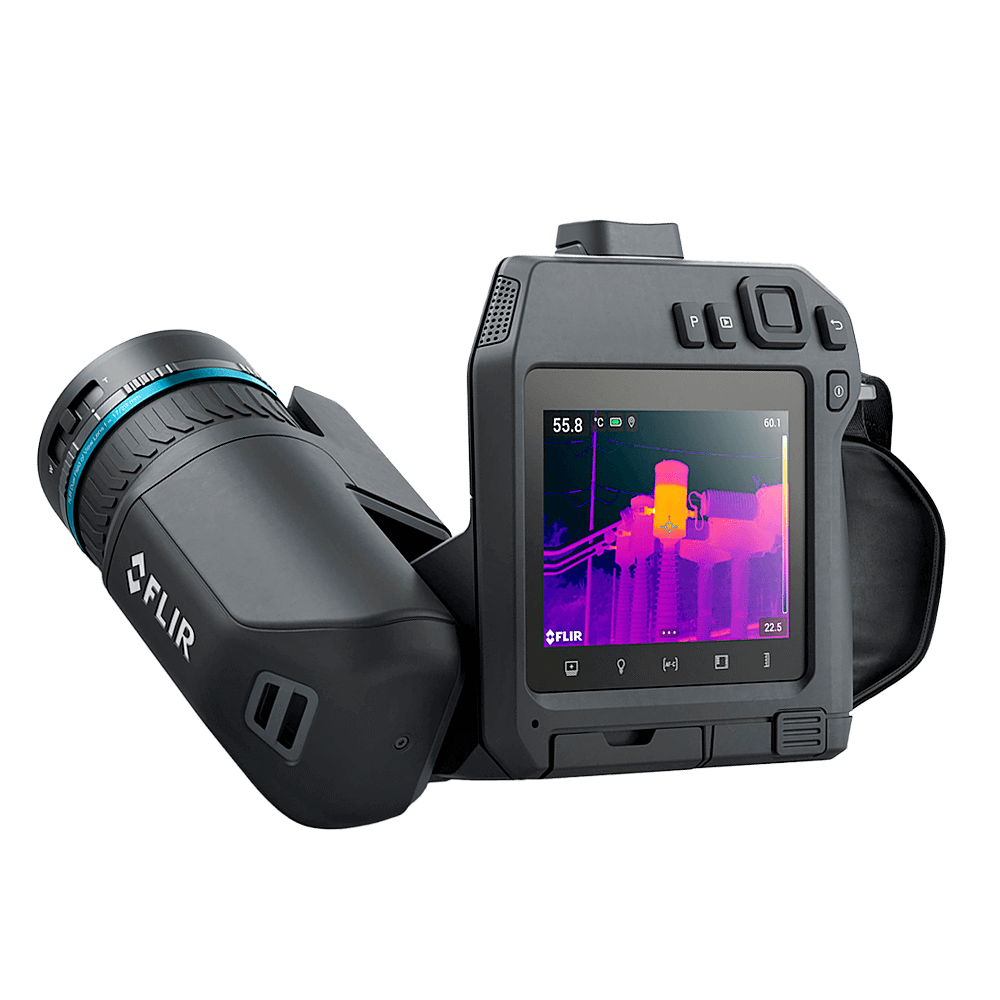

Teledyne FLIR T840 | Thermal imaging camera 464x348px, 24°/42° DUAL FOV, 30Hz, -20°C to +1500°C, 50mK

Manufacturer number: 82512-0201

Teledyne FLIR T840
Delivery time upon request

On Request

or choose one of the following options:
Product inquiries
Highlights Description Related Articles

Teledyne FLIR T840 | Thermal imaging camera 464x348px, 24°/42° DUAL FOV, 30Hz, -20°C to +1500°C, 50mK

  • Display: 4 inch touchscreen LCD, 640 × 480 pixels, automatic rotation function
  • IR resolution: 464 × 348 (161,472 pixels)
  • Laser pointer: Yes
  • Spectral range: 7.5 - 14.0 µm
  • Digital zoom: 1x to 6x stepless
  • Lens detection: Automatic
  • Minimum focus distance: 42° lens - 0.15 m 24° lens - 0.15 m; optional macro mode 14° lens - 1.0m 6° lens - 5.0m
  • UltraMax resolution: 645,888 effective pixels
  • Accuracy: ±2 °C or ±2% of reading
  • Object temperature range: -20 °C to 120 °C | 0 °C to 650 °C | 300°C to 1,500°C
  • Battery Life: Approximately 4 hours of typical use
  • Interfaces: USB 2.0, Bluetooth, WLAN
  • Storage media: Removable SD memory card
  • Video output: DisplayPort over USB Type-C
  • METERLINK: Yes
  • Weight and dimensions (without lens): 1.3 kg, 140 mm x 201 mm x 84 mm

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

T840 | Thermal imaging camera 464x348px, 24°/42° DUAL FOV, 30Hz, -20°C to +1500°C, 50mK

The Flir T840 makes indoor and outdoor monitoring of electrical systems, the identification of defective components and many other thermal tests noticeably easier and faster. Carry out tests, inspections and maintenance quickly, easily, flexibly and without excessive physical strain. The bright, 4-inch color LCD display, including a built-in viewfinder, allows you to carry out inspections even in the most difficult lighting conditions. Thanks to the high resolution of 464 x 348 pixels, you can carry out inspections from a safe distance. Of course, the Flir T840 is equipped with FLIR Vision Processing™, MSX® and UltraMax®, providing you with an optimized resolution of up to 645,888 pixels.

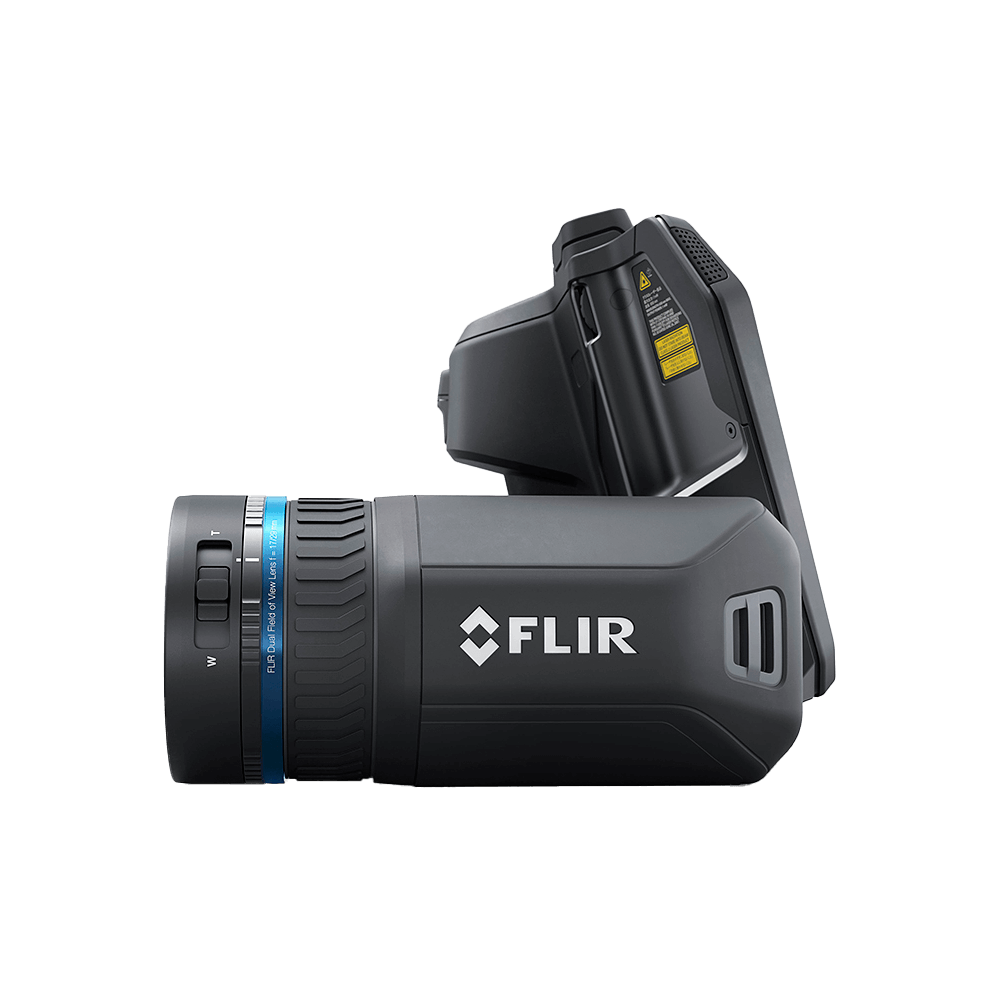

The Flir T 840 has a particularly ergonomic design and a 180° swivel optics unit. This allows you to identify thermal irregularities, even in particularly hard-to-reach places, in no time at all.

This variant includes the 24°, 42° dual FOV lens. This innovative dual lens allows you to switch between views without having to change lenses.

Wireless Wi-Fi streaming to the FLIR Tools app enables easy real-time inspection of problem areas. In addition, the camera's built-in GPS sensor automatically tags image files with associated geolocation data for easy identification and accurate documentation.
