Teledyne FLIR T1020 | HD thermal imaging camera, 1,024 x 768 px, 45 ° optics (725010103)

Name: T1020 | HD thermal imaging camera, 1,024 x 768 px, 45 ° optics (725010103)
Brand: Teledyne FLIR
SKU: 725010103
Price: 41099.0 EUR
Availability: OutOfStock

Manufacturer number: 725010103

Delivery time upon request

€41,099.00

or choose one of the following options:

Product inquiries Request education-price

Flir T1020 / thermal imaging camera with 786,432 temperature measuring points (1,024 x 768 pixels), with 45 ° wide-angle interchangeable lens, a measuring range from -40 ° C to + 2,000 ° C, a thermal sensitivity <0.02 ° C. With Multi Spectral Dynamic Imaging (MSX) and the image optimization technology UltraMax to quadruple the number of pixels to up to 3.1 megapixels for even more precision and depth of field.

The most ergonomic camera with the highest real resolution (1,024 x 768 pixels)
Temperature measuring points 786.432
Accuracy ± 2 ° C / ± 2% (partly ± 1 ° C / ± 1%)
Thermal sensitivity <0.02 ° C (<20 mK NETD)
MSX: Provides visible details over the thermal image with full resolution - markings and positions can be recognized precisely
UltraMax: Unique image optimization technology for a 4 times higher image resolution (allows the measurement of smaller objects, increases the resolution and reduces noise
Measuring instruments: 10 spot meters, 5 + 5 areas (fields and circles) with max./min./ average
Emissivity correction: Variable from 0.01 to 1.0 or by selection from the material list
Measurement correction: emissivity, reflected temperature, relative humidity, air temperature, object distance, external IR window compensation
Color palettes: iron, rainbow, rainbow HC, white hot, black hot, arctic, lava
Configurable image overlay functions
Traditional level / span
Reset the frame counter
4 different programmable buttons ensure an effective way of working
Image display / display 8.9 cm (3.5 inch) color LCD monitor with touchscreen
Optional interchangeable lenses 50 μm, 12 ° and 28 °
Ultrasonic focus drive enables faster autofocusing, as well as improved manual focusing
Built-in digital camera with 5 megapixels
GPS, compass
Wi-Fi, Bluetooth, HDMI
Laser, eyepiece
2.5 hours of battery life
Storage on the SD card in the camera lossless compression (CSQ format) 1,024 x 768 with 30 Hz
USB data streaming to the PC at 30 Hz via Tools + and ResearchIR
Magnesium housing, protection class IP54, 25 g shock, 2 g vibration
Integrated tripod adapter
Dimensions: approx. W143 x H195 x D95 mm
Weight: approx.1.9 kg
Warranty 2 years on the camera and 10 years on the detector

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Article number:	725010103
Dimensions (L x W x H) (mm):	167 x 205 x 188
Focus:	automobile
Frame rate (Hz):	30
Image enhancement technology:	UltraMax, MSX
Image memory:	SD card
Integrated viewfinder:	Yes
Interchangeable lenses:	Yes
Interfaces:	USB, HDMI
Max. field of view (FOV):	45° x 34°
Model:	T1020 45°
Resolution in pixels:	1024 x 768
Smallest resolution IFOV (mrad):	0.8
Temperature measuring points:	786432
Temperature measuring range:	-40° to +2000°C
Thermal sensitivity (mK):	20
Warranty (years):	2
Weight (kg):	2.1

Description

T1020 | HD thermal imaging camera, 1,024 x 768 px, 45 ° optics (725010103)

Megapixel thermal imaging camera with the highest geometric resolution of 1,024 x 768 pixels for professional thermographers and scientists.

This real resolution reveals even more details and opens up new applications in the areas of research, development, production, quality assurance, energy supply and also in building technology. The rubberized surface and the new lens technology bring outstanding ergonomic advantages for the user.

Lieferumfang

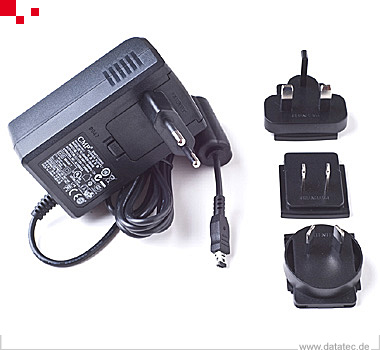

Thermal imaging camera (infrared camera) with lens, batteries (2 pcs.), Battery charger, HDMI-to-HDMI cable, hard case, Bluetooth headset, SD memory card, large eyecup, lens cover, shoulder strap, power supply (including multiple plugs), USB cable (Standard-A to Mini-B), calibration certificate, FLIR Tools + license card, documentation on CD-ROM and in printed form.
