Softing 228070 | WireXpert WX4500 LAN certifier, 2 handheld devices Cat.7 / 8 to 2500MHz

Manufacturer number: 228070

Softing 228070
Softing 228070
Softing 228070
Softing 228070
Softing 228070
Softing 228070
Softing 228070
Softing 228070
Softing 228070
Softing 228070
Softing 228070
Ready to ship in 5 to 10 business days

€6,950.00

% €9,950.00 (30.15% saved)

or choose one of the following options:
Product downloads Product inquiries Request education-price % Additional offers for this product
Highlights Documents / Downloads Description Scope Related Articles

Softing IT Networks WireXpert WX4500 LAN copper cable certifier - Class D, E, EA, F, FA and higher.

  • First on the market with approval for Bel Stewart CAT 8.2 / Class II
  • First certifier for certifications up to 2,500 MHz with complete support of the new CAT 8 draft standard and Class I & II from the draft ISO / IEC
  • State-of-the-art cable certification for all standards: Class D / E / EA / F / FA, CAT 5 / 5e / 6 / 6A and the new draft standard CAT 8 and Class I & II from the draft from ISO / IEC
  • First certifier for certifications up to 2500 MHz with complete support of the new CAT 8 draft standard
  • Fastest autotest with less than 9 seconds
  • Independent ETL verification to confirm measurement accuracy
  • Meets and exceeds the requirements of ISO Level V, IV and TIA Level IIIe accuracy requirements
  • Support from more than 20 cable manufacturers worldwide
  • Can be upgraded in the field with many options such as B. Patch cord tests, Industrial Ethernet, Class FA, Coax, LWL, MPO
  • Supports extended certification for fiber optics at 850/1300 nm (multimode) and 1310/1550 nm single mode
  • First certifier for MPO fiber optic certifications in data centers
  • Advanced cabling reports and documentation
  • The only certifier that meets the requirements of data centers, office cabling and Industrial Ethernet
  • Multilingual menu navigation (also German)
  • Simple operation using the LCD touch screen
  • Data storage for over 7000 test results
  • Professional documentation generator
  • Impact-resistant housing, drop and shockproof design
  • Dimensions: 232 mm x 126 mm x 86.7 mm
  • Weight: approx.1.4 kg
  • Replaceable / rechargeable Li-ion batteries for up to 8 hours of operation
  • Measuring adapter connection
  • Ethernet port, RJ-45, for remote control
  • USB host and device connections
  • Headset: 3.5 mm stereo jack

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Brochure
pdf | 1.10 MB

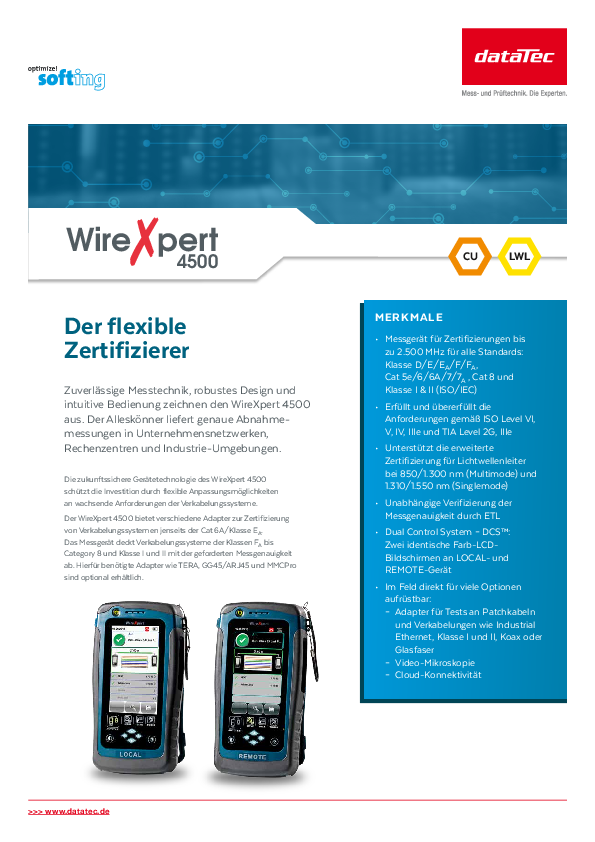

Datasheet
pdf | 0.61 MB

Description

228070 | WireXpert WX4500 LAN certifier, 2 handheld devices Cat.7 / 8 to 2500MHz

State-of-the-art cable certification for all standards: Class C / D / E / EA / F / FA, CAT 5 / 5e / 6 / 6A and the new draft standard CAT 8, Class I & II. In addition, the WireXpert 4500 from Softing IT Networks is the first to receive Approval for Bel Stewart CAT 8.2 / Class II on the market . The WireXpert is the first cable certifier that makes it possible to certify cabling systems with the highest demands on the company network or a data center. Extremely fast measurement technology and the intuitive operation of the WireXpert enable the network installer to carry out precise and quick acceptance measurements and improve project productivity.

With the option of certifying class FA installations and CAT8 copper cables, as well as fiber optic cabling with an MPO connector system or general singlemode and multimode cabling, the WireXpert is the only one in its class that is already ready to support data rates of 40G and more.

Easy handling and robust design
The WireXpert has a color LCD screen with an intuitive user interface and clearly visible display for demanding use in an industrial environment. With the innovative Dual Control System (DCSTM), which consists of two identical devices, the main and the remote device, it is easy to carry out the measurement series. Regardless of whether you work in pairs or alone, the travel times for the measurement are considerably reduced.

Lieferumfang

Two identical handsets with Dual Control System - DCSTM including Li-ion battery, power pack, carrying case, calibration certificate and evaluation software ReportXpert, class EA channel adapter (1 pair), class EA permanent link adapter set (1 pair), headset (1 pair ), USB stick
