Softing 226737 | NetXpert XG2-1G, 1 Gbit / s network / cabling qualifier for copper and optionally fiber optics

Name: 226737 | NetXpert XG2-1G, 1 Gbit / s network / cabling qualifier for copper and optionally fiber optics
Brand: Softing
SKU: 226737
Price: 2450.0 EUR
Availability: InStock

Manufacturer number: 226737

1 in stock. Ready to ship in 1 business day

€2,450.00

or choose one of the following options:

Request a quote Product inquiries

Softing 226737 | XG2-1G network / cabling qualifier up to 1 Gbit / s.

Copper interface: 1 x Cat 6A RJ45, exchangeable
Fiber optic interface: 2 x SFP slots, 1 - 10 Gbit / s; (Please order SFP modules separately!)
Length measurement technology: TDR (Time Domain Reflectometry) and capacitive
Wiring test and ID: up to 305 m // split-pair detection: 1 m to 305 m // length measurement: 0 to 457 m, ± (5% + 30 cm) // distance to fault location (short circuit): 0 to 200 m ± (5% + 1 m) // Can be used with 8 continuity test and up to 24 ID remote units (RJ45) (ID remote units only)
Power over Ethernet (PoE): Tests for IEEE 802.3af PoE (type 1, max 15.4 W), IEEE 802.3at PoE + (type 2, 30 W) and 802.3bt PoE ++ (type 4, 90W)
Max. Voltage: Maximum voltage that can be applied to any two pins of the test inputs without damaging the tester: RJ-45: 60 VDC or 50 VAC
Storage capacity: Stores an unlimited number of cable or network tests per project with user-defined names
Tone Generator: Tone frequencies: 730 Hz and 11,440 Hz
Languages: English, German, French, Spanish, Italian
Battery: Li-Ion, 7.2 VDC, 6.2 Ah / 5 hours (typical)
External power supply: 12 VDC
Permissible temperatures: In operation: -10 ° to 60 ° C // Storage: -30 ° to 70 ° C
Permissible humidity: 10% to 90%, non-condensing
Housing: injection molded plastic
Screen: 7 ̋ TFT-LCD color display with capacitive touchscreen, 1024 x 600 resolution (WSVGA)
Dimensions: 245 x 177 x 73 mm (main unit) // 130 x 177 x 55 mm (active remote)
Weight with batteries: 1.2 kg (main unit) // 0.6 kg (Active Remote)

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

226737 | NetXpert XG2-1G, 1 Gbit / s network / cabling qualifier for copper and optionally fiber optics

High data transmission rates of up to 10 Gbit / s Ethernet and new Power-over-Ethernet applications up to 90 W lead to completely new challenges in the area of structured cabling.

The cable qualifier Softing NetXpert XG2 offers, depending on the variant, extensive active and passive network tests up to 10 Gbit / s for qualification, commissioning and troubleshooting on copper and fiber optic cabling.

The 7-inch touch display guarantees easy operation and a clear presentation of the results.

At the same time, the NetXpert XG2 offers the highest reliability of the results through the unique combination of up to 4 different test methods for the evaluation of a data link. Thanks to this combination, you can always make reliable text statements.

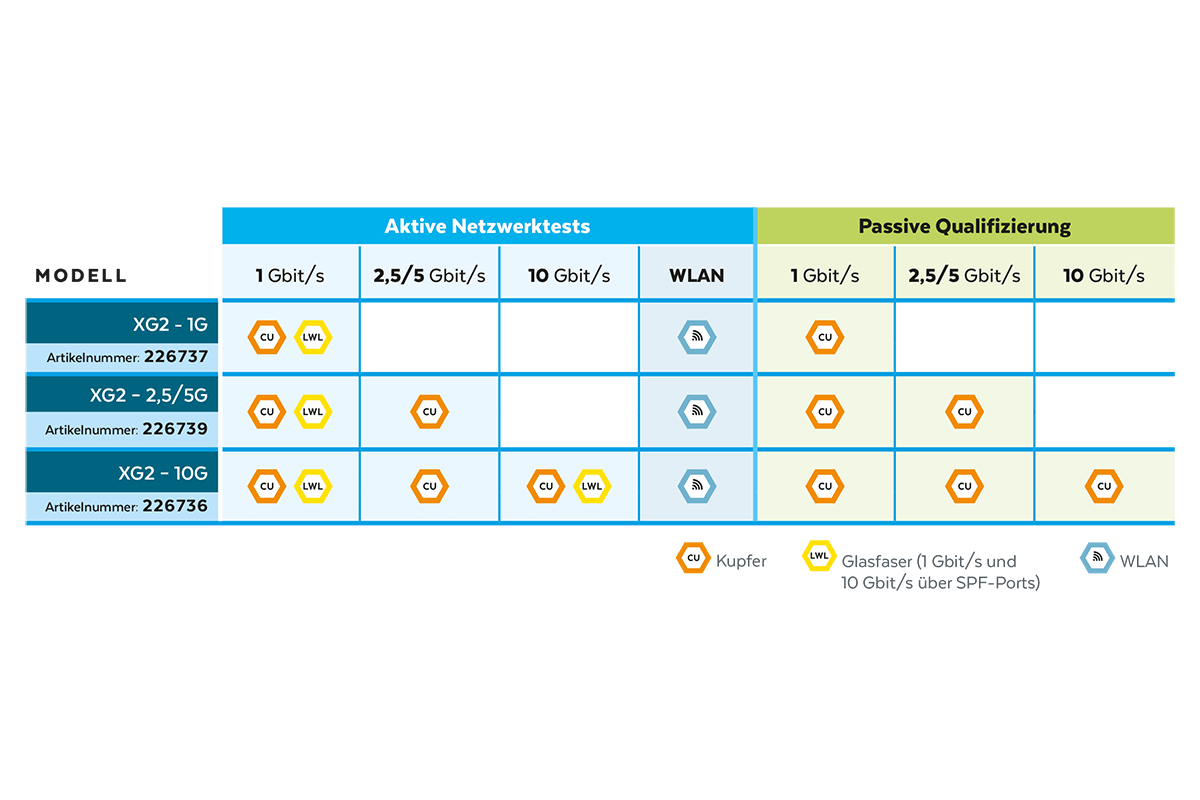

The NetXpert XG2 cable certifier is available in versions with 1 Gbit / s (item no.226737), 2.5 / 5 Gbit / s (item no.226739) and with 10 Gbit / s (item no. No. 226736) .

Whether troubleshooting, maintenance or servicing, the NetXpert XG2 performance tester is the ideal device for all network testing applications for installers, system integrators and industry.

Lieferumfang

NetXpert XG2 main unit
Active remote
Power supplies
RJ45 Cat 6A test cable, shielded
Hard case
quick start Guide
