Show all categories PXI Modules Back

PXI Modules

NI (National Instruments) PXI modules interface to bus standards and can be used to acquire data and images, trigger and synchronize measurement devices, generate and route signals, control motion, and perform a variety of measurements.

Filter
390 products
781053-01
NI
781053-01
Multifunction I / O module PXIe-6356 with 1.25 MS / s per channel (8 AI with simultaneous sampling, 24 DIO, 2 AO)
  • Measurements per second/sampling rate (MS/s): 1.25
  • Number of bidirectional digital channels: 24
  • With case: Yes
  • Number of analogue output channels: 2
  • Number of counters/timers: 4
  • Voltage measuring range of the analogue input (V): -5 V bis 5 V, -10 V bis 10 V, -2 V bis 2 V, -1 V bis 1 V
  • Max. Number of differential analogue input channels: 8
  • Max. Update rate (MS/s): 3.3
€7,280.00
Delivery time upon request
783800-01
NI
783800-01
PXIe-6738, 32 ANALOGUE OUTPUTS, 16 BIT
  • With case: Yes
  • Number of counters/timers: 4
  • Max. Update rate (MS/s): 1
  • Max. Output current (mA): 10
  • Number of analogue output channels: 32
€3,340.00
2 in stock. Ready to ship in 1 business day
783129-01
NI
783129-01
PXIe-4080, performance-optimized digital multimeter with 6 1/2 digits and digitizer up to 300 V.
  • With case: Yes
  • Measurements per second/sampling rate (MS/s): 1.8
  • min. Measuring range DC (mV): -300000
  • max. Measuring range DC (V): 300
  • Number of positions: 6.5
€4,320.00
2 in stock. Ready to ship in 1 business day
867113-02
NI
867113-02
PXI LCR / SMU Bundle PXIe-LCR5100, expandable, with PXI Chassis PXIe-1083 & LCR Meter / SMU PXIe-4190, 2 MHz, 40 V
  • Number of slots: 0
€21,700.00
Delivery time upon request
52912
Chroma
52912
Programmable PXI DC power supply, without A529102 power adapter
€1,800.00
Delivery time upon request
780339-01
NI
780339-01
Multifunctional RIO module of the R series PXI-7851R, Virtex-5 LX30, 8 AI, 8 AO, 96 DIO, 750 kS / s
  • With case: Yes
  • Max. Update rate (MS/s): 1
  • Number of analogue input channels: 8
  • Logic level of the digital I/O: 3.3 V, 5 V
  • Voltage measuring range of the analogue input (V): -10 V bis 10 V
  • Number of bidirectional digital channels: 96
  • Measurements per second/sampling rate (MS/s): 0.75
  • Logic level and range: 3.3 V, 5 V
  • Number of analogue output channels: 8
€10,200.00
Delivery time upon request
867012-02
NI
867012-02
PXI oscilloscope bundle PXIe-SCP5102, expandable, with PXI chassis PXIe-1083 & oscilloscope PXIe-5111, 2 channels, 350 MHz
  • Number of slots: 0
€13,100.00
Delivery time upon request
785769-11
NI
785769-11
PXIe-5111 PXI Oscilloscope with CableSense Technology, 350 MHz, 8 bits, 3 GS/s, 2 channels
  • With case: Yes
  • Bandwidth (MHz): 350
  • Voltage measuring range of the analogue input (V): -20 V bis 20 V
  • Number of analogue input channels: 2
  • Number of channels: 2
  • Measurements per second/sampling rate (MS/s): 3000
€9,720.00
Delivery time upon request
783531-01
NI
783531-01
NI PXIe-4339, bridge and voltage input module, (channels, 24 bit, 25.6 kS / s
  • With case: Yes
  • Max. Number of differential analogue input channels: 8
  • Measurements per second/sampling rate (MS/s): 0.0256
  • Voltage measuring range of the analogue input (V): -10 V bis 10 V, -0.1 V bis 0.1 V, -10 mV/V bis 10 mV/V, -200 mV/V bis 200 mV/V, -80 mV/V bis 80 mV/V, -4 V bis 4 V, -20 mV/V bis 20 mV/V, -50 mV/V bis 50 mV/V, -0.5 V bis 0.5 V, -0.2 V bis 0.2 V, -40 mV/V bis 40 mV/V, -1 V bis 1 V
€6,540.00
Delivery time upon request
780993-01
NI
780993-01
NI PXIe-6545, (200 MHz, 32 digital I / O channels, 1.2, 1.5, 1.8, 2.5, 3.3 V, 1 Mbit per channel)
  • With case: Yes
  • Number of bidirectional digital channels: 32
  • Logic level and range: 3.3 V, 1.5 V, 1.2 V, 2.5 V, 1.8 V
  • Logic level of the digital I/O: 3.3 V, 1.5 V, 1.2 V, 2.5 V, 1.8 V
€17,000.00
Delivery time upon request
782622-15
NI
782622-15
PXIe-5162 PXI Oscilloscope with CableSense Technology, 1.5 GHz, 10 bits, 5 GS/s, 2 channels
  • With case: Yes
  • Number of channels: 2
  • Bandwidth (MHz): 1500
  • Measurements per second/sampling rate (MS/s): 5000
  • Voltage measuring range of the analogue input (V): -25 V bis 25 V
€35,900.00
Delivery time upon request
779313-01
NI
779313-01
NI PXI-6521, 8 channel-wise isolated digital inputs, 8 outputs for mechanical relays, NI-DAQ
  • With case: Yes
  • Logic level and range: 0.0V - 150.0V, 24 V, -30.0V - 30.0V
  • Number of digital inputs: 8
  • Number of digital outputs: 8
  • Logic level of the digital I/O: 24 V
€1,200.00
2 in stock. Ready to ship in 1 business day
782621-01
NI
782621-01
PXIe-5160 PXI Oscilloscope, 500 MHz, 10 bits, 2.5 GS/s, 2 channels, 64 MB
  • With case: Yes
  • Number of channels: 2
  • Voltage measuring range of the analogue input (V): -25 V bis 25 V
  • Measurements per second/sampling rate (MS/s): 2500
  • Bandwidth (MHz): 500
€17,000.00
Delivery time upon request
783087-02
NI
783087-02
PXIe-4464, dynamic signal analyzer, 24 bit, mini XLR connector
  • With case: Yes
  • Measurements per second/sampling rate (MS/s): 0.2048
  • Max. Number of differential analogue input channels: 4
€7,590.00
Delivery time upon request
782621-03
NI
782621-03
PXIe-5160 PXI Oscilloscope, 500 MHz, 10 bits, 2.5 GS/s, 4 Channel, 2 GB
  • With case: Yes
  • Voltage measuring range of the analogue input (V): -25 V bis 25 V
  • Measurements per second/sampling rate (MS/s): 2500
  • Bandwidth (MHz): 500
  • Number of channels: 4
€27,600.00
Delivery time upon request
780592-02
NI
780592-02
NI PCIe-8431/16, Serial RS485/RS422 interface card (16 ports)
  • With case: Yes
  • Number of serial channels: 16
  • Communication protocol: Serial
€2,790.00
Delivery time upon request
781057-01
NI
781057-01
PXIe-6366 multifunction I / O module (8 simultaneous AI, 24 DIO, 2 AO) with 2 MS / s per channel
  • Number of bidirectional digital channels: 24
  • With case: Yes
  • Number of analogue output channels: 2
  • Number of counters/timers: 4
  • Max. Number of differential analogue input channels: 8
  • Max. Update rate (MS/s): 3.3
  • Measurements per second/sampling rate (MS/s): 2
  • Voltage measuring range of the analogue input (V): -1 V bis 1 V, -5 V bis 5 V, -2 V bis 2 V, -10 V bis 10 V
€8,730.00
Delivery time upon request
783867-01
NI
783867-01
Voltage input module NI PXIe-4304 with +/- 42 V, 32 channels, 5 kS / s, 24 bit
  • With case: Yes
  • Voltage measuring range of the analogue input (V): -42 V bis 42 V
  • Max. Number of differential analogue input channels: 32
  • Measurements per second/sampling rate (MS/s): 0.005
€4,150.00
Delivery time upon request
780683-02
NI
780683-02
NI PCI-8512/2, CAN interface card (high speed/flexible data rate, 2 connections)
  • With case: Yes
  • CAN physical layer: High-Speed, Flexible Data-Rate
  • Communication protocol: CAN
  • Number of CAN connections: 2
€3,410.00
Delivery time upon request
782857-01
NI
782857-01
NI PXIe-4112, 2-channel power supply, 60 V, 1 A.
  • With case: Yes
  • Number of analogue output channels: 2
  • max. Power (A): 1
  • Output power (W): 120
€3,810.00
1 in stock. Ready to ship in 1 business day
784277-01
NI
784277-01
Sound and vibration measurement module PXIe-4480 with 1.25 MS / s
  • Measurements per second/sampling rate (MS/s): 1.25
  • With case: Yes
  • Voltage measuring range of the analogue input (V): -10 V bis 10 V
  • Max. Number of differential analogue input channels: 6
€15,400.00
Delivery time upon request
779639-01
NI
779639-01
NI PXI-6289 (32 analog inputs, 48 digital I / O channels, 4 analog outputs)
  • With case: Yes
  • Number of analogue output channels: 4
  • Number of bidirectional digital channels: 48
  • Max. Update rate (MS/s): 2.86
  • Measurements per second/sampling rate (MS/s): 0.625
  • Max. Number of differential analogue input channels: 16
  • Voltage measuring range of the analogue input (V): -10 V bis 10 V, -2 V bis 2 V, -0.1 V bis 0.1 V, -0.5 V bis 0.5 V, -0.2 V bis 0.2 V, -5 V bis 5 V, -1 V bis 1 V
  • Number of counters/timers: 2
€5,310.00
Delivery time upon request
786375-11
NI
786375-11
PXIe-5113 PXI Oscilloscope with CableSense Technology, 500 MHz, 8 bits, 3 GS/s, 2 channels,
  • With case: Yes
  • Voltage measuring range of the analogue input (V): -20 V bis 20 V
  • Number of channels: 2
  • Measurements per second/sampling rate (MS/s): 3000
  • Bandwidth (MHz): 500
€14,200.00
Delivery time upon request
780688-02
NI
780688-02

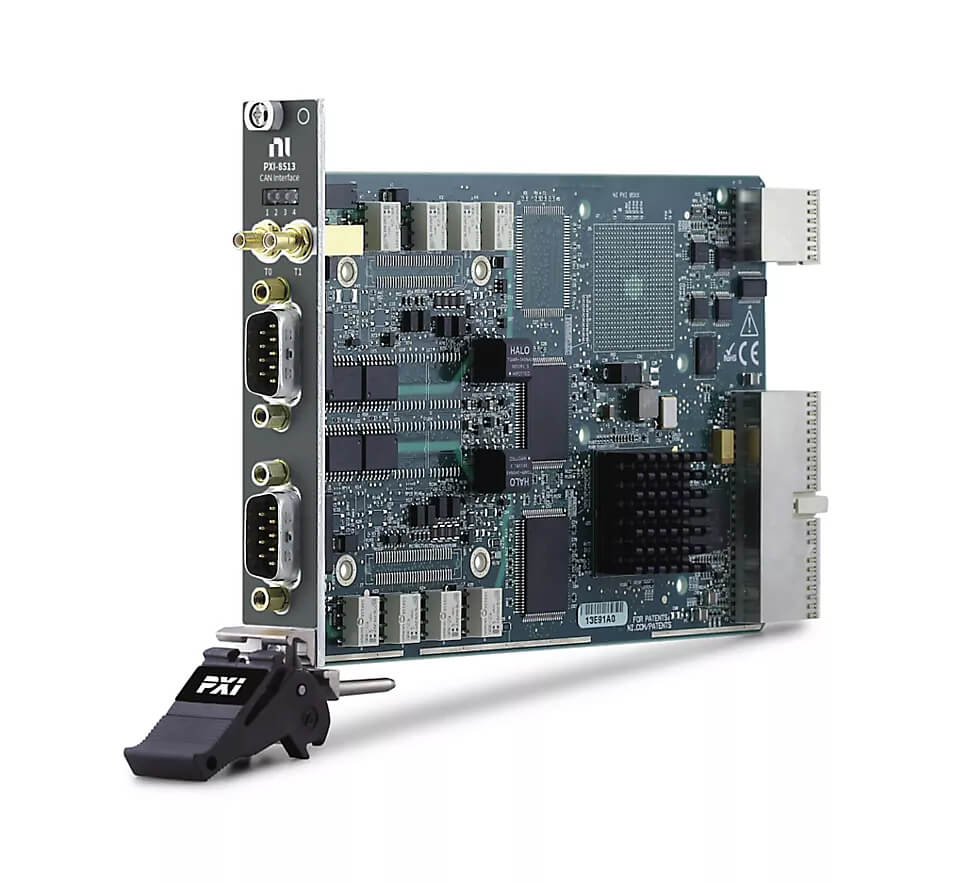

NI PXI-8513/2, CAN interface card, software-configurable / flexible data rate, 2 connections
  • With case: Yes
  • Communication protocol: CAN
  • Number of CAN connections: 2
  • CAN physical layer: Software-Selectable, High-Speed, Low-Speed/Fault Tolerant, Flexible Data-Rate, Single-Wire
€3,790.00
Delivery time upon request
