PMK 880-102-501 | BumbleBee HV probe, differential, 50X, 300MHz / 500X, 400MHz, ±2000V, BNC, 2m

Manufacturer number: 880-102-501

880-102-501
880-102-501
880-102-501
880-102-501
880-102-501
880-102-501
880-102-501
880-102-501
1 in stock. Ready to ship in 1 business day

€3,250.00

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

PMK 880-102-501 | High voltage differential probe BumbleBee, 400 MHz, ± 2000 V, 1000 V CAT III, 2 m cable.

  • Division (switchable): 50:1 / 100:1 / 250:1 / 500:1
  • Rise Time: 1.0 ns (50:1 / 100:1), 0.9 ns (250:1 / 500:1)
  • Bandwidth:(-3dB) 400MHz
  • Input Impedance: 5MΩ || 5pF
  • Input Coupling: 50Ω
  • Input voltage: up to ± 2000 V
  • Cable Length: 2m
  • Safety: 1000V CAT III
  • Weight: 370g
  • Input: 2mm x 4mm (male)
  • Output: BNC (male)

The probe requires a power supply:

  • 889-09V-PS2 or 889-09V-PS2-L 2 channels each
  • 889-09V-PS3 or 889-09V-PS3-L 4 channels each

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 0.86 MB
Userguide
pdf | 1.05 MB

Description

880-102-501 | BumbleBee HV probe, differential, 50X, 300MHz / 500X, 400MHz, ±2000V, BNC, 2m

The PMK BumbleBee is a 400MHz, ±2000V, 1000V CAT III HV differential probe that can be used on any device/oscilloscope with a 50Ω input.

The probe can be used to evaluate power electronics and is very effective for measurements on IGBTs, such as those found in motor controls, switched-mode power supplies and frequency converters. Transients can also be captured well when measuring signals with bandwidths of up to 400 MHz.

The 4 division levels (500:1, 250:1, 100:1, 50:1) enable measurements with increased resolution.

The separate overvoltage indicators of the inputs and the differential output indicate whether the probe is operating within the intended range. The BumbleBee offers an active offset correction of ± 4 V with a resolution of at least 13 bits, based on the output voltage.

By using components with very low ppm values, high stability is achieved across the entire power spectrum. Measurements over longer periods of time in particular benefit from low drifts at changing temperatures. Other features, such as LEDs for channel identification and extensive accessories make it easier for the user to use.

Accessoires (10 products)

119-916-175
PMK
119-916-175
Termination resistor 50 Ohm 2GHz, 1W
Delivery time upon request
€35.75
181-576-ISO
PMK
181-576-ISO

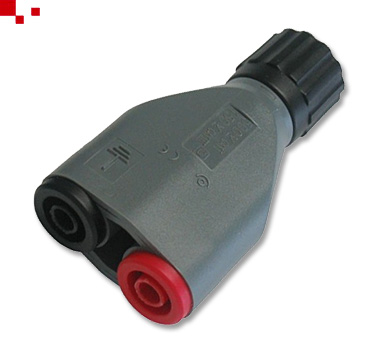

BNC adapter plastic, 7043-IEC BNC plug / 2x4mm safety socket
Delivery time upon request
€19.25
889-09V-PS2-L
PMK
889-09V-PS2-L
2-channel power supply PS-02 for BumbleBee and Sonic active probe, USB and LAN
Delivery time upon request
€1,210.00
890-880-104
PMK
890-880-104
Twinholder M6 probe tip adapter
Delivery time upon request
€189.75
181-675-100
PMK
181-675-100
BNC adapter BNC socket / 2x4mm plug
Delivery time upon request
€16.50
711-111-300
PMK
711-111-300
BNC coaxial cable, BNC 58 100 RG58, 1m, BNC to BNC, 50 Ohm
Delivery time upon request
€28.05
889-09V-PS3-L
PMK
889-09V-PS3-L
4-channel power supply PS-03 for BumbleBee and Sonic active probe, USB and LAN
Delivery time upon request
€1,479.50
889-09V-PS2
PMK
889-09V-PS2
2-channel power supply PS-02 for BumbleBee and Sonic active probe, USB connection
Reordered - in stock. Delivery time on request
€825.00
889-09V-PS3
PMK
889-09V-PS3
4-channel power supply PS-03 for BumbleBee and Sonic active probe, USB connection
2 in stock. Ready to ship in 1 business day
€1,094.50
119-916-170
PMK
119-916-170
BNC implementation termination, 1GHz, 1W, 50O BNC-DA-50R
Delivery time upon request
€99.25

Alternate products (8 products)

880-106-501
PMK
880-106-501
BumbleBee probe, differential, 50X, 300MHz / 500X, 400MHz, ±2000V, BNC, 6m
Delivery time upon request
€3,750.00
880-107-501
PMK
880-107-501
HV differential probe BumbleBee, 400 MHz, ± 2000 V, 7 m, BNC
Delivery time upon request
€4,250.00
880-112-501
PMK
880-112-501
Differential probe BumbleBee, 500 MHz, ± 200 V, 2 m, BNC
Delivery time upon request
€3,250.00
880-117-501
PMK
880-117-501
Differential probe BumbleBee, 500 MHz, ± 200 V, 7 m, BNC
Delivery time upon request
€4,250.00
880-122-501
PMK
880-122-501
Differential probe BumbleBee, 500 MHz, ± 400 V, 2 m, BNC
Delivery time upon request
€3,250.00
880-127-501
PMK
880-127-501
Differential probe BumbleBee, 500 MHz, ± 400 V, 7 m, BNC
Delivery time upon request
€4,250.00
880-132-501
PMK
880-132-501
Differential probe BumbleBee, 500 MHz, ± 1000 V, 2 m, BNC
Delivery time upon request
€3,250.00
880-137-501
PMK
880-137-501
Differential probe BumbleBee, 500MHz, ±1000V, 7m, BNC
Delivery time upon request
€4,250.00
