PICOTEST J2130A | DC bias injector, 10 Hz - 10 MHz

Manufacturer number: J2130A

PICOTEST J2130A
PICOTEST J2130A
PICOTEST J2130A
PICOTEST J2130A
PICOTEST J2130A
PICOTEST J2130A
PICOTEST J2130A
PICOTEST J2130A
PICOTEST J2130A
Delivery time upon request

On Request

or choose one of the following options:
Product inquiries
Highlights Description Related Articles

PICOTEST J2130A | DC bias injector, 10 Hz - 10 MHz.

  • Frequency range: 10 Hz to 10 MHz, low loss design
  • Easy measurement of varactor diodes and junction capacitance
  • Measurement of 5XR capacitors with corresponding voltage dependence of the capacitance
  • Bias for low power amplifiers and for diodes for parameter determination
  • Max. Bias voltage: 50 VDC
  • Bias resistance: 10k ohms
  • Max. Bias current: 5m A @ 50V
  • Frequency response: 15 Hz to 40Mz + frequency sweep 10Hz to 500MHz, power: -10dBm
  • Input: banana jacks
  • Oscillating gate input: BNC socket
  • Output: banana jacks
  • Dimensions: 109.22 x 89.66 x 50.80 mm
  • Weight: 0.225 kg
  • Warranty: 1 year

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

J2130A | DC bias injector, 10 Hz - 10 MHz

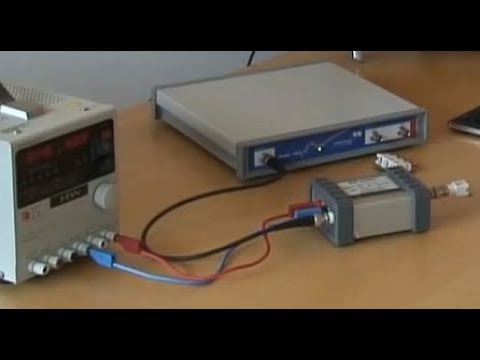

If you use a network analyzer to measure capacitance and equivalent series resistance (ESR) or a pure capacitance or DC resistance of an inductor (DC Resistance of an Inductor / DCR) etc., it is often necessary to preload the component to be tested or To lay module. This is the case with semiconductor capacitors (semiconductor junction capacities), varactors (capacitance diodes) and some ceramic capacitors such as the X5R. In these cases, the capacity depends on the applied bias. This DC bias injector J2130A is intended for impedance measurements.
