NI 787137-01 | PXIe-1086DC, redundant 3U PXI Express chassis with 18 slots, front access to the power supply

Manufacturer number: 787137-01

787137-01
787137-01
787137-01
Delivery time upon request

€26,800.00

or choose one of the following options:
Request a quote Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description

NI 787137-01 | PXIe-1086DC, redundant 3U PXI Express chassis with 18 slots, front access to the power supply.

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Catalog
pdf | 5.12 MB
Brochure
pdf | 1.04 MB

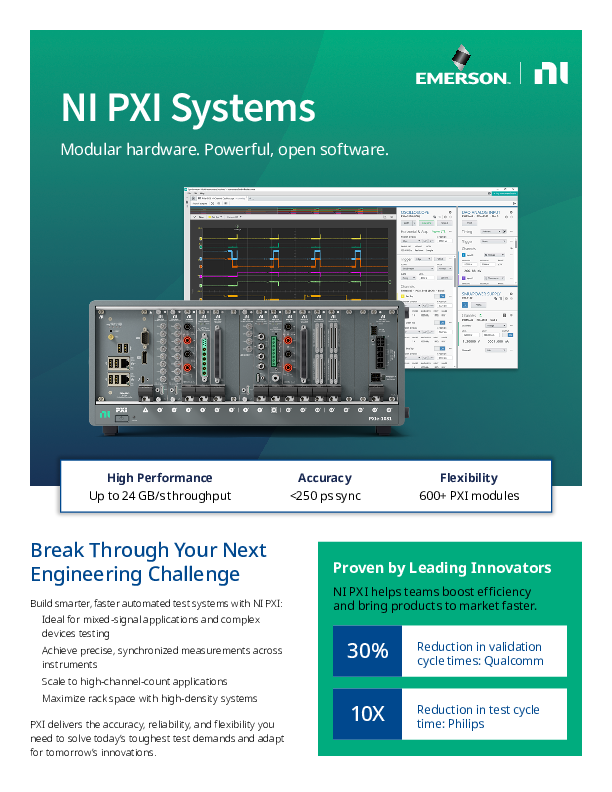

Overview
pdf | 1.35 MB
Configuration guide
pdf | 1.88 MB

Description

787137-01 | PXIe-1086DC, redundant 3U PXI Express chassis with 18 slots, front access to the power supply

The PXIe-1086DC includes redundant, hot-swappable DC power supplies. It also has redundant fans accessible from the front, which can also be exchanged during operation. These features improve the mean downtime (MTBF) and mean time to repair (MTTR) of the PXI system, thereby maximizing availability. The PXIe-1086DC is used to monitor power and voltage supply, air inflow temperature, and fan status and speed, with possible error messages being output via status LEDs on the chassis. The chassis is particularly suitable for measurement, control, regulation and testing applications with high demands on the system uptime.

Product features:

  • PXI chassis type: PXIe
  • Number of slots: 18
  • Maximum system bandwidth: 12 GB / s
  • Chassis power supply: DC
  • Cooling capacity at the slot: 38 W.
  • Integrated clock: VCXO
  • External clocking: Yes
  • Number of PXI Express slots: 1
  • Number of hybrid slots: 16
  • Number of PXI slots: 0
  • System time control slot: Yes
  • External trigger access: No.
  • Redundant hardware: yes
