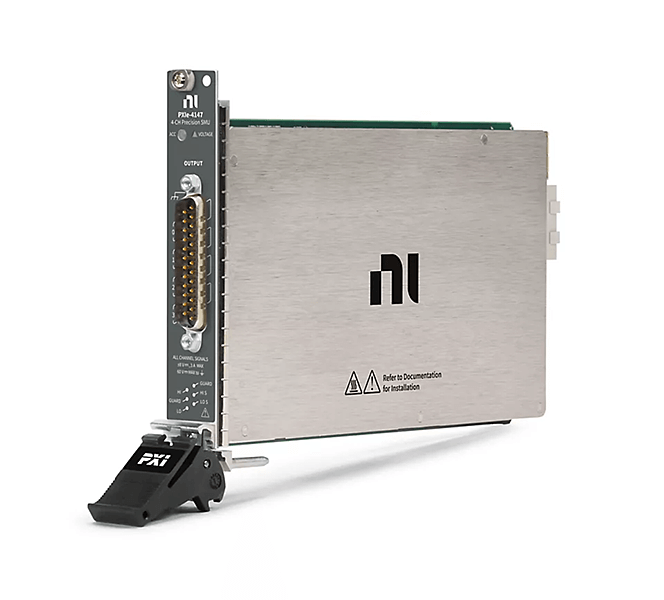

NI 786888-01 | Precision SMU PXIe-4147 with 4 channels, 8 V, 3 A.

Manufacturer number: 786888-01

NI 786888-01
Delivery time upon request

€28,200.00

or choose one of the following options:
Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Related Articles

786888-01 | Precision SMU PXIe-4147 with 4 channels, 8 V, 3 A.

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Catalog
pdf | 5.12 MB
Brochure
pdf | 1.86 MB
Overview
pdf | 1.35 MB
Configuration guide
pdf | 1.88 MB

Description

786888-01 | Precision SMU PXIe-4147 with 4 channels, 8 V, 3 A.

The PXIe-4147 is a four-channel source measure unit (SMU) that is ideal for high-pin count applications. It has four-quadrant operation and each channel offers integrated remote sensing on four conductors for precise measurements. Thanks to the sample rate of the PXIe-4147, the duration of the measurement can be reduced, the transient behavior can be recorded and a fast current-voltage characterization of test objects can be carried out. With a high-speed sequencing engine, SMUs can be synchronized with each other or with other measuring devices such as switch modules or high-speed digital test modules. In addition, you can fine-tune the PXIe-4147's response to any load, using SourceAdapt technology to achieve optimal responses with maximum stability and minimal transients.

Product features:

  • Number of SMU channels: 4
  • Maximum DC source power: 24 W.
  • Maximum DC sink power: 24 W.
  • Voltage measuring range: -8 V to 8 V.
  • Current sensitivity: 100 fA
  • SourceAdapt: Yes
  • With auxiliary power supply: -
  • DC current range: -3 A to 3 A.
  • Pulsed current range: -
