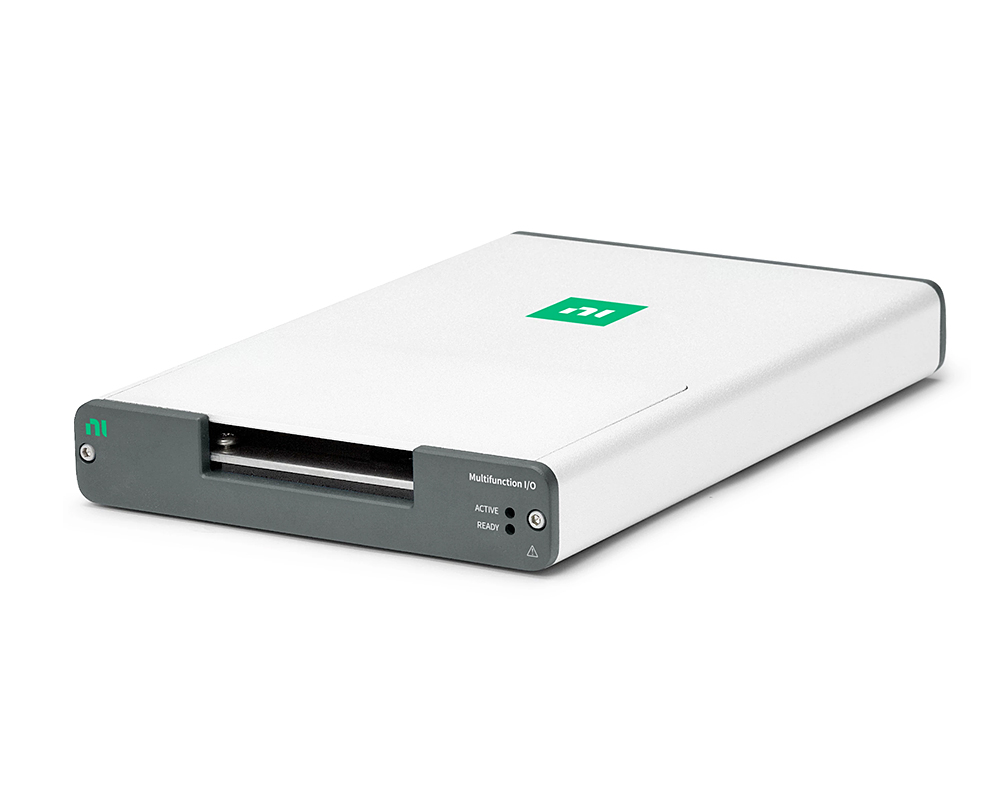

NI 785815-01 | USB-6346, multifunctional I / O device: 8 AI with simultaneous sampling (500 kS / s per channel, 16 bit), 2 AO, 24 DIO BNC.

Name: 785815-01 | USB-6346, multifunctional I / O device: 8 AI with simultaneous sampling (500 kS / s per channel, 16 bit), 2 AO, 24 DIO BNC.
Brand: NI
SKU: 785815-01
Price: 3270.0 EUR
Availability: OutOfStock

Manufacturer number: 785815-01

Delivery time upon request

€3,270.00

or choose one of the following options:

Product inquiries

785815-01 | USB-6346, multifunctional I / O device: 8 AI with simultaneous sampling (500 kS / s per channel, 16 bit), 2 AO, 24 DIO BNC ..

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Absolute accuracy of the AI (microV):	3225
Bustype:	USB 2.0
Connection type front:	50-Pin, Weiblich BNC
Max. Number of differential analogue input channels:	8
Max. Number of ground-related analogue input channels:	0
Max. Update rate (MS/s):	0.9
Measured electrical signal:	Voltage
Measurements per second/sampling rate (MS/s):	0.5
Number of analogue output channels:	2
Number of bidirectional digital channels:	24
Number of counters/timers:	4
Protectively coated:	No
Resolution of the analogue input:	16 bit
Samplerate:	500 kS/s pro Kanal
Simultaneous scanning:	Yes
Voltage measuring range of the analogue input (V):	-5 V bis 5 V, -10 V bis 10 V, -2 V bis 2 V, -1 V bis 1 V
With case:	Yes

Documents & Downloads

Datasheet

pdf | 0.32 MB

Description

785815-01 | USB-6346, multifunctional I / O device: 8 AI with simultaneous sampling (500 kS / s per channel, 16 bit), 2 AO, 24 DIO BNC.

The USB-6346 is a multi-function data collection device with simultaneous scanning. It offers analog I / O, digital I / O and four counters / timers with 32 bit resolution for pulse width modulation, encoder and frequency measurements as well as event counting and much more. The NI-STC3 timing and synchronization technology enables extended timing functions, including independent analog - and digital timing engines as well as repeatable triggering of measurement tasks. The USB-6346 is suitable for a wide variety of applications, from basic data logging to control and regulation to test automation. The NI-DAQmx driver with configuration program included in the scope of delivery simplifies the configuration and the execution of measurements.

Product features:

With housing: yes
Bus type: USB 2.0
Maximum number of ground-related analog input channels: 0
Maximum number of differential analog input channels: 8
Simultaneous sampling: Yes
Maximum sampling rate: 500 kS / s per channel
Resolution of the analog input: 16 bit
Absolute accuracy of the analog input: 3225 μV
Number of analog output channels: 2
Maximum update rate: 900 kS / s
Number of bidirectional digital channels: 24
Number of counters / timers: 4
Connection type front: BNC
Supported input power: -
Isolation of the analog input: -
Analog input FIFO buffer size: 4095 samples
