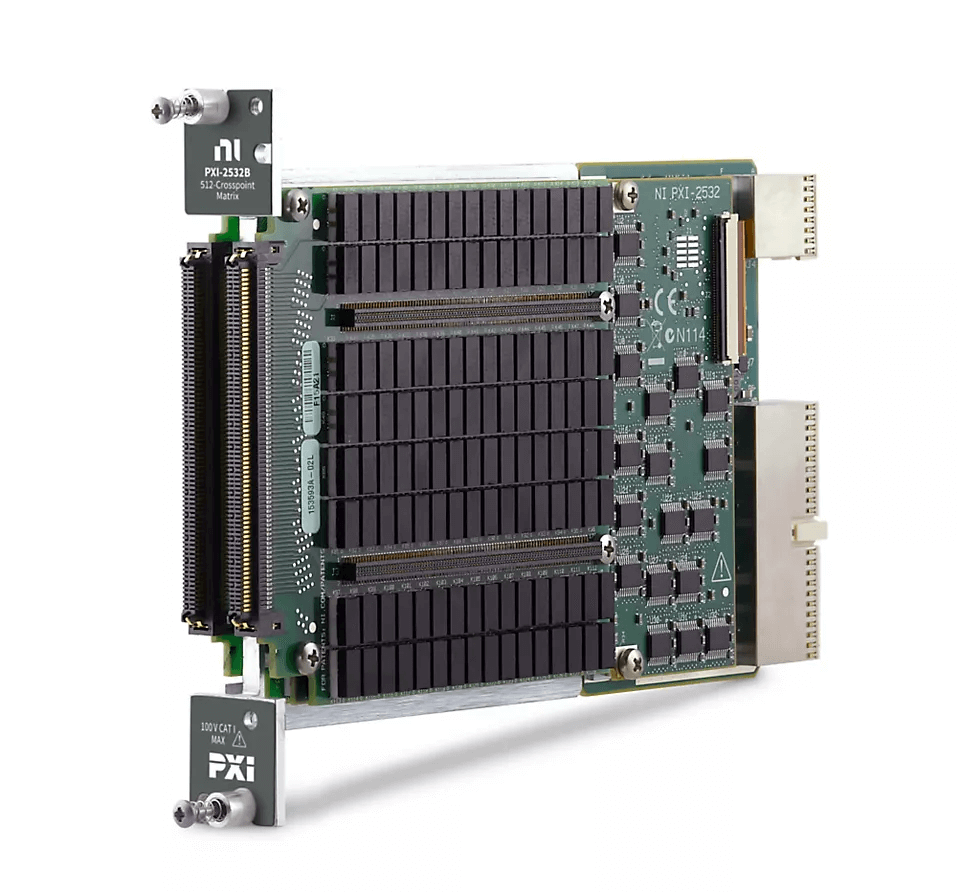

The PXI ‑ 2532B is a PXI ‑ matrix switch module with a high channel density for use in automated test systems with a large number of channels. Thanks to the compact reed relays with switching speeds of up to 2000 cycles / s, the PXI ‑ 2532B can be configured in more than ten matrix topologies by using different connection blocks. The integrated function for counting the switching processes for monitoring and deterministic operation with hardware triggers improves test throughput.
Product features:
- Bus type: PXI Hybrid
- Mode (n-wire): 1-wire 2-wire
- Crosspoints: 512
- Number of banks: 1 2 4 16
- Number of rows: 2 4 8 16
- Number of columns: 16 32 64 128
- Maximum switching voltage (DC): 100 V
- Maximum switching current (DC): 0.5 A
- Relay type: reed relay
- Switching bandwidth: 30 MHz
- Scanning frequency: 2000 cycles / s
