NI 781442-01 | NI USB-6361, X-Series DAQ Module (16 AI, 24 DIO, 2 AO)

Manufacturer number: 781442-01

NI 781442-01
Delivery time upon request

€2,680.00

or choose one of the following options:
Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Related Articles

781442-01 | NI USB-6361, X series DAQ module (16 AI, 24 DIO, 2 AO).

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

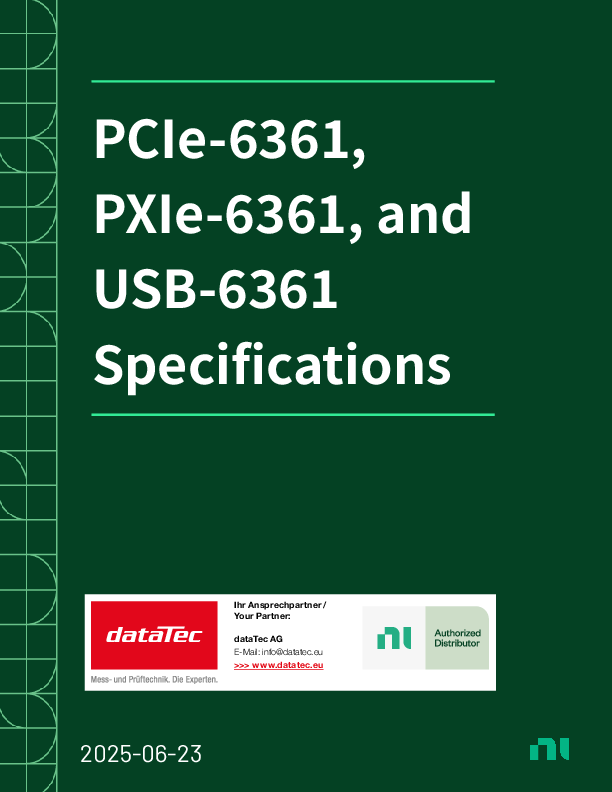

Brochure
pdf | 0.75 MB

Description

781442-01 | NI USB-6361, X-Series DAQ Module (16 AI, 24 DIO, 2 AO)

The USB ‑ 6361 offers analog I / O, digital I / O and four counters / timers with 32 bit resolution for pulse width modulation, encoder and frequency measurements as well as event counting and much more. The NI ‑ STC3 timing and synchronization technology enables extended timing functions, among others Independent analog and digital timing engines as well as repeatable triggering of measurement tasks. The USB ‑ 6361 is suitable for a wide variety of applications, from basic data logging to open-loop and closed-loop control and test automation. The NI ‑ DAQmx driver with configuration program included in the scope of delivery simplifies the configuration and the execution of measurements.

Product features:

  • With housing: yes
  • Bus type: USB 2.0
  • Maximum number of ground-related analog input channels: 16
  • Maximum number of differential analog input channels: 8
  • Simultaneous sampling: No.
  • Maximum sampling rate: 2 MS / s
  • Resolution of the analog input: 16 bit
  • Absolute accuracy of the analog input: 1660 μV
  • Number of analog output channels: 2
  • Maximum update rate: 2.86 MS / s
  • Number of bidirectional digital channels: 24
  • Number of counters / timers: 4
  • Connection type front: screw connection
  • Supported input power: -
  • Isolation of the analog input: -
  • Analog input FIFO buffer size: 2047 samples
