NI 781337-01 | PXIe-4300, analog input module with 8 channels, 250 kS / s, channel-by-channel isolation up to 300 V.

Name: 781337-01 | PXIe-4300, analog input module with 8 channels, 250 kS / s, channel-by-channel isolation up to 300 V.
Brand: NI
SKU: 781337-01
Price: 3890.0 EUR
Availability: InStock

Manufacturer number: 781337-01

1 in stock. Ready to ship in 1 business day

€3,890.00

or choose one of the following options:

Product inquiries

NI 781337-01 | PXIe-4300, analog input module with 8 channels, 250 kS / s, channel-by-channel isolation up to 300 V.

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue input isolation:	Ch-Ch Isolation, 300 V Kanal-zu-Kanal-Isolierung
Bustype:	PXI Express
Connection type front:	96-Pin, Männlich DIN
Filtering:	Butterworth
Max. Number of differential analogue input channels:	8
Measured electrical signal:	Voltage
Measurements per second/sampling rate (MS/s):	0.25
Module width:	1
Protectively coated:	No
Resolution of the analogue input:	16 bit
Samplerate:	250 kS/s pro Kanal
Simultaneous scanning:	Yes
Voltage measuring range of the analogue input (V):	-300 V bis 300 V, -10 V bis 10 V, -2 V bis 2 V, -30 V bis 30 V, -60 V bis 60 V, -1 V bis 1 V, -5 V bis 5 V, -150 V bis 150 V
With case:	Yes

Description

781337-01 | PXIe-4300, analog input module with 8 channels, 250 kS / s, channel-by-channel isolation up to 300 V.

The PXIe-4300 module provides integrated data acquisition and signal conditioning for measuring high voltages. It offers high accuracy, simultaneous sampling and synchronization functions for scalable measuring systems. The PXIe-4300 includes channel-wise CAT-II isolation up to 300 Vrms and channel-to-ground isolation up to 3300 Vrms for five seconds to protect operators and test equipment from hazardous voltages. The module has programmable low-pass filtering, DC input coupling and two PFI lines for triggering digital inputs. The included NI-DAQmx driver simplifies hardware configuration and measurements.

Product features:

Differential analog inputs: 8
Maximum sampling rate: 250 kS / s per channel
Resolution analog input: 16 bit
Voltage range analog input: -300 V to 300 V -150 V to 150 V -60 V to 60 V -30 V to 30 V -10 V to 10 V -5 V to 5 V -2 V to 2 V -1 V to 1 V
Filtering: -
Discrete low pass filter: 10 kHz 100 kHz
Analog input isolation: 300 V channel-to-channel isolation

Accessoires (5 products )

NI 960455-01

Traceable Calibration Certificate for PXIe-4300 (781337-01-CAL)

Delivery time upon request

€305.00

NI 960680-101

Standard Service Program (SSP) for PXIe-4300 with Traceable Calibration, 3 Years (781337-01-SC3)

Delivery time upon request

€1,122.73

NI 960455-04

ISO 17025 Calibration Certificate for PXIe-4300 (781337-01-ISO)

Delivery time upon request

€680.00

NI 960680-100

Standard Service Program (SSP) for PXIe-4300, 3 year (781337-01-S3)

Delivery time upon request

On Request

NI 960455-03

ANSI Compliant Calibration Certificate for PXIe-4300 (781337-01-ANSI)

Delivery time upon request

€530.00

Die Datatec Akademie

Wenn Sie sich für neue Mess- oder Prüftechnik entscheiden, wollen Sie sicher sein, die richtige Entscheidung zu treffen. Darum beraten wir Sie nicht nur umfassend, sondern bieten zudem vielfältige Schulungen an. Egal ob online, bei uns in Reutlingen oder exklusiv für Ihre Firma.

Seminarempfehlungen

dataTec Technical advice

Software architecture consulting

On Request

Delivery time upon request

dataTec Technical advice

Software architecture consulting online

On Request

Delivery time upon request

dataTec Technical advice

On-site code review

On Request

Delivery time upon request

dataTec Technical advice

Code Review Online

On Request

Delivery time upon request

dataTec Technical advice

Individual advice

On Request

Delivery time upon request

dataTec Technical advice

Individual advice online

On Request

Delivery time upon request

dataTec Technical advice

Migration Assistance on site

On Request

Delivery time upon request

dataTec Technical advice

Migration Assistance Online

On Request

Delivery time upon request

dataTec Technical advice

On-site startup assistance

On Request

Delivery time upon request

dataTec Technical advice

Startup Assistance Online

On Request

Delivery time upon request

Alle Seminare entdecken

News and Knowledge

Gravity during rocket launches is best measured with modular measurement technology from NI.

As part of a research programme, the NI technology was confronted with a powerful opponent: microgravity. But in the fac...

18/10/2022

Reading time 3 Min.

1147

Cell phones in zero gravity are best examined with measurement technology from NI.

One of dataTec's customers from research deals with the question of how objects behave in weightlessness. Without furthe...

07/09/2022

Reading time 2 Min.

3678

The best way to measure the mating song of fruit flies is with modular measurement technology from NI.

Oxford University had such a big task that required thinking in very small terms. But thanks to NI's modular measurement...

03/05/2022

Reading time 2 Min.

1304

About the Manufacturer

National Instruments is a global leader in test, measurement, and control solutions. NI's platform-based approach combines modular hardware and software to help customers address complex engineering challenges. Applications range from automotive, electronics, and energy to research/education and industrial systems.

NI 781337-01 | PXIe-4300, analog input module with 8 channels, 250 kS / s, channel-by-channel isolation up to 300 V.

NI 781337-01 | PXIe-4300, analog input module with 8 channels, 250 kS / s, channel-by-channel isolation up to 300 V.

Technical Data

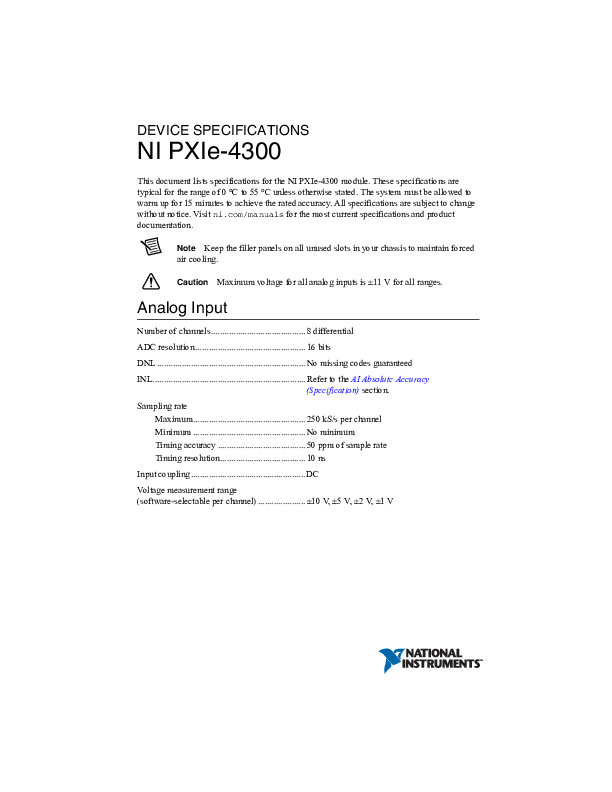

Documents & Downloads
