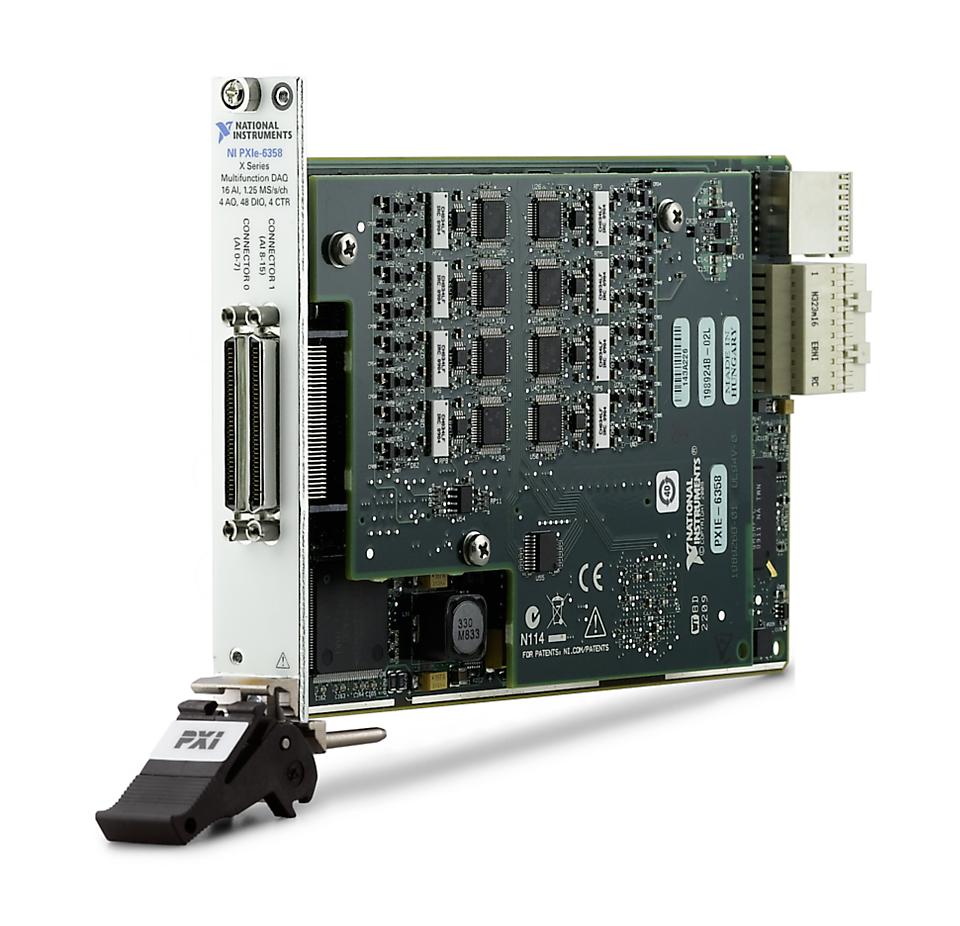

NI 781054-01 | PXIe-6358 multifunction I / O module with 1.25 MS / s per channel (16 simultaneous AI, 48 DIO, 4 AO)

Manufacturer number: 781054-01

NI 781054-01
NI 781054-01
NI 781054-01
Delivery time upon request

€12,500.00

or choose one of the following options:
Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Related Articles

781054-01 | PXIe-6358 multifunction I / O module with 1.25 MS / s per channel (16 simultaneous AI, 48 DIO, 4 AO).

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Catalog
pdf | 5.12 MB
Brochure
pdf | 0.75 MB
Overview
pdf | 1.35 MB
Configuration guide
pdf | 1.88 MB

Description

781054-01 | PXIe-6358 multifunction I / O module with 1.25 MS / s per channel (16 simultaneous AI, 48 DIO, 4 AO)

The PXIe ‑ 6358 is a multifunction data acquisition module with simultaneous sampling. It offers analog and digital I / O, four counters with 32 bit resolution and digital triggering. The NI ‑ STC3 timing and synchronization technology enables advanced timing functions, including independent analog and digital timing engines and repeatable triggering of measurement tasks. The PXIe ‑ 6358 is suitable for a wide variety of applications including IF digitization, transient signal recording, ISDN, ADSL, and POTS telecommunications manufacturing testing, ultrasonic and sonar testing, and high energy physics. The NI ‑ DAQmx driver with configuration program included in the scope of delivery simplifies the configuration and the execution of measurements.

Product features:

  • Bus type: PXIe
  • Maximum number of ground-related analog input channels: 0
  • Maximum number of differential analog input channels: 16
  • Simultaneous sampling: Yes
  • Maximum sampling rate: 1.25 MS / s per channel
  • Resolution analog input: 16 bit
  • Absolute accuracy of analog input: 2688 μV
  • Number of analog output channels: 4
  • Maximum update rate: 3.3 MS / s per channel
  • Number of bidirectional digital channels: 48
  • Direction of current flow: -
  • Number of counters / timers: 4
  • Measured electrical signal: voltage
  • Analog input FIFO buffer size: 8182 samples
