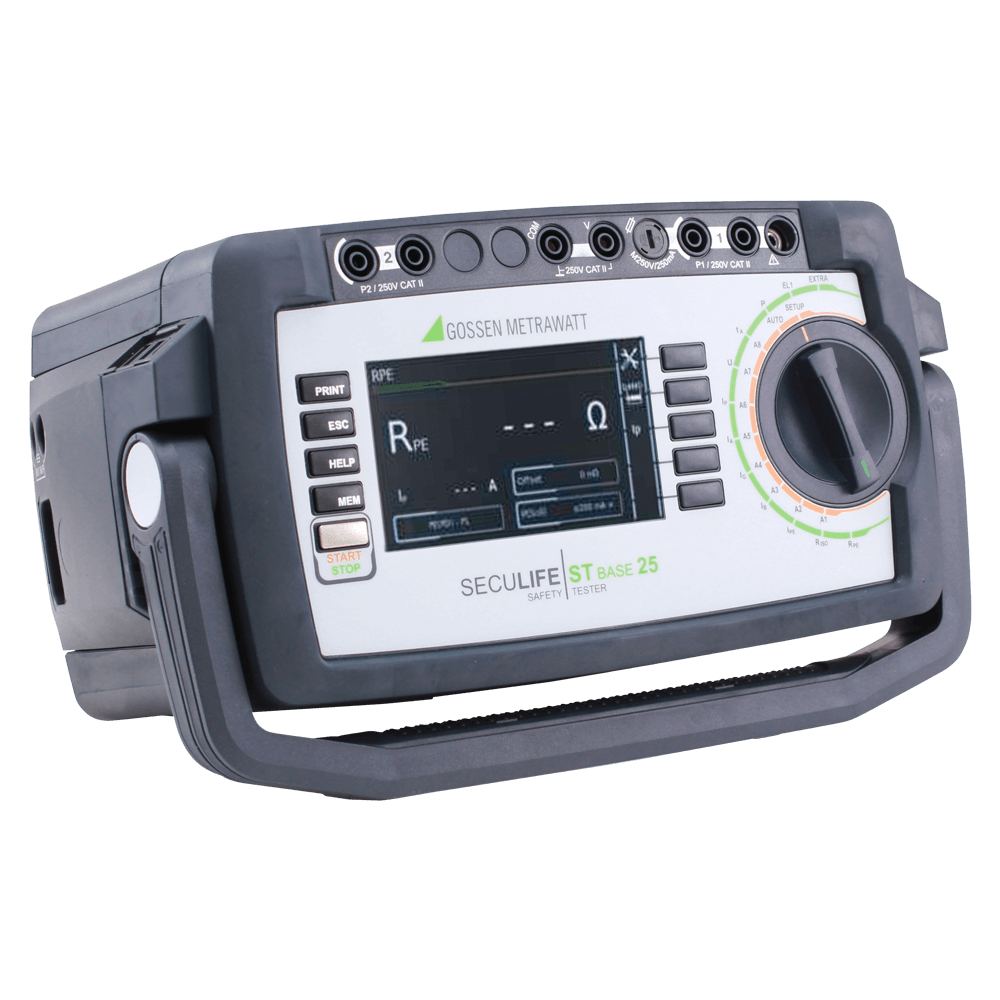

Gossen Metrawatt M694B | Seculife ST BASE 25 appliance tester for numerous VDE standards with antibacterial tester tray

Manufacturer number: M694B

M694B
M694B
M694B
M694B
M694B
M694B
M694B
M694B
M694B
M694B
M694B
M694B
Delivery time upon request

€3,650.00

or choose one of the following options:
Request a quote Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Related Articles

Gossen Metrawatt M694B | Seculife ST BASE 25 device tester for use in medical and industrial environments.

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 1.96 MB
Userguide
pdf | 3.34 MB

Description

M694B | Seculife ST BASE 25 appliance tester for numerous VDE standards with antibacterial tester tray

The SECULIFE ST Base 25 supports you with numerous measurement and test functions for testing the effectiveness of protective measures in medical devices and systems - with predefined and programmable test sequences (VDE 0701-0702, IEC / EN 62353, VDE 0751).

SECULIFE ST BASE 25 was specially developed for all demanding test tasks in hygiene-sensitive areas of medical technology, the pharmaceutical industry and the food industry. The new best-fit measurement cycle ensures faster and more efficient measurement and testing.

Programmable test sequences and predefined sequences that meet the required standards and regulations can be generated and used via a simple and intuitive workflow. With the SECULIFE ST BASE 25 you can carry out tests without special prior knowledge - without losing the data quality of a measurement with a high-quality measuring instrument.

Applications

  • Safe, comprehensive and efficient testing of electrical devices according to manufacturer specifications through programmable test sequences of any standards.
  • Testing of electrical medical devices according to IEC / EN 62353 (VDE 0751).
  • Testing of electrical devices according to DIN VDE 0701-0702 including (extension) cables and PRCDs.

Product highlights

  • Antibacterial effectiveness of the tester
  • Preconfigured and self-programmable test sequences for quick testing of electrical and medical devices
  • Comprehensive data management and storage concepts
  • Automatic test sequence and single measurement, up to 50,000 data records can be saved
  • High resolution and excellent 4.3-inch TFT color display

Your advantages

  • User guidance through preprogrammed test procedures according to standards and automatic evaluation
  • You can quickly access measurement and test functions using the rotary switch, direct selection buttons and softkeys
  • Compact, impact-resistant shell with an integrated protective rubber layer, particularly suitable for mobile use on construction sites and in industrial environments
  • The unique multiple measurement function can easily record multiple measurement points
  • Extensive setting options for language, keyboard, character set, date, time and country-specific standard version, also suitable for international use
  • For maximum IZYTRONIQ compatibility, in addition to customer relationships (real estate, buildings, floors, rooms), test items can also be classified in the location tree. Other fields can be used, e.g. B. Department and cost center
  • User-defined test sequences can be created using software
  • Multiprint - All test protocols can be printed out at the push of a button

Technical features of the SECUTEST ST BASE 25

  • Protective conductor resistance
  • Measurement of the insulation resistance
  • Leakage current measurement: protective conductor current, contact current
  • Leakage current of the applied part
  • Voltage measurement: contact voltage, SELV, PELV voltage, PRCD tripping time
  • Function test (U, I, P, S, LF, f)
  • Line test: continuity, short circuit, polarity (change of line)
  • Temperature measurement (for Pt100 / Pt1000 sensors)

Accessoires (2 products)

Z745X
Gossen Metrawatt
Z745X
AT3-IIS32, Secutest test adapter, CEE devices active, 32A loadable
Ready to ship in 5 to 10 business days
€2,575.00
Z710H
Gossen Metrawatt
Z710H
Protective cover for SECUTEST / SECULIFE test device VDE
Ready to ship in 5 to 10 business days
€153.00

Alternate products (2 products)

M694A
Gossen Metrawatt
M694A
Seculife ST BASE IQ device tester PE test current 10AVDE0701-0702/0751/0544-4 test device, USB
Delivery time upon request
€3,430.00
M694C
Gossen Metrawatt
M694C
Seculife ST PRO IQ appliance tester VDE 0701-0702 / 0751 / 0544-4 & IZYTRONIQ BUSINESS starter
Delivery time upon request
€4,450.00
