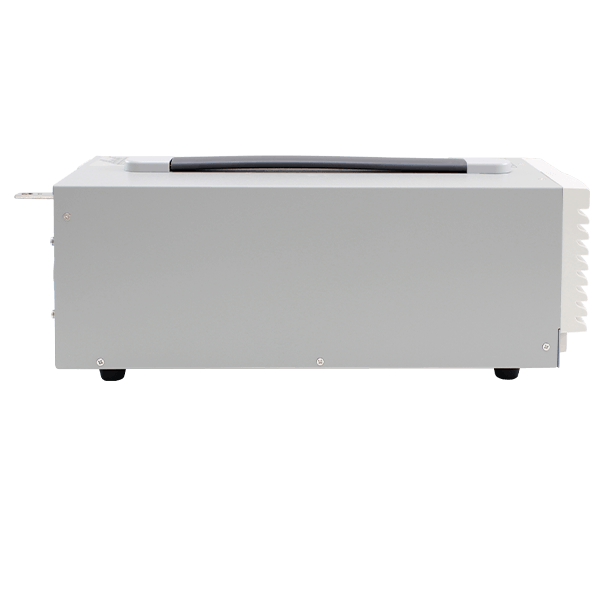

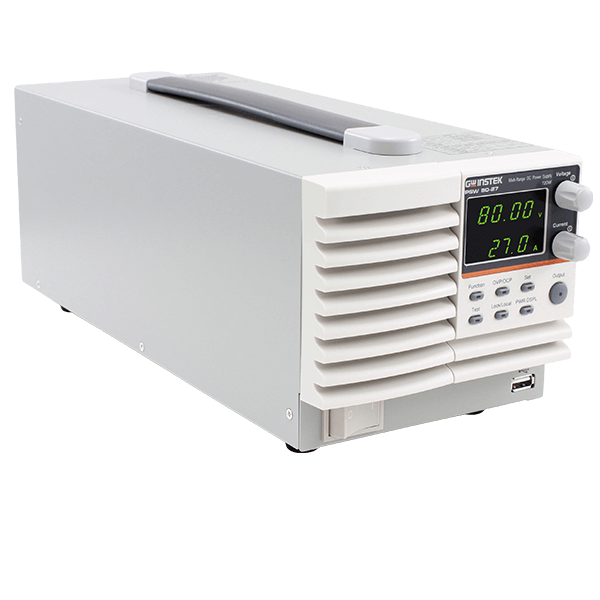

GW Instek PSW80-27 | Power supply unit, DC, 1 channel 80V / 27A, 720W, LAN, USB

Manufacturer number: PSW80-27

PSW80-27
PSW80-27
PSW80-27
PSW80-27
PSW80-27
PSW80-27
PSW80-27
PSW80-27
Delivery time upon request

€1,336.20

% €1,572.00 (15% saved)

or choose one of the following options:
Request a quote Product is already in cart Product downloads Product inquiries Request education-price % Additional offers for this product
Highlights Technical Data Documents / Downloads Description Scope Related Articles

GW Instek PSW80-27 | Programmable multi-range DC laboratory power supply, 1 channel, 0 - 80 V, 0 - 27 A, 720 W.

  • 1 channel DC laboratory power supply
  • Voltage: 0… 80 V
  • Current: 0… 27 A
  • Power: 720 W.
  • Programming resolution: 2 mV | 2 mA
  • Ripple and noise: CV P-P : 80 mV P-P | CV RMS : 11 mV RMS | CC RMS : 54 mA RMS
  • Power supply: 85 V - 265 V AC, 50/60 Hz
  • Interface: USB, LAN
  • Warranty: 2 years
  • Weight: 5.3 kg, W 142 mm x H 124 mm x D 350 mm.

Technical Data

Documents & Downloads

Datasheet
pdf | 3.02 MB

Description

PSW80-27 | Power supply unit, DC, 1 channel 80V / 27A, 720W, LAN, USB

The programmable 1-channel multi range DC laboratory power supply GW Instek PSW80-27 is particularly characterized by its high efficiency and the flexible setting and application options.

The flexible, adjustable power control of the GW Instek PSW series power supplies automatically adjusts the output voltage and output current so that the maximum output power is not exceeded. Furthermore, the laboratory power supply can be connected in series (2 units) and in parallel (up to 3 units) with other units. In this way you can achieve up to 160 V / 27 A when connected in series; connected in parallel up to 80 V / 81 A.

Thanks to this high flexibility, the power supplies can be used for many performance requirements. This significantly reduces your costs for additional power supplies.

The GW Instek PSW80-27 has a constant voltage (CV) and constant current (CC) function. This protects your device under test (DUT) against overshoots or current peaks.

Rise times and fall times (slew rates) can be set for both voltage and current. This makes it possible to test the test object in a controlled manner with changing voltages and currents.
Via the output on / off control with adjustable delay, you can define fixed times for connecting or disconnecting connected power supplies. Simulate and test your DUT with changing voltages or currents. These processes are programmed via the analog interface on your PC.

Of course, the DC power supply has overvoltage (OVP), overcurrent (OCP) and overheating protection (OHP).

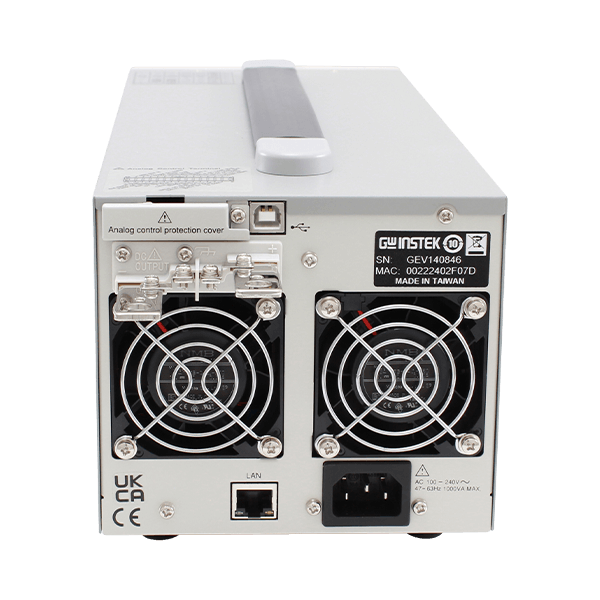

The GW Instek PSW 80-27 is equipped with a USB and LAN interface as standard. A GPIB-USB adapter is optionally available. The analog interface available on the back is also optionally available.

Lieferumfang

  • Operating instructions, power plug, measuring cable, USB cable, mounting accessories
Optional accessories:
  • PSW-001 Accessory Kit
  • PSW-002 Simple IDC Tool
  • PSW-003 Contact Removal Tool
  • PSW-005 Cable for 2 Units of PSW-Series in Series Mode Connection
  • PSW-006 Cable for 2 Units of PSW-Series in Parallel Mode Connection
  • PSW-007 Cable for 3 Units of PSW-Series in Parallel Mode Connection
  • GUG-001 GPIB to USB Adapter
  • GRA-410-J Rack Mount Kit (JIS)
  • GRA-410-E Rack Mount Kit (EIA)
  • GET-001 Extended Terminal (MAX.40A)

Accessoires (2 products)

GET-001
GW Instek
GET-001
Extended Terminal for PSW-LV
Delivery time upon request
€175.00
PSW-001
GW Instek
PSW-001
Accessory set for PSW series
Delivery time upon request
€41.00

Alternate products (18 products)

PSW160-14.4
GW Instek
PSW160-14.4
Power supply unit, DC, 1 channel 160V / 14.4A, 720W, LAN, USB
Delivery time upon request
€1,470.50 €1,730.00
PSW160-21.6
GW Instek
PSW160-21.6
Power supply unit, DC, 1 channel 160V / 21.6A, 1080W, LAN, USB
Delivery time upon request
€1,915.05 €2,253.00
PSW160-7.2
GW Instek
PSW160-7.2
Power supply unit, DC, 1 channel 160V / 7.2A, 360W, LAN, USB
Delivery time upon request
€1,202.75 €1,415.00
PSW250-13.5
GW Instek
PSW250-13.5
Power supply unit, DC, 1 channel 250V / 13.5A, 1080W, LAN, USB
Delivery time upon request
€2,388.50 €2,810.00
PSW250-4.5
GW Instek
PSW250-4.5
Power supply unit, DC, 1 channel 250V / 4.5A, 360W, LAN, USB
Delivery time upon request
€1,214.65 €1,429.00
PSW250-9
GW Instek
PSW250-9
Power supply unit, DC, 1 channel 250V / 9A, 720W, LAN, USB
Delivery time upon request
€1,700.00 €2,000.00
PSW30-108
GW Instek
PSW30-108
Power supply unit, DC, 1 channel 30V / 108A, 1080W, LAN, USB
Delivery time upon request
€1,740.80 €2,048.00
PSW30-36
GW Instek
PSW30-36
Power supply unit, DC, 1 channel 30V / 36A, 360W, LAN, USB
Delivery time upon request
€1,093.95 €1,287.00
PSW30-72
GW Instek
PSW30-72
Power supply unit, DC, 1 channel 30V / 72A, 720W, LAN, USB
Delivery time upon request
€1,336.20 €1,572.00

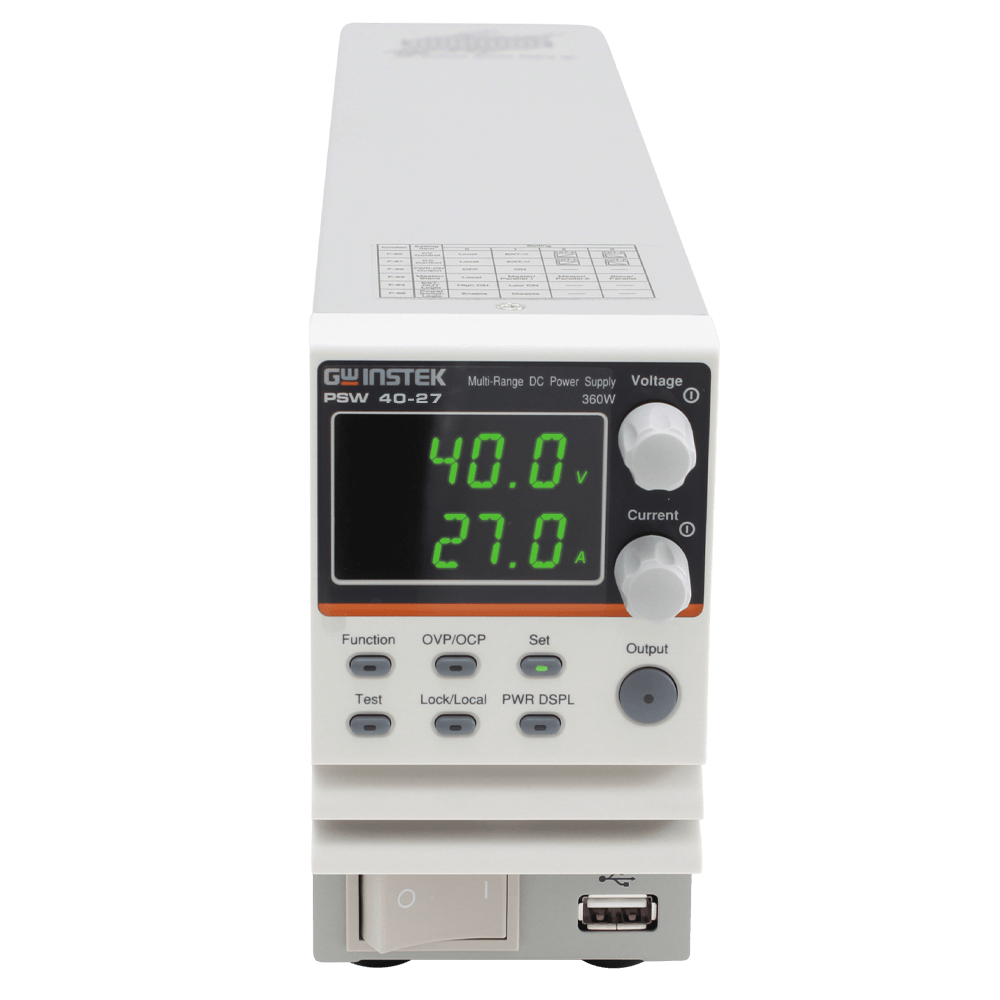

PSW40-27
GW Instek
PSW40-27
Power supply, DC, 1 channel 0-40V / 0-27A / 360W, LAN, USB
Delivery time upon request
€1,093.95 €1,287.00

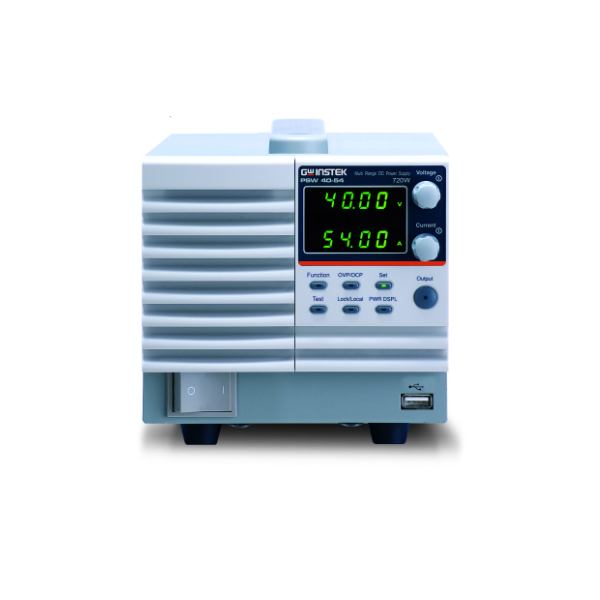

PSW40-54
