GW Instek PPH-1503 DC power supply, dual output

Manufacturer number: PPH-1503

PPH-1503 DC power supply, dual output
PPH-1503 DC power supply, dual output
PPH-1503 DC power supply, dual output
PPH-1503 DC power supply, dual output
PPH-1503 DC power supply, dual output
PPH-1503 DC power supply, dual output
PPH-1503 DC power supply, dual output
PPH-1503 DC power supply, dual output
PPH-1503 DC power supply, dual output
PPH-1503 DC power supply, dual output
Delivery time upon request

€1,607.00

or choose one of the following options:
Request a quote Product is already in cart Product downloads Product inquiries Request education-price % Additional offers for this product
Highlights Technical Data Documents / Downloads Description Scope Related Articles

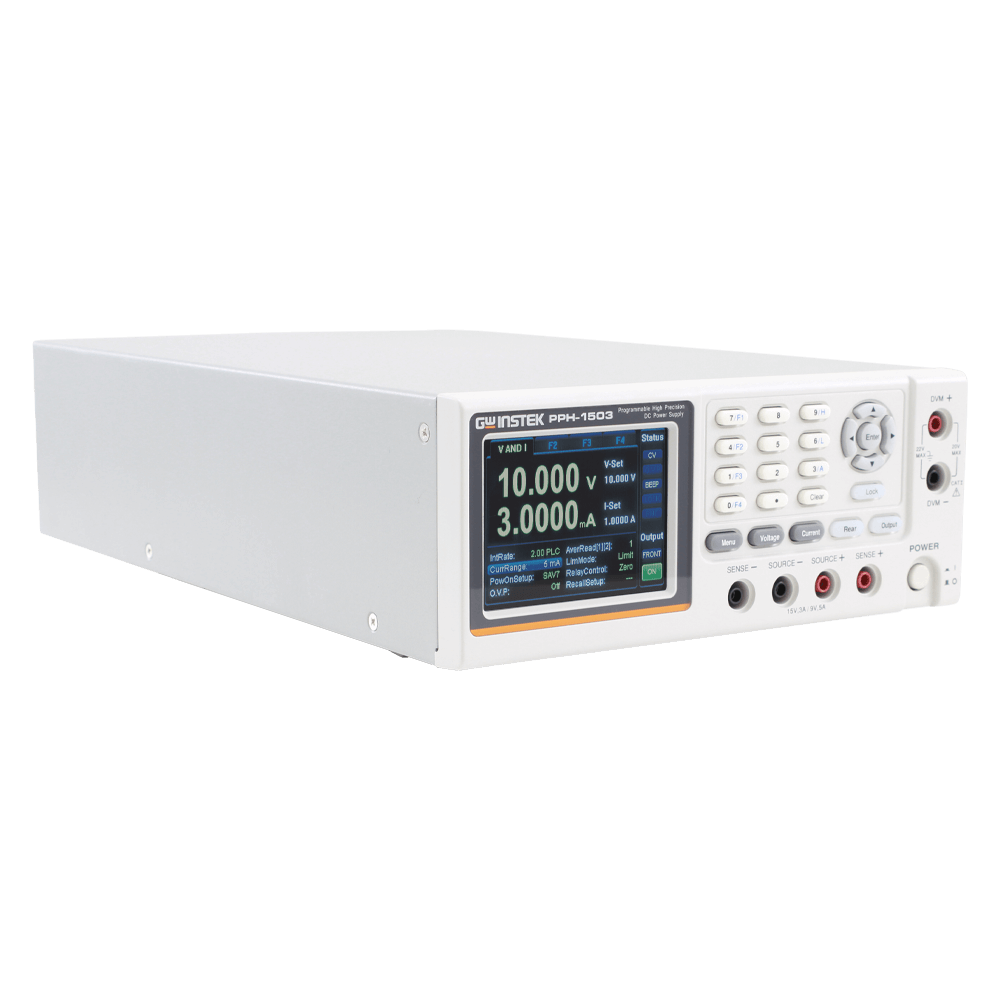

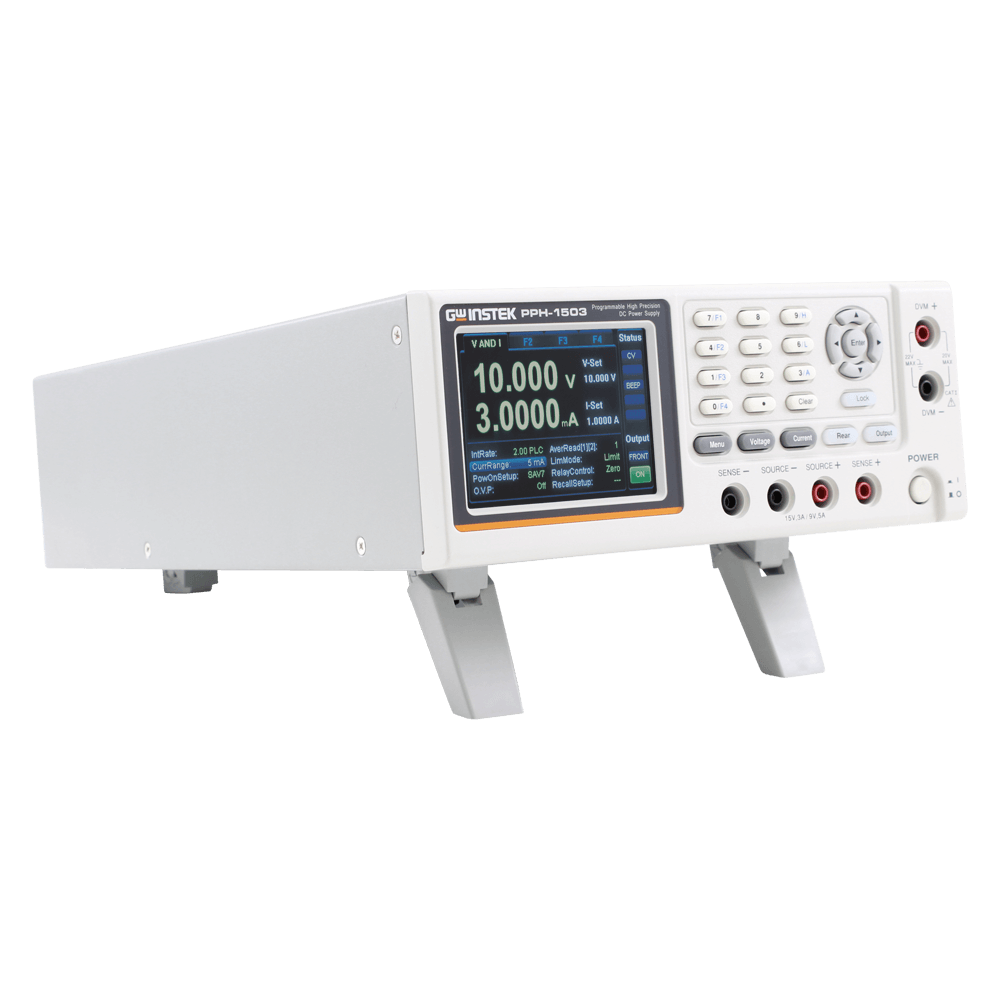

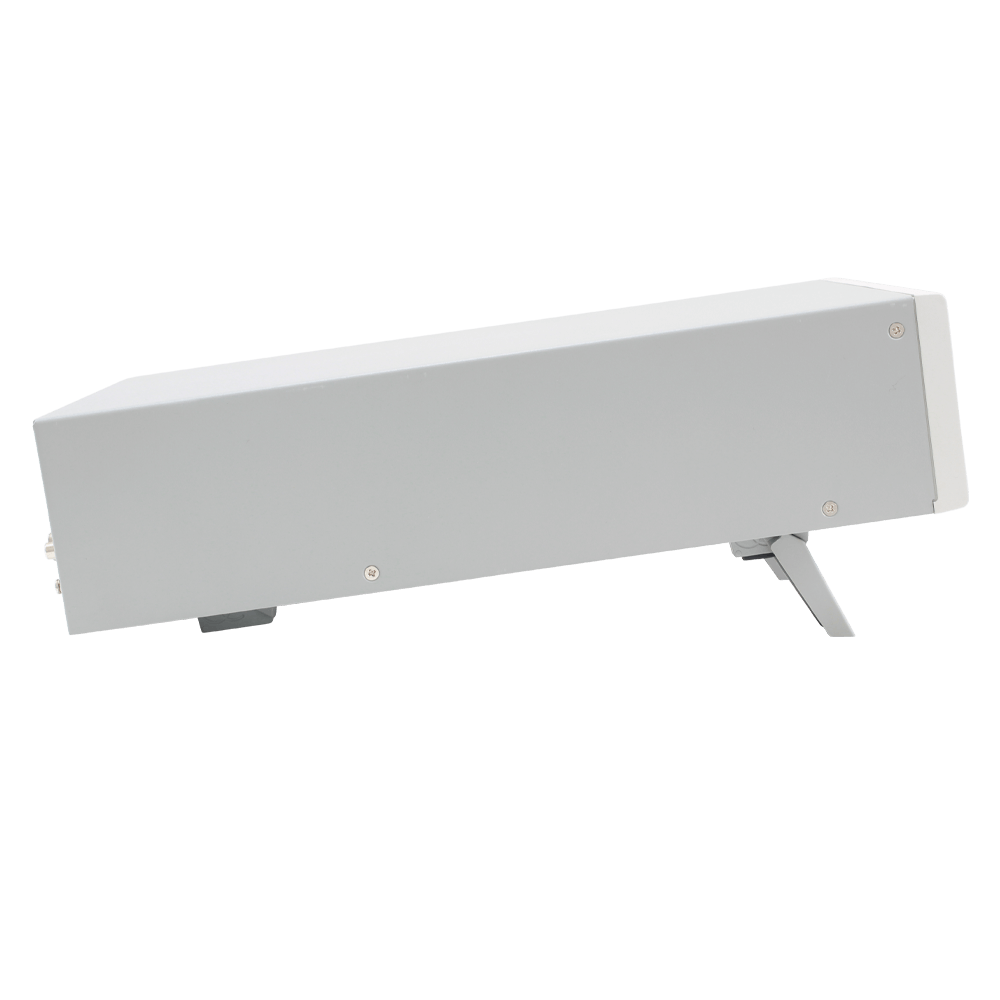

GW Instek PPH-1503 | Programmable high-precision power source DC, 1 channel, dual output 0 - 15 V / 3 A or 0 - 9 V / 5 A, 45 W output power, with load function.

  • 1 channel, programmable from the front
  • Dual output for diverse applications: 0 - 15 V / 0 - 3 A (high range), 0 - 9 V / 0 - 5 A (low range)
  • Output power: 45 W.
  • High resolution for precise measurement results: 1 mV / 0.1 µA (in the 5 mA measuring range)
  • Extended function as an electronic load (up to 2 A)
  • Pulse current measurement with at least 33 µs pulse width
  • Integrated digital voltmeter: 0 to +20 V DC
  • Power output with sequence function
  • Clear 3.5-inch display for optimal readability
  • Constant current (CC) and constant voltage (CV) operation for optimal control behavior
  • Fast transient settling time: <40 µs within 100 mV, <80 µs within 20 mV
  • Integrated protective functions OVP, OCP and OTP prevent damage to the DUT
  • Configuration memory for 5 settings
  • Key lock function
  • Output ON / OFF function
  • Interfaces: USB, LAN, GPIB for external device control
  • Power supply: 90 to 264 V AC, 50/60 Hz
  • Dimensions: W 222 x H 86 x D 363 mm / weight: 4.2 kg
Scope of delivery:
  • Operating instructions (CD)
  • Quick start guide
  • Power cord
  • GTL-207A test leads, 1200 mm
  • GTL-204A test leads with alligator clips (max. 10 A)
  • GTL-203A test leads with European terminal (max. 3 A)

Technical Data

Documents & Downloads

Datasheet
pdf | 1.53 MB

Description

PPH-1503 DC power supply, dual output

Please Note: This device is currently delivered without GPIB interface.

With its high measurement resolution (up to 1 mV / 0.1 µA), the multi-functional DC power supply PPH1503 stands for high-precision power supply in electronics development and production. B. for device and component tests in the field of mobile communication, for consumer electronics or for battery tests.

The current source offers three current measuring ranges (5 A, 500 mA and 5 mA) and is suitable for precise pulse current measurements, so that you can, for example, determine the power consumption of a smartphone in the different operating modes without an additional oscilloscope. Low-power components such as laser diodes or IC can also be reliably evaluated. The constant current and constant voltage operation guarantees optimal control behavior even with rapid load changes, such as B. when changing a mobile device from standby to active mode.

The integrated digital voltmeter (0 to +20 V DC) enables you to carry out simultaneous voltage test measurements on your DUT during power supply, so that you do not need a separate measuring device. The DC power supply is also characterized by a high-speed transient correction time of 40 µs or faster (with a voltage drop of up to 100 mV). B. for simulation of batteries.
