GW Instek PLR60-12 | Power supply unit, DC, 1 channel 60V / 12A, 720W, RS232
Manufacturer number: PLR60-12
Delivery time upon request
€1,676.00
or choose one of the following options:
GW Instek PLR60-12 | DC laboratory power supply, 1 channel, 60 V, 12 A, 720 W.
- 1 channel DC power supply
- Output voltage: 0… 60 V
- Output current: 0… 12 A
- Output power: 720 W.
- Ripple and noise: CV P-P : 30 mV P-P | CV RMS : 0.5 mV RMS | CC RMS : 5 mA RMS
- Setting resolution: 10 mV | 10 mA
- Surge protection OVP | Undervoltage protection UVP | Overcurrent protection OCP
- Input voltage: 100 V AC… 240 V AC, 50 Hz ... 60 Hz
- Interfaces: RS-232C
- Warranty: 2 years
- Weight: 7.5 kg, dimensions: W 210 mm x H 139.5 mm x D 415.5 mm
Technical Data
AC input: | 100 V - 240 V |
---|---|
Additional functions: | Remote Sensing, Parallel und in Reihe erweiterbar |
Article number: | PLR60-12 |
Autorange: | No |
Bidirectional: | No |
DC output reversible: | DC Source |
Dimensions (L x W x H) (mm): | 415,5 x 210 x 139,5 |
Interfaces: | RS-232 Optional: USB, LAN, GPIB |
Model: | PLR60-12 |
Number of outputs: | 1 |
Protective devices: | OVP, OCP, UVP |
Warranty (years): | 2 |
Weight (kg): | 7.5 |
max. Power (A): | 6 |
max. Voltage (V): | 60 |
Documents & Downloads
Description
PLR60-12 | Power supply unit, DC, 1 channel 60V / 12A, 720W, RS232
The GW Instek DC laboratory power supplies of the PLR series are a consequent further development to better meet the requirements of the users. The high quality DC sources simplify and accelerate your processes. They are suitable for research and development, test methods and in the manufacturing process.
With its hybrid circuit design, the GW Instek PLR 60-12 combines the advantages of a linear and programmable switching power supply. The switch-mode power supply structure on the front reduces size and weight. The linear structure on the back guarantees low ripple and noise (0.5 mV RMS / 5 mA RMS ) as well as fast switching times (100 µs).
An RS-232 interface for a PC is installed as standard (USB, LAN, GPIB optionally available). Program sequence sequences with up to 100 steps and a minimum step duration of 50 ms on your computer. Save your 3 most frequently used settings directly on one of the quick access buttons and save yourself a lot of time. The automatic output-out timer can be set between 1 minute and 1000 hours 59 minutes. Of course, the PLR 60-12 has overvoltage, undervoltage and overcurrent protection. The Constant Current (CC) priority function prevents overshoot and inrush current. The DC power supply can be monitored remotely (terminal open). Voltage and current can be set using the digits on the display (coarse or fine setting can be selected). To avoid operating errors, the control panel has a lock function.
Connect up to 3 GW Instek PLR 60-12 in parallel (thus up to 60 V / 36 A can be implemented) or 2 devices in series (120 V / 12 A can be implemented).
With its hybrid circuit design, the GW Instek PLR 60-12 combines the advantages of a linear and programmable switching power supply. The switch-mode power supply structure on the front reduces size and weight. The linear structure on the back guarantees low ripple and noise (0.5 mV RMS / 5 mA RMS ) as well as fast switching times (100 µs).
An RS-232 interface for a PC is installed as standard (USB, LAN, GPIB optionally available). Program sequence sequences with up to 100 steps and a minimum step duration of 50 ms on your computer. Save your 3 most frequently used settings directly on one of the quick access buttons and save yourself a lot of time. The automatic output-out timer can be set between 1 minute and 1000 hours 59 minutes. Of course, the PLR 60-12 has overvoltage, undervoltage and overcurrent protection. The Constant Current (CC) priority function prevents overshoot and inrush current. The DC power supply can be monitored remotely (terminal open). Voltage and current can be set using the digits on the display (coarse or fine setting can be selected). To avoid operating errors, the control panel has a lock function.
Connect up to 3 GW Instek PLR 60-12 in parallel (thus up to 60 V / 36 A can be implemented) or 2 devices in series (120 V / 12 A can be implemented).
Lieferumfang
- Power supply unit, power cord, cover for rear outputs, fastening material, output cable, documentation (manual) on CD
- PLR-GU GPIB / USB interface

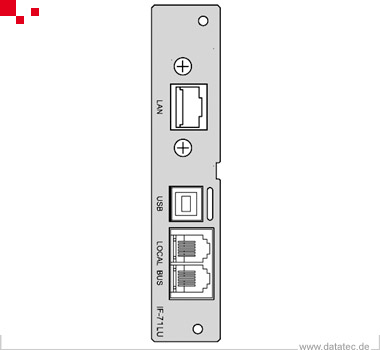

- PLR-LU LAN / USB interface

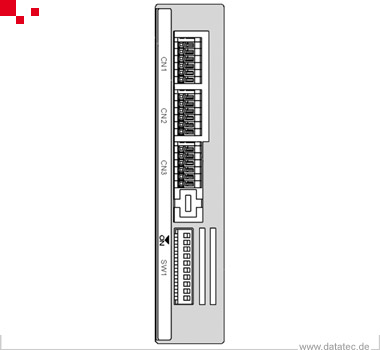

- PLR-ARC analog interface
- PLR-001 signal cable, parallel connections (2-3 units)
- PLR-002 signal cable, serial connection
- GRA-427 rack mounting adapter
- GTL-246 USB cable (1.2 m)
- GTL-248 GPIB cable (2.0 m)
- GTL-521 GPIB-USB-HS (High Speed)
- GRJ-1101 Modular Cable 0.5 m
- GRJ-1102 Modular Cable 1.5m
