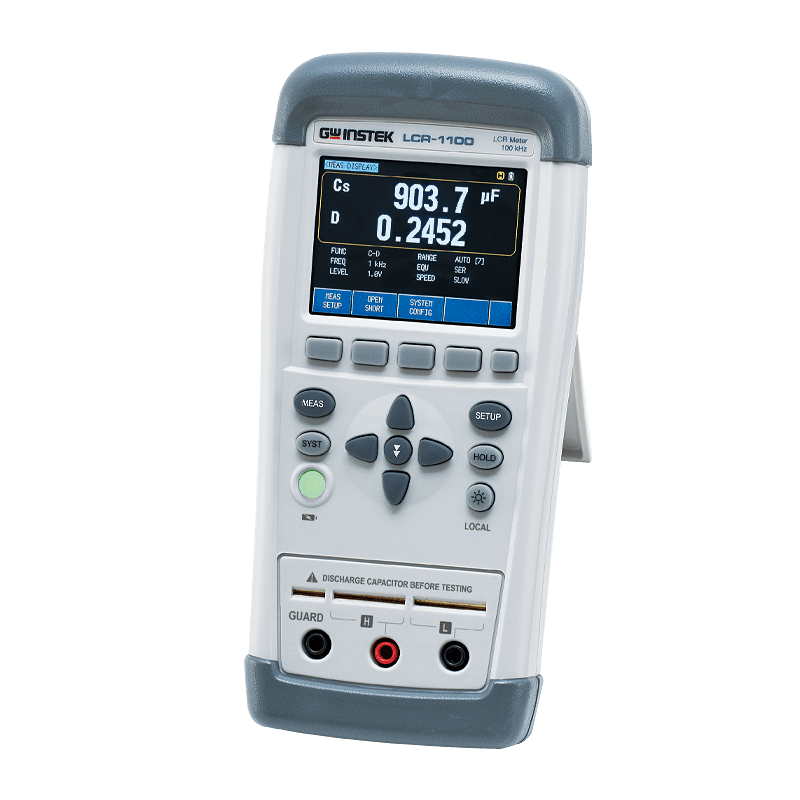

GW Instek LCR-1100 | LCR meter, handheld, 50 Hz - 100 kHz, LCR-1000 series

Manufacturer number: LCR-1100

GW Instek LCR-1100 | LCR meter, handheld, 50 Hz - 100 kHz, LCR-1000 series.

  • Display: 2.8" TFT Touch LCD
  • Resolution: 50,000 counters for main and secondary parameters
  • Basic accuracy: 0.2%
  • Test frequencies: Six or eight selectable test frequencies, depending on the model
  • Measurement combinations: 15 types of measurement combinations available
  • Test level: Selectable: AC 0.3V/0.7V/1Vrms and DC +/- 1V
  • Measuring speed: Selectable: Fast 10 times/s, Slow 2 .5 times/s
  • Test parameters: C-D, C-Q, C-R, L-D, L-Q, L-R, L-Rdc, R-Q, R-X, R-Rdc, Rdc, Z-D, Z-Q, Z- θr, Z-θd
  • Equivalent circuits: series / parallel selectable
  • Interfaces: USB-HID and USB-VCOM

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Description

LCR-1100 | LCR meter, handheld, 50 Hz - 100 kHz, LCR-1000 series

The GW Instek LCR-1000 series LCR meters are portable LCR meters with automatic real-time test function. The devices have 50,000 display values for main and auxiliary parameters with a basic accuracy of 0.2%. 2-wire or 5-wire measurement is supported. In addition, the series also provides comparison and data retention functions to meet various test and measurement requirements for different types of components.

The LCR-1000 series includes 2 models. The LCR-1100 offers a test frequency of up to 100 kHz and the LCR-1010 offers a test frequency of up to 10 kHz. The series offers selectable test voltages (0.3/0.7/1.0 Vrms) and equivalent circuits (series/parallel) to automatically measure capacitance, inductance, resistance, reactance, impedance, quality factor, dissipation factor, phase and DC resistance.

The devices have a TFT-LCD display. They can choose whether to use buttons or touchscreen controls. The LCR meters are suitable for precision testing, including maintenance testing, component production, schools/research institutes and even quality testing.

Accessoires (1 product )

GW Instek LCR-108
Test Fixture (Tweezers) for LCR-1000 series
Delivery time upon request
€122.00

Alternate products (1 product )

GW Instek LCR-1010
LCR meter, handheld, 50 Hz - 10 kHz, LCR-1000 series
Delivery time upon request
€343.00

About the Manufacturer

GW Instek
GW Instek was founded in 1975 as Good Will Co. Ltd in Taiwan. Since the beginning, the company has specialized in the development and production of electronic test and measurement equipment. The first product focus was power supplies. Today, Good Will has more than 300 different products from the fields of oscilloscopes, spectrum analyzers, signal generators, digital multimeters and LCR measuring instruments in its program.

Good Will has been listed on the Taiwan Stock Exchange since 2000. Development and production focus on high quality and low cost measuring instruments for production, laboratory and education. Headquartered in Taipei, Good Will has subsidiaries in China, America, Japan, Korea and Malaysia. The products are sold in over 80 countries.
