GW Instek GPS-2303 | Power supply unit, DC, 2 channels, linear 2x 30V / 3A, 180W

Name: GPS-2303 | Power supply unit, DC, 2 channels, linear 2x 30V / 3A, 180W
Brand: GW Instek
SKU: GPS-2303
Price: 320.0 EUR
Availability: InStock

Manufacturer number: GPS-2303

Delivery time upon request

€320.00

or choose one of the following options:

Request a quote Product inquiries Request education-price

GW Instek GPS2303 | 2-channel power supply with two outputs 0 to 30 V DC / 3 A. Total output power 180 watts.

longitudinally controlled (linear)
4mm safety sockets on the front
2 independent outputs 0-30 V DC, 0-3 A
- results in 0-60 V, 0-3 A in series operation and 0-30 V, 0-6 A in parallel operation
Tracking operation
On-off switch for voltage output
Regulation for continuous and dynamic loads
4-way LED display, 3 digits switchable
Overload and reverse polarity protection
Constant U and Constant I
Low ripple and low noise (at constant voltage: <1 mVrms 5 Hz ~ 1 MHz)
Master-slave operation possible
temperature controlled fan
Selectable connection voltage: AC 100 V / 120 V / 220 V + 10%, 230 V + 10% ~ -6%, 50/60 Hz
Weight 7 kg
Dimensions: W 255 mm x H 145 mm x D 265mm

Technical Data

AC input:	100 V / 120 V / 220 V
Article number:	01PS230310GS
Autorange:	No
Bidirectional:	No
Dimensions (L x W x H) (mm):	265 x 255 x 145
Model:	GPS-2303
Number of outputs:	2
Output power (W):	200
Protective devices:	OLP, Reverse Polarity P
Warranty (years):	2
Weight (kg):	7
max. Power (A):	3
max. voltage (V):	30

Documents & Downloads

Datasheet

pdf | 1.67 MB

Description

GPS-2303 | Power supply unit, DC, 2 channels, linear 2x 30V / 3A, 180W

The linear laboratory power supply GPS-2303 offers 2 independent outputs that can be operated in series as well as in parallel.

Lieferumfang

Power supply
German power cord
Operating manual (English)
4 sets of red, black test leads with alligator clips
1 connection cable
Calibration certificate

Alternate products (2 products)

GW Instek

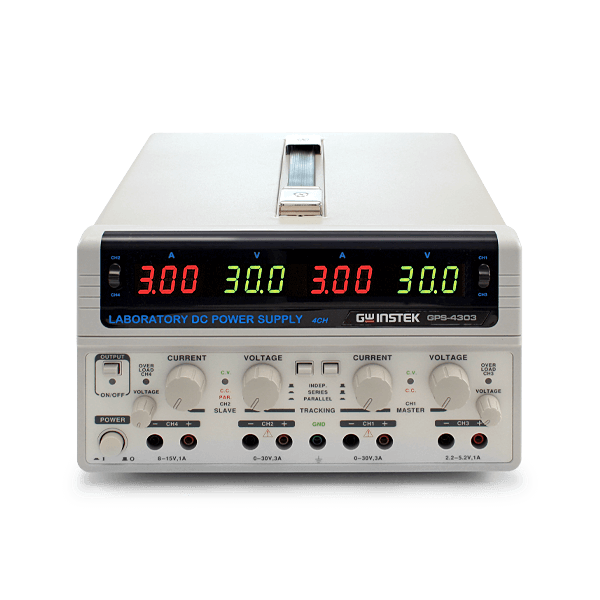

GPS-4303 DC power supply, 4-channel

2 in stock. Ready to ship in 1 business day

€391.00

GW Instek
GPS-3303

Power supply unit, DC, 3 channel, linear 2x 30V / 3A, 1x 5V / 3A fix, 195W

Delivery time upon request

€362.00

About the Manufacturer

GW Instek

GW Instek was founded in 1975 as Good Will Co. Ltd in Taiwan. Since the beginning, the company has specialized in the development and production of electronic test and measurement equipment. The first product focus was power supplies. Today, Good Will has more than 300 different products from the fields of oscilloscopes, spectrum analyzers, signal generators, digital multimeters and LCR measuring instruments in its program.

Good Will has been listed on the Taiwan Stock Exchange since 2000. Development and production focus on high quality and low cost measuring instruments for production, laboratory and education. Headquartered in Taipei, Good Will has subsidiaries in China, America, Japan, Korea and Malaysia. The products are sold in over 80 countries.
