GW Instek GPM-8213-GPIB | Power meter, 1 channel, USB, RS232, LAN, GPIB, 600V / 75mW-12kW, DC, 45Hz - 6kHz

Manufacturer number: GPM-8213-GPIB

GW Instek GPM-8213-GPIB
GW Instek GPM-8213-GPIB
GW Instek GPM-8213-GPIB
GW Instek GPM-8213-GPIB
GW Instek GPM-8213-GPIB
GW Instek GPM-8213-GPIB
Delivery time upon request

On Request

This product cannot be retrofitted!
or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

GW Instek GPM8213-GPIB | Single-phase power tester / AC / resolution 1 mW and 0.1 µA / bandwidth DC ~ 6 kHz / basic accuracy 0.1% / 19 measurement parameters.

  • 19 measurement parameters for extensive applications:
    - voltage parameters Vrms / V + pk / V-pk
    - Current parameter Arms / I + pk / I-pk
    - Frequency parameters VHz / IHz
    - Power parameters P / P + pk / P-pk, apparent power VA, reactive power VAR, power factor PF (power factor)
    - CFV / CFI crest factor parameters
    - phase angle DEG
    - Total Harmonic Distortion THDV / THDI
  • Additional integral functions: performance vs. Time / current vs. time
  • Compliant with standby power measurements according to IEC 62301
  • Basic accuracy ± 0.1% of the reading value + ± 0.1% of the measuring range
  • Precise measurements with a power resolution of 1 mW and a current resolution of 0.1 µA
  • Current / voltage range DC ~ 6kHz
  • Current measuring ranges: (CF = 3) 5 mA, 10 mA, 20 mA, 100 mA, 200 mA, 1 A, 2 A, 10 A, 20 A or (CF = 6 for half the measuring range) 2.5 mA, 5 mA, 10 mA, 25 mA, 50 mA, 100 mA, 0.5 A, 1 A, 2.5 A, 5 A, 10 A
  • Voltage measuring ranges: (CF = 3) 15 V, 30 V, 60 V, 150 V, 300 V, 600 V or (CF = 6 for half the measuring range) 7.5 V, 15 V, 30 V, 75 V, 150 V, 300 V.
  • Front test connections
  • 4-inch TFT display (10 cm screen diagonal)
  • 2 display modes: "Standard" for 2 main measured variables and 6 subordinate measured values and "Simple representation" for 4 measured variables

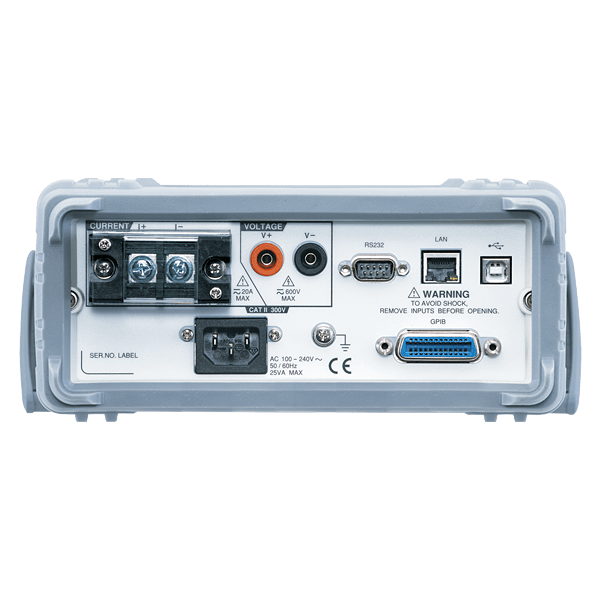

  • Standard interfaces: RS-232C, USB (Device), LAN, GPIB
  • Optional test adapter GPM-001
  • Power supply: AC 100 ~ 240 V / 50 ~ 60 Hz
  • Dimensions: W 270 x H 110 x D 350 mm
  • Weight: approx.2.9 kg
  • Delivery accessories: Safety data sheet, power cord, test lead GTL-209, CD-ROM with manual and USB driver
  • 2 year guarantee

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 1.82 MB

Description

GPM-8213-GPIB | Power meter, 1 channel, USB, RS232, LAN, GPIB, 600V / 75mW-12kW, DC, 45Hz - 6kHz

With the AC power meter GPM-8213, GW Instek offers an efficient solution for precise voltage, current and power measurement in various areas. With a total of 19 measurement parameters for standard applications and integral functions, inter alia inrush currents, power consumption, harmonics and voltage fluctuations can be determined, for example when checking electrical drives, network quality or network feedback.

The GPM-8213 performance tester is a reliable support tool for standby power measurements in accordance with IEC 62301 / EN 50564. For this purpose it offers a frequency range from 0 to 6 kHz, a resolution of the current or power of 0.1 µA and 1 mW, a crest factor of 3 for "distorted" curves (or CF = 6 for half the measuring range) and the analysis function of the harmonics up to at least the 13th harmonic (THD). For measurement applications with higher voltages and currents, the division ratio can be set on the GPM-8213 when operating with a transformer.

The clear TFT display allows two different display modes, so that the essential parameters can be optimally read and understood depending on the measurement application: The "simple display" shows four fundamental measurement parameters to meet the special requirements regarding measurement accuracy and clarity during the production process. The extended "standard mode" represents the two main measurement parameters of interest as well as six subordinate measurement values to complete the measurement results and thus fulfills the special test requirements in the areas of research and development, design or quality control.
