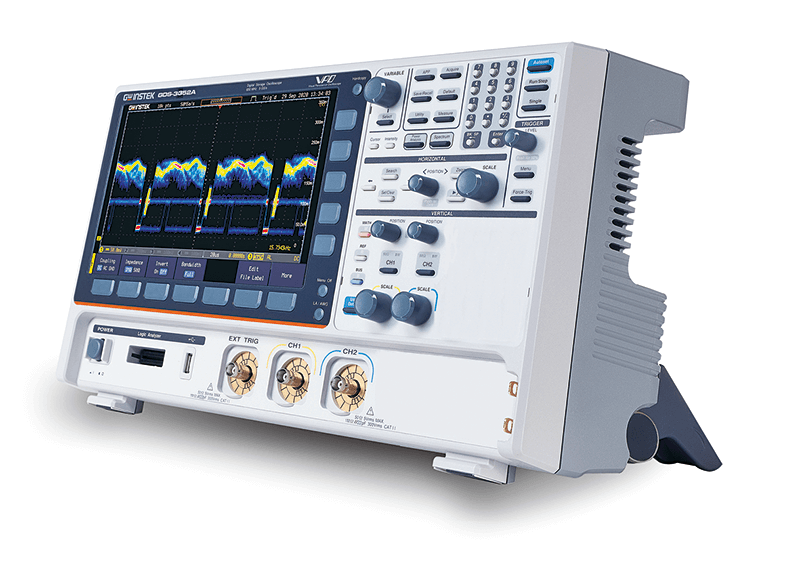

GW Instek GDS-3352A | Oscilloscope, DSO, 2 channel, 350 MHz, 5 GSa/s, 200 Mpts, 200,000 wfm/s, GDS-3000A series

Manufacturer number: GDS-3352A

GW Instek GDS-3352A | Oscilloscope, DSO, 2 channel, 350 MHz bandwidth, up to 5 GSa/s sampling rate, 200 Mpts memory per channel, 200,000 wfm/s update rate, GDS-3000A series.

  • Bandwidth: 350MHz
  • Channels: 2 analog channels
  • 10.2 inch TFT LCD color display with 800x480 pixels
  • Vertical resolution: 8 bit (12 bit in Hi Res)
  • Memory depth: 200 Mpts per channel
  • Update rate: 200,000 wfm/s
  • Sample Rate: 5 GSa/s (1 channel) / 2.5 GSa/s (2 channel)
  • Trigger: I2C/UART/CAN/LIN Serial Bus trigger and decode
  • Measuring functions: 38 automatic measuring functions / other measuring functions optionally available
  • Integrated arbitrary function generator: 2 channel, 25 MHz
  • Integrated spectrum analyzer: 2 channel, DC ~ 2.5GHz with spectrogram
  • Optional logic analyzer: 16 channel
  • Interfaces: Standard: USB/LAN/RS-232 / Optional: GPIB
  • Dimensions (H x W x D): 253mm x 420mm x 113.8mm
  • Weight: approx. 4.6 kg

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Description

GDS-3352A | Oscilloscope, DSO, 2 channel, 350 MHz, 5 GSa/s, 200 Mpts, 200,000 wfm/s, GDS-3000A series

The digital storage oscilloscope (DSO) GDS-3352A of the GW Instek GDS-3000A series has 2 analog channels, a 2.5 GHz spectrum analyzer and a 2-channel arbitrary generator with 25 MHz. Optionally, you can get a 16-channel logic analyzer for the GDS-3352A. The GDS-3000A series oscilloscopes have a memory depth of up to 200 Mpts per channel, a sampling rate of 5 GSa/s (1 channel) and 2.5 GSa/s (2 channels). The 10.2" TFT LCD color display allows you to clearly analyze all signals.

The GDS-3352A has a USB, LAN and RS-232 interface as standard. A GPIB connector is optionally available.

You can get the GW Instek oscilloscopes of the GDS-3000A series in addition to the variant with 350 MHz bandwidth presented here as an oscilloscope with 650 MHz (item no.: GDS-3652A).

Lieferumfang

  • oscilloscope
  • User manual on CD
  • power adapter
  • 1 x 10:1 probe per channel
