GW Instek APS-7100E AC source 1000 VA, 310 V

Manufacturer number: APS-7100E

APS-7100E AC source 1000 VA, 310 V
APS-7100E AC source 1000 VA, 310 V
APS-7100E AC source 1000 VA, 310 V
APS-7100E AC source 1000 VA, 310 V
Delivery time upon request

€2,431.00

or choose one of the following options:
Request a quote Product is already in cart Product downloads Product inquiries Request education-price % Additional offers for this product
Highlights Technical Data Documents / Downloads Description Scope Related Articles

GW Instek APS-7100E | Programmable AC source, 1000 VA output power, 0 to 310 V AC, 45 to 500 Hz, for simulating AC supply networks.

  • Programmable AC power supply, linear controlled, 1 output
  • Output power: 1000 VA
  • Output voltage: 0 - 155 Vrms / 0 - 310 Vrms / Auto-Range AC
  • Output current: 8.4 A / 4.2 A
  • Output frequency: 45 - 500 Hz
  • Resolution: 0.01 V (at 0 - 99.99 Vrms) / 0.1 V (at 100 - 310 V)
  • Programmable voltage surges and dips
  • 6 measurement functions: RMS voltage, RMS current, peak current, frequency, power, power factor
  • 10 settings for the simulation of output power transients (test mode)
  • Storage of 10 device user settings
  • Integrated protection functions: OCP, OPP and OTP
  • Dimensions: W 430 x H 88 x D & 560 mm (2 U in the rack). Weight: 38 kg
  • 2 year guarantee

Technical Data

Documents & Downloads

Datasheet
pdf | 0.35 MB

Description

APS-7100E AC source 1000 VA, 310 V

With the programmable AC source APS-7100E from GW Instek you get the economy version of the AC power source APS-7000. The E series offers you six measurement and test functions (Vrms, Irms, F, Ipk, W, PF) and an output power of 1000 VA. Your user interface is based on the GPM-8213 AC power meter from GW Instek, which you can use when setting up an efficient and user-friendly test environment for the development of electronic components, e.g. B. supported in the LED industry or for entertainment and automotive electronics.

The APS-7000E series provides you with a stable AC power source with an intelligent test mode that simulates various transient input voltages and frequencies, e.g. B. power failure, voltage drop or rise to evaluate the impact of such transient events on an electronic product and thus meet the test requirements for line voltage fluctuations.

Lieferumfang

  • Operating instructions (CD)
  • GTL-123 test leads
  • Terminal cover
  • Power cord

Accessoires (6 products)

APS-001
GW Instek
APS-001
Interface GPIB APS-7000 series AC sources (Except APS-7000E)
Delivery time upon request
€296.00
GRA-423
GW Instek
GRA-423
19 inch rack, 2U, with handles for APS-7050/7100
Delivery time upon request
€120.00
APS-004
GW Instek
APS-004
Output frequency option 45 - 999.9 Hz for AC sources of the APS series
Delivery time upon request
€357.00
APS-002
GW Instek
APS-002
Interface RS232 / USB APS-7000 series AC sources (Except APS-7000E)
Delivery time upon request
€120.00
APS-003
GW Instek
APS-003
Option to increase the output voltage to 0 ... 600Vrms for AC sources of the APS series
Delivery time upon request
€357.00
APS-7100 AC source 1000 VA, 310 V
GW Instek
APS-7100 AC source 1000 VA, 310 V
Delivery time upon request
€2,805.00 €3,300.00

Alternate products (4 products)

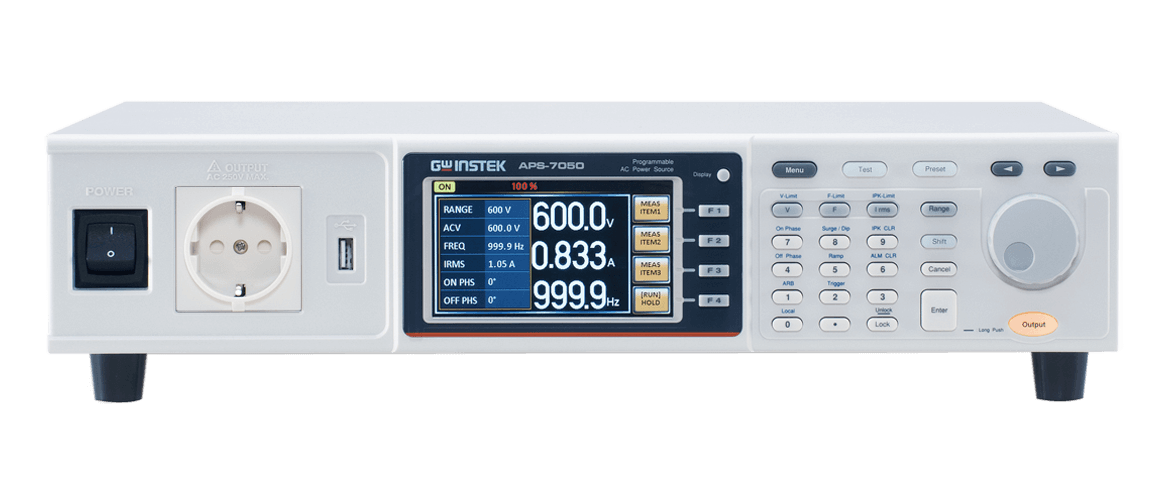

APS-7050 AC source 500 VA, 310 V
GW Instek
APS-7050 AC source 500 VA, 310 V
Delivery time upon request
€2,110.55 €2,483.00
APS-7100 AC source 1000 VA, 310 V
GW Instek
APS-7100 AC source 1000 VA, 310 V
Delivery time upon request
€2,805.00 €3,300.00
61601
Exclusive
Chroma
61601
AC source, 500 VA, 300 V, 15 to 1 kHz
Delivery time upon request
€3,250.00
Anniversary Deal AC01012
Sale
Anniversary
dataTec
Anniversary Deal AC01012
Software NI LabVIEW+ 6-month Full License with new Hardware Purchase at a Special Price
On Request

Recommendations (4 products)

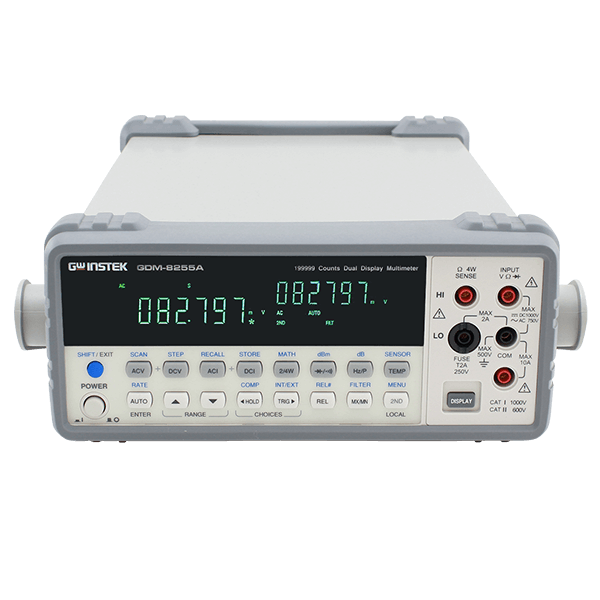

GDM-8255A
