Gossen Metrawatt Z207R | METRAFLEX 3001 XBL / 36, for Mavowatt series 30/300/3000 A sensor length 91 cm

Manufacturer number: Z207R

Gossen Metrawatt Z207R
Ready to ship in 5 to 10 business days

€739.00

or choose one of the following options:
Product inquiries % Additional offers for this product
Highlights Description Related Articles

Gossen Metrawatt Z207R | METRAFLEX 3001XBL Flexible current sensor 30/300/3000 AAC with a loop length of 91 cm.

  • Wide area of application, 3 measuring ranges 30 A / 300 A / 3000 A AC and high bandwidth 10 Hz ... 10 kHz for harmonic analysis
  • Accurate measurement even at low currents, thanks to the large dynamic range and high sensor sensitivity
  • Low position influence of the conductor and minimal external field influence
  • Easy to use in confined spaces thanks to the small sensor cross-section 9.9 mm and slim end cap 13.6 mm
  • Safe handling even with protective gloves, opening the sensor and measuring range setting in one-hand operation
  • Extremely long battery life up to 2000 h
  • External supply for long-term measurement via optional plug-in power supply see equipment
  • MAVOWATT 230, 240, 270, 270-400: Supply takes place via the MAVOWATT, no additional accessories required
  • Current sensor with protection class IP65, measuring amplifier with IP40
  • High level of safety for the user, measurement category 1000 V @ CATIII, 600 V @ CATIV and unlimited overload capacity

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

Z207R | METRAFLEX 3001 XBL / 36, for Mavowatt series 30/300/3000 A sensor length 91 cm

The flexible current sensors are designed for use with MAVOWATT or any measuring instruments with 1.5 V AC measuring input and Hypertronics connector.

With the MAVOWATT 230, 240 and MAVOWATT 270, 270-400 devices, the sensors are supplied directly by the mains analyzer.

They can be placed around one or more conductors of any design (insulated cables, pipes, busbars). For autonomous operation of the measuring amplifier, it is powered by internal batteries.

Accessoires (16 products )

Gossen Metrawatt Z817T
Gossen Metrawatt Z817T

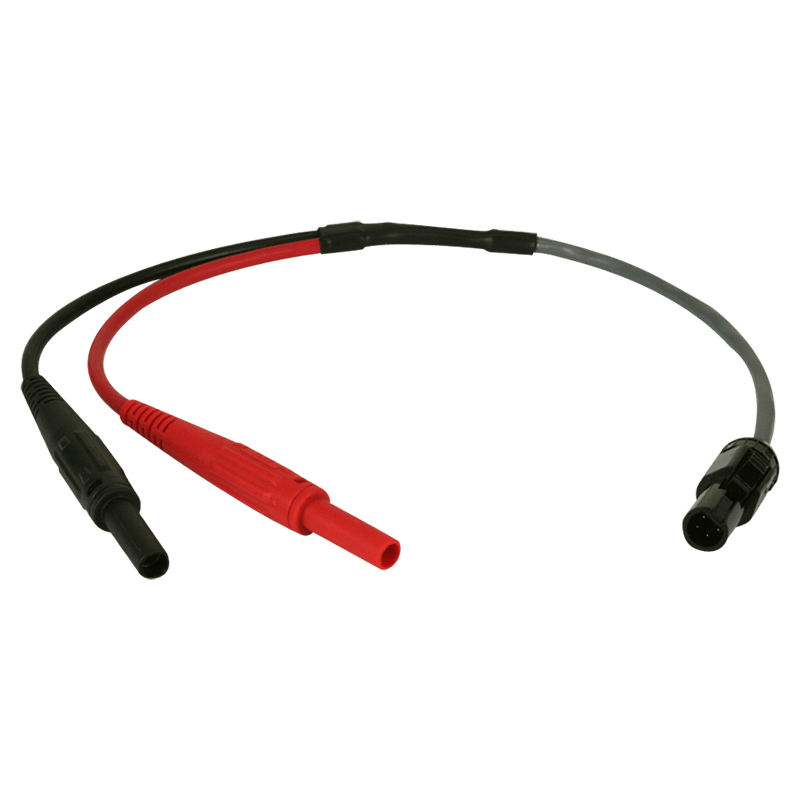

Adapter for 4 mm plug for MAVOWATT 230, 240, 270
Ready to ship in 5 to 10 business days
€125.00
Gossen Metrawatt M820J
Gossen Metrawatt M820J
Mavowatt 270 set power analyzer with current clamps 4 x Metraflex 300MXBL (3/30 / 300A)
Delivery time upon request
€13,967.00
Gossen Metrawatt M820O
Gossen Metrawatt M820O
Mavowatt 240 set power analyzer with clamps 4 x TR2510B (1 to 10A)
Ready to ship in 5 to 10 business days
€8,591.00
Gossen Metrawatt M820L
Gossen Metrawatt M820L
Mavowatt 270-400 set mains analyzer, current clamps 1 x Metraflex 3003XBL, 1 x Metraflex 3001XBL
Delivery time upon request
€18,165.00
Gossen Metrawatt M820D
Gossen Metrawatt M820D
Mavowatt 230 set mains analyzer with current clamps 1 x Metraflex 3003XBL, 1 x Metraflex 3001XBL
Delivery time upon request
€6,491.00
Gossen Metrawatt M820G
Gossen Metrawatt M820G
Mavowatt 270 set power analyzer with current clamps 1 x Metraflex 3003XBL, 1 x Metraflex 3001XBL
Delivery time upon request
€13,444.00
Gossen Metrawatt M820C
Gossen Metrawatt M820C
Mavowatt 270 mains analyzer basic device
Ready to ship in 5 to 10 business days
€12,525.00
Gossen Metrawatt M820A
Gossen Metrawatt M820A
Mavowatt 230 mains analyzer basic device
Delivery time upon request
€5,573.00
Gossen Metrawatt M820M
Gossen Metrawatt M820M
Mavowatt 270-400 set power analyzer, current clamps 4 x Metraflex 300MXBL (3/30 / 300A)
Delivery time upon request
€18,690.00
Gossen Metrawatt M820N
Gossen Metrawatt M820N
Mavowatt 230 set mains analyzer with current clamps 4 x TR2510B (1 to 10A)
Delivery time upon request
€6,491.00
Gossen Metrawatt M820P
Gossen Metrawatt M820P
Mavowatt 270 set power analyzer with current clamps 4 x TR2510B (1 to 10A)
Ready to ship in 5 to 10 business days
€13,444.00
Gossen Metrawatt M820Q
Gossen Metrawatt M820Q
Mavowatt 270-400 set power analyzer, current clamps 4 x TR2510B (1 to 10A)
Delivery time upon request
€18,165.00
Gossen Metrawatt M820H
Gossen Metrawatt M820H
Mavowatt 230 set mains analyzer with current clamps 4 x Metraflex 300MXBL (3/30 / 300A)
Delivery time upon request
€7,017.00
Gossen Metrawatt M820I
Gossen Metrawatt M820I
Mavowatt 240 set power analyzer with current clamps 4 x Metraflex 300MXBL (3/30 / 300A)
Delivery time upon request
€9,115.00
Gossen Metrawatt M820F
Gossen Metrawatt M820F
Mavowatt 240 set mains analyzer with current clamps 1x METRAFLEX 3003XBL, 1x METRAFLEX 3001XBL
Delivery time upon request
€8,591.00
Gossen Metrawatt M820B
Gossen Metrawatt M820B
Mavowatt 240 mains analyzer basic device
Delivery time upon request
€7,673.00

Alternate products (9 products )

Gossen Metrawatt Z817A
Gossen Metrawatt Z817A

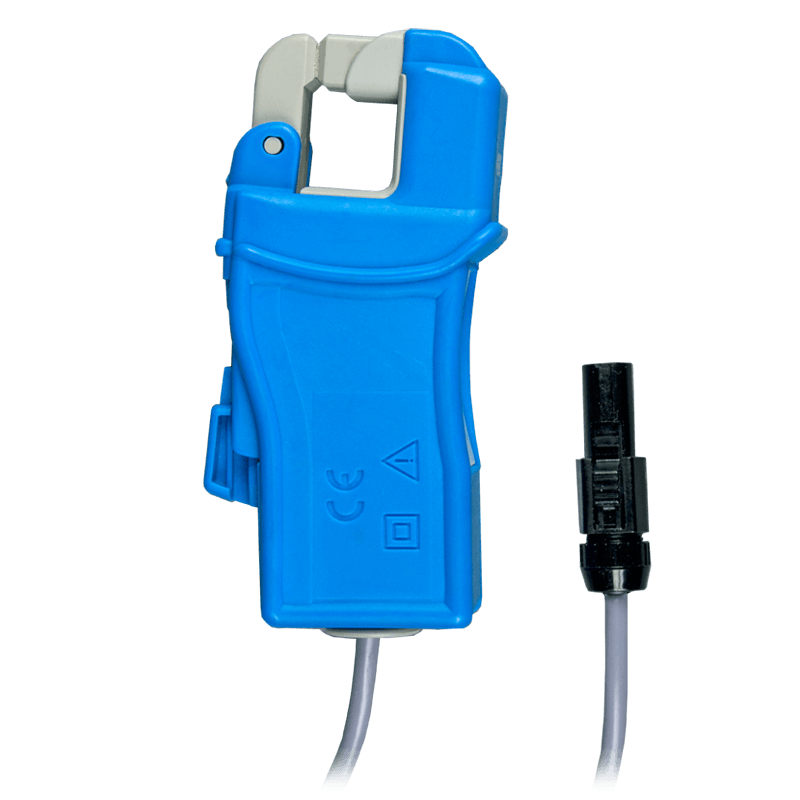

TR-2510A Current Clamp AC, 40Hz-10kHz, 1-10A
Ready to ship in 5 to 10 business days
€445.00
Gossen Metrawatt Z207W
Gossen Metrawatt Z207W
METRAFLEX 3003 XBL / 36, for Mavowatt series 30/300/3000 A sensor length 91 cm
Delivery time upon request
€1,317.00
Gossen Metrawatt Z817B
Gossen Metrawatt Z817B

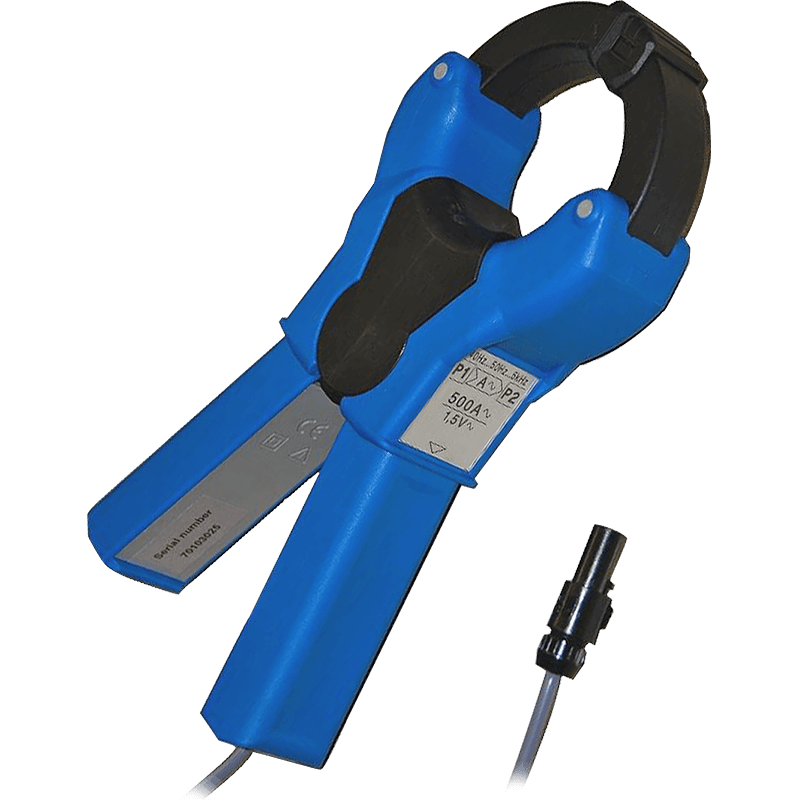

TR-2500A current clamp AC, 40Hz-10kHz, 10-500A
Delivery time upon request
€433.00
Gossen Metrawatt Z207Y
Gossen Metrawatt Z207Y

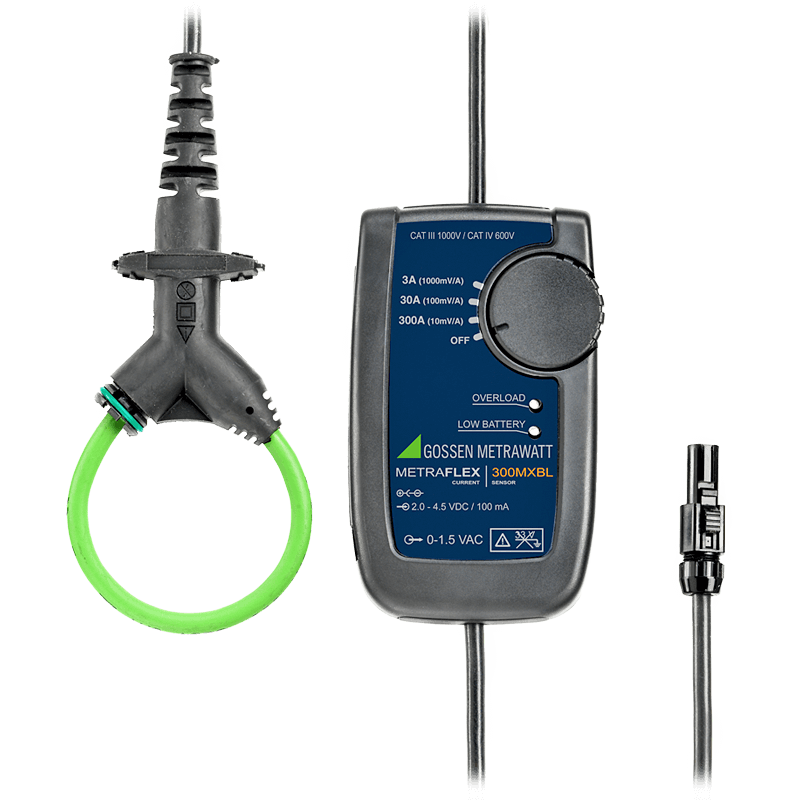

METRAFLEX 300MXBL / 3 current clamp 3/30/300 sensor length 22 cm, for Mavowatt series
