Gossen Metrawatt M708E | Secutest ST BASE 10 DB+ Comfort, VDE device tester, incl. IZYTRON.IQ Business Professional

Manufacturer number: M708E

M708E
M708E
M708E
M708E
M708E
M708E
M708E
M708E
M708E
M708E
M708E
M708E
M708E
M708E
M708E
M708E
M708E
M708E
M708E
M708E
M708E
9 in stock. Ready to ship in 1 business day

€2,899.00

or choose one of the following options:
Request a quote Product downloads Product inquiries % Additional offers for this product
Highlights Documents / Downloads Description Scope Related Articles

Gossen Metrawatt M708E | Secutest ST BASE 10 DB+ Comfort, device tester, VDE 0701 / 0702 / 0751 / 0544-4 test device incl. IZYTRON.IQ Business Professional.

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

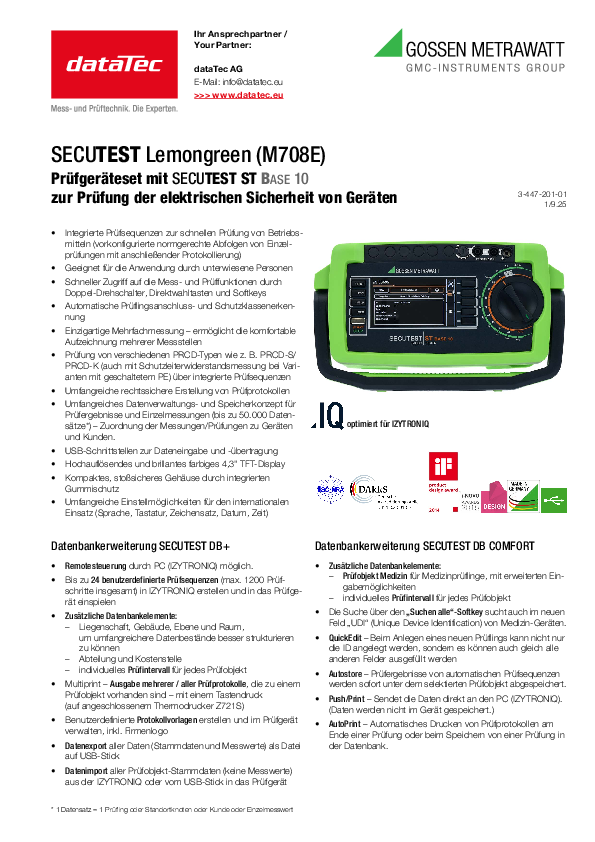

Datasheet
pdf | 0.78 MB
Userguide
pdf | 3.34 MB

Description

M708E | Secutest ST BASE 10 DB+ Comfort, VDE device tester, incl. IZYTRON.IQ Business Professional

Standard test device set for testing the electrical safety of devices, in particular to comply with DGUV regulation 3 and MPBetreibV including data processing software IZYTRONIQ test device set with SECUTEST ST BASE10 with DB+ and database comfort for testing electrical devices, medical devices and welding devices - both with predefined and programmable ones Test sequences that are necessary according to the latest test standards DIN EN 50678 (VDE 0701), DIN EN 50699 (VDE 0702), IEC/EN 62353 (VDE 0751) and IEC/EN 60974-4 (VDE 0544-4). The set is particularly suitable for testing tasks within the framework of DGUV regulation 3 and MPBetreibV, which enable professional recording of the test objects and documentation of the test.

  • Integrated test sequences for quick testing of equipment (preconfigured standard-compliant sequences of individual tests with subsequent logging)
  • Suitable for use by instructed persons
  • Test current 10A for R-PE measurement
  • Report generation in HTML on USB memory
  • Convenient database functions for managing test objects
  • Create up to 24 user-defined test sequences (max. 1200 test steps in total) in IZYTRONIQ and load them into the test device
  • Data export of all data (master data and measured values) as a file on a USB stick
  • Data import of all test object master data (no measured values) from the IZYTRONIQ or from the USB stick to the test device
  • Autostore – test results from automatic test sequences are saved immediately under the selected test object.
  • Push/Print – Sends the data directly to the PC (e.g. IZYTRONIQ)
  • AutoPrint – Automatic printing of test reports (to printer or USB memory) at the end of a test or when saving a test to the database.
  • individual test interval for each test object

E.g. tests in industrial companies, public institutions, authorities, companies using electric tools and/or three-phase devices, hospitals, universities, service providers for DGUV A3 and MPBetreibV, etc.

Lieferumfang

  • 1x SECUTEST ST BASE10 DB+ COMFORT
  • 1x CARRYING BAG F2000
  • 1x EL1 adapter
  • 1x SK2 probe 2m
  • 1x barcode reader 1D with USB connection
  • 1x IZYTRONIQ BUSINESS Professional
