Gossen Metrawatt M537L | PROFiTEST MF XTRA master set including test probes, Vario plug, fuse finder and much more
Manufacturer number: M537L
€3,655.00
Gossen Metrawatt M537L | PROFiTEST MF XTRA master set including test probes 600 V CAT III, Vario plug set, METRAFUSE FD PRO fuse finder, PRO-W plug insert, transport case and IZYTRONIQ BUSINESS Professional software.
Technical Data
All-current sensitive RCDs type B, B+: | Yes |
---|---|
Article number: | M537L |
Automatic test sequence: | Yes |
Check residual voltage: | Yes |
Counter start-up: | Yes |
DIN VDE 0100 / IEC 60364-6: | Yes |
Dimensions (L x W x H) (mm): | 267 x 330 x 90 |
Insulation measurement 50V: | Yes |
Insulation measurement 100V: | Yes |
Insulation measurement 250V: | Yes |
Insulation measurement 325V: | Yes |
Insulation measurement 500V: | Yes |
Insulation measurement 1000V: | Yes |
Interfaces: | USB |
Measured value memory: | 50000 |
Mobile: | Yes |
Model: | PROFITEST MXTRA Meister Set |
Rotating field direction: | Yes |
Selective, SRCDs, PRCDs, type G/R: | Yes |
Software included: | Izytroniq |
Stationary: | No |
Touch Display: | No |
Voltage drop: | Yes |
Warranty (years): | 10 |
Weight (kg): | 2.7 |
e-Mobility (prepared): | Yes |
Documents & Downloads
Description
M537L | PROFiTEST MF XTRA master set including test probes, Vario plug, fuse finder and much more
The Gossen Metrawatt PROFITEST MF XTRA supports you in testing the effectiveness of protective measures on stationary electrical installations in accordance with E-CHECK / DIN VDE 0100-600 / VDE 0413 / VDE 0105-100.
Protective measures in electrical systems are intended to protect human life from accidents involving electricity and thus ensure its integrity. Of course, they should also protect material values from damage caused by electricity. Every electrical installation must be tested with this VDE test device before it is put into operation for the first time and then at regular intervals for the effectiveness of the existing electrical protective measures. Your advantage: low-impedance, insulation, earth resistance, site insulation, loop and network impedance measurement and legally compliant documentation in one test device.
In addition to the installation tester, the PROFITEST MF XTRA Master Set M537L also includes a set of test probes 600 V CAT III for measuring in controllers, a set of self-adhesive test probes Vario plug for connecting e.g. B. to CEE, Perilex sockets, the METRAFUSE FD PRO fuse finder for identifying fuses and miniature circuit breakers, the professional case with internal divisions for PROFITEST and accessories, and the IZYTRONIQ BUSINESS PROFESSIONAL software including cloud voucher.
Lieferumfang
- PROFiTEST MF XTRA
- Set-Probes – special test prods 600 V CAT III for measurements in controls
- Vario connector set: Three self-retaining test probes
- PRO-W - angled Schuko plug insert
- Professional case: Case with interior division
- IZYTRONIQ BUSINESS Professional + cloud voucher

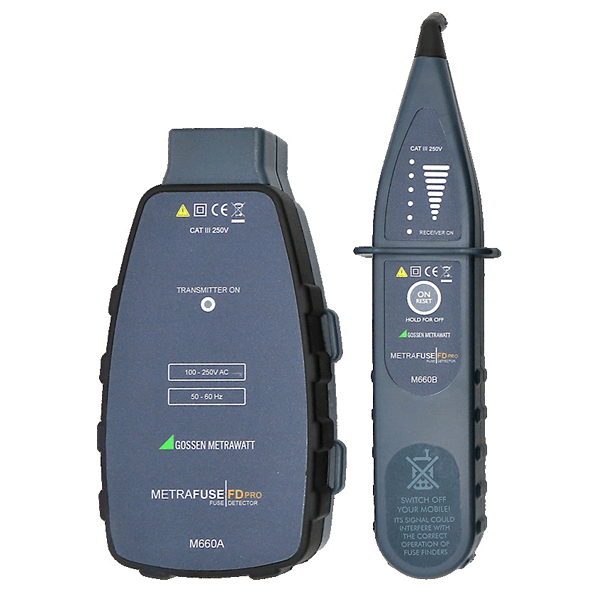

- METRAFUSE FD PRO - Fuse finder for identifying fuses and miniature circuit breakers
