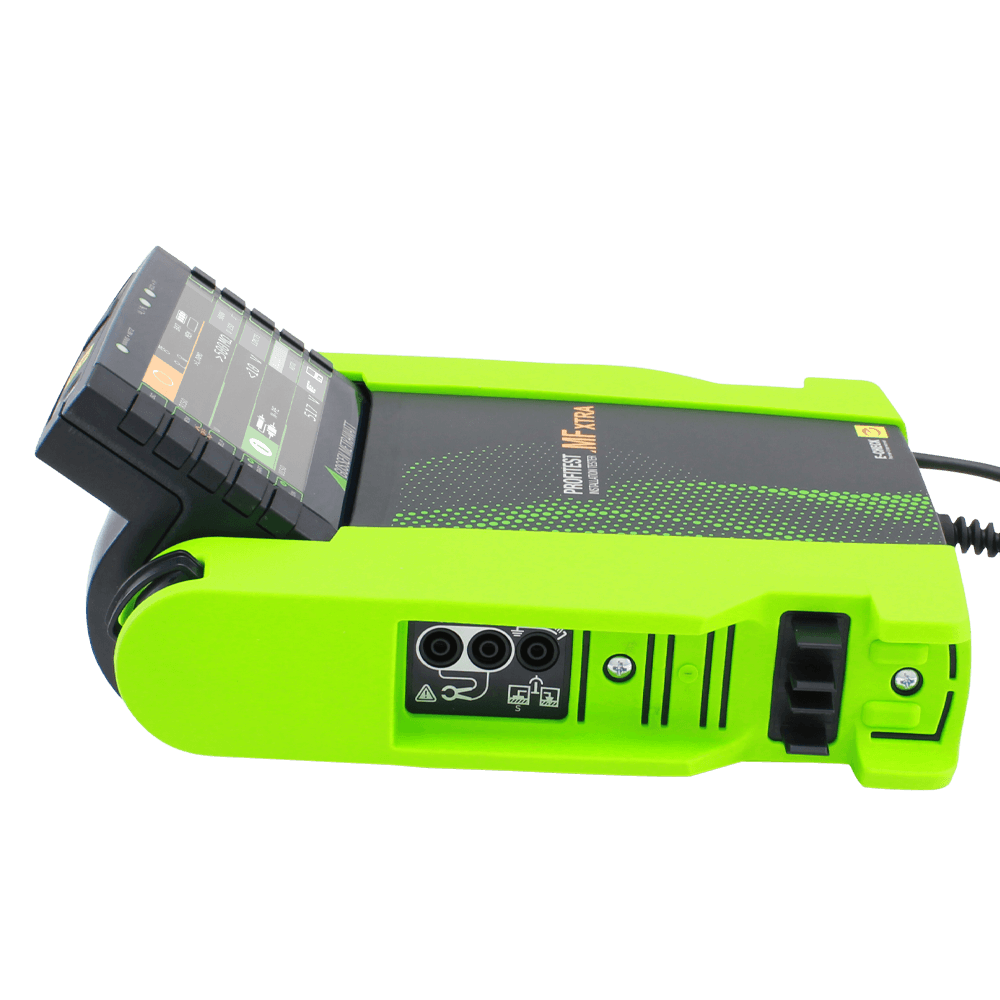

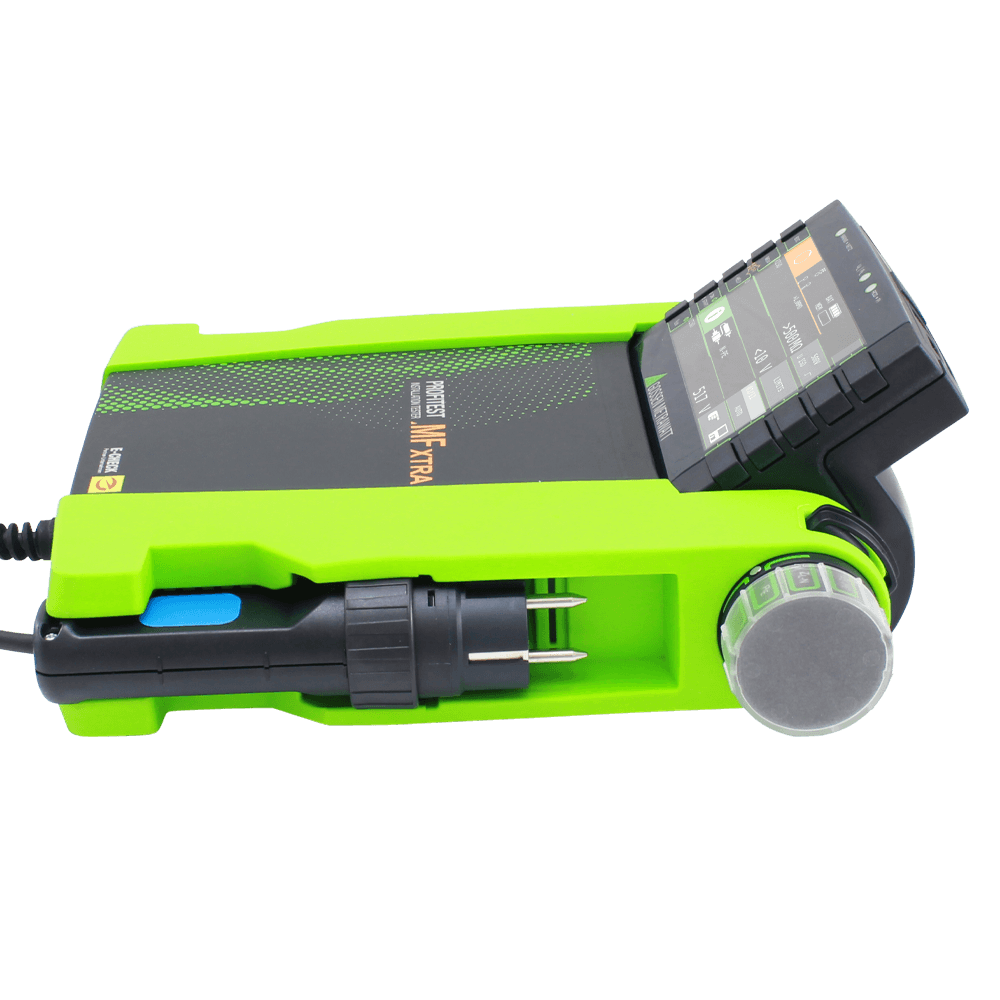

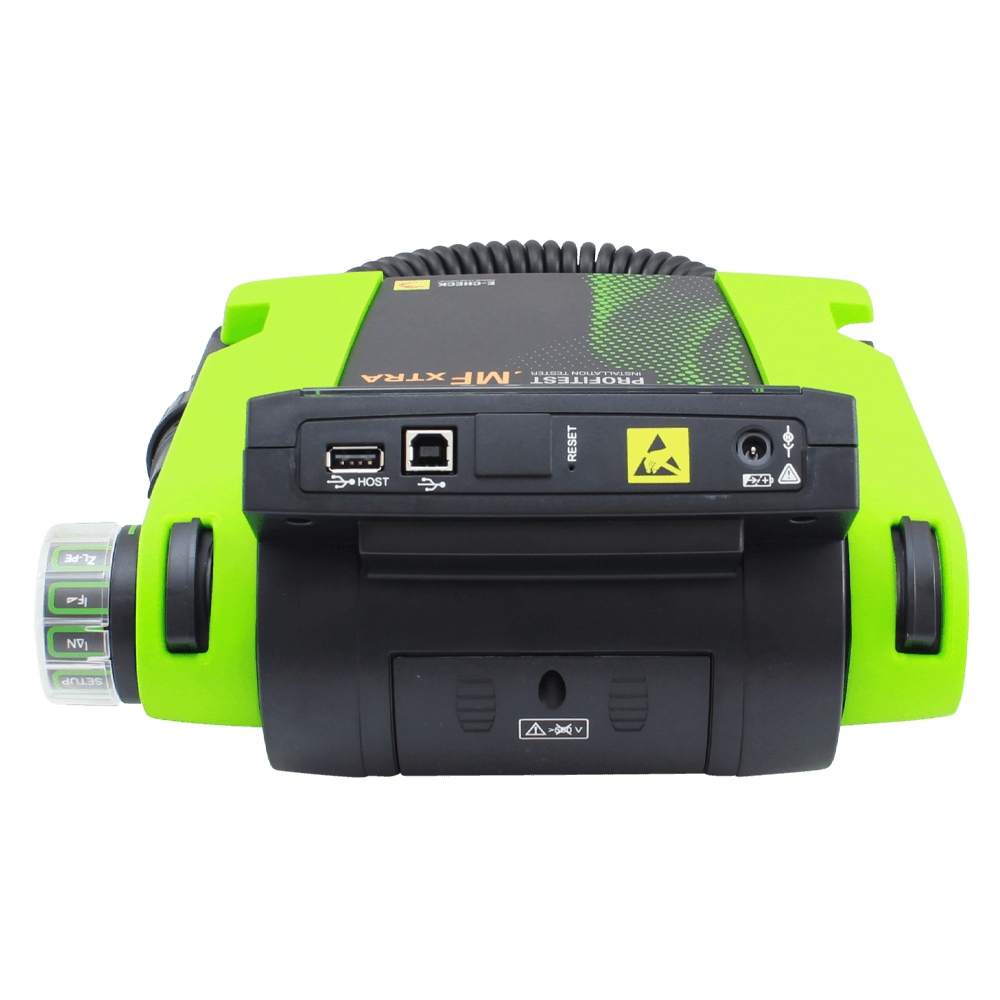

Gossen Metrawatt M535T | Profitest MF Xtra Lemongreen, VDE 0100 stationary test device incl. IZYTRONIQ Business Professional

Manufacturer number: M535T

Gossen Metrawatt M535T
Gossen Metrawatt M535T
Gossen Metrawatt M535T
Gossen Metrawatt M535T
Gossen Metrawatt M535T
Gossen Metrawatt M535T
Gossen Metrawatt M535T
Gossen Metrawatt M535T
1 in stock. Ready to ship in 1 business day

€3,095.00

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Scope Related Articles

Gossen Metrawatt M535T | Profitest MF Xtra Lemongreen, VDE 0100 stationary test device incl. IZYTRONIQ Business Professional.

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 1.70 MB
Userguide
pdf | 5.48 MB

Description

M535T | Profitest MF Xtra Lemongreen, VDE 0100 stationary test device incl. IZYTRONIQ Business Professional

Measuring and testing device for testing the effectiveness of protective measures on stationary electrical installations after commissioning, repairs, expansion and on the occasion of a repeat test (DGUV regulation 3). The PROFITEST MF XTRA offers all measurement and test functions for testing the effectiveness of protective measures on stationary electrical installations - both with predefined and optionally with programmable test sequences that correspond to the test standards according to IEC 60364-6 (DIN VDE 0100-600) and EN 50110- 1 (DIN VDE 0105-100) are necessary. Measurement category 300 V CAT IV / 600 V CAT III. The PROFITEST MF XTRA makes your investment decision easy. With the testing scope perfectly tailored to your requirements for the electrical professional, it is the ideal testing device for your everyday life - day after day. With its optimal operation and the storage concept, the creation of a test report is quick and easy. This saves you time with each test and allows you to carry out more tests every day. Once the system structures have been created, you can also use them across all PROFITEST devices. In this way, every employee always checks exactly the same. And with the PROFITEST service guarantee, you can be sure that your test instrument will still be up to date 10 years from now.

  • Intuitive operation through innovative user guidance
  • Efficient work through test processes
  • Standard-compliant testing according to ZVEH
  • Legally secure logging through interfaces
  • Wide range of applications thanks to a wide range of measurement options
  • Convenient work without the hassle of reconnecting the test leads
  • Can be used internationally thanks to language selection
  • Future-proof thanks to on-site firmware updates
  • Cascadable, future-proof software concept
  • On-site help through help function with connection diagrams
  • Context-sensitive color graphic display
  • Measurement and test procedure - simple creation of the system structure / measurement & storage / generate protocol
  • Preconfigured and self-programmable test sequences for quick testing of electrical systems
  • Storage concept for up to 50,000 data sets
  • Testing of all current AC/DC sensitive RCDs, RDC-DD, RCMB
  • Operator protection by PE detection when used through finger contact
  • Measurement category 600 V CAT III / 300 V CAT IV
  • Four-wire measuring technology - no compensation of the measuring lines required
  • Ground loop resistance measurement RE LOOP
  • Selective earth resistance RE

Testing the effectiveness of protective measures on stationary electrical systems according to IEC 60364-6 (DIN VDE 0100-600), EN 50110-1 (DIN VDE 0105-100), machines according to EN 60204-1 (VDE 0113-1) and other country-specific standards . Testing of e-charging points according to EN 61851-1 (DIN VDE 0122-1) and grounding measurements.

  • Wide-range measuring device for all AC and three-phase networks with voltages from 65 to 500 V and frequencies from 15.4 to 420 Hz
  • Loop and line impedance measurement with DC bias
  • Measurement of insulation resistance with nominal voltage, with variable or increasing test voltage
  • Low-ohm measurement with automatic polarity reversal
  • Testing of residual current devices and special RCD circuit breakers (selective S, SRCDs, PRCDs, Schukomat, Sidos, type G/R, AC, A, A-EV, F, F-EV, B, B+, B-MI)
  • Testing of residual current (RCD) protective circuits in IT networks
  • Testing of RDC-DD according to IEC 62955 and RCMB according to DIN EN 62752
  • Testing Insulation Monitoring Devices (IMDs)
  • Testing Residual Current Monitoring Devices (RCMs)
  • Measuring the earth resistance (mains operation / battery operation)
  • Leakage current measurement with adapter PRO-AB
  • Standard-compliant testing of e-charging stations according to IEC 61851-1 in connection with the test adapter Metraline PRO-TYP EM
  • Testing of PRCD type S and K using PROFITEST PRCD
  • Residual voltage measurement according to EN 60204-1
  • Auto function test sequences
  • USB interface
  • USB push-print function – sending the measured value after the measurement has been completed
  • Intuitive operation through innovative user guidance
  • Efficient work through test processes
  • Standard-compliant testing according to ZVEH
  • Legally secure logging through interfaces
  • Wide range of applications thanks to a wide range of measurement options
  • Convenient work without the hassle of reconnecting the test leads
  • Can be used internationally thanks to language selection
  • Future-proof thanks to on-site firmware updates
  • Cascadable, future-proof software concept
  • On-site help through help function with connection diagrams
  • Interface connection to DDScad and EPLAN

Lieferumfang

  • 1x PROFITEST MF XTRA with green protective bumpers
  • 1x safety plug insert (country-specific)
  • 1x 2-pin measuring adapter and 1x cable to expand to a 3-pin adapter (PRO-A3-II)
  • 2x alligator clips
  • 1x shoulder strap
  • 1x set of batteries (Z502H)
  • 1x charger (Z502R)
  • 1x Quick User Guide
  • 1x safety information sheet
  • 1x DAkkS calibration certificate
  • 1x USB interface cable
  • 1x software license IZYTRONIQ BUSINESS PROFESSIONAL
