Gossen Metrawatt M320A | Metraclip 41 current clamp AC / DC, 40A / 40A

Name: M320A | Metraclip 41 current clamp AC / DC, 40A / 40A
Brand: Gossen Metrawatt
SKU: M320A
Price: 585.0 EUR
Availability: InStock

Manufacturer number: M320A

1 in stock. Ready to ship in 1 business day

€585.00

or choose one of the following options:

Product inquiries

4-digit METRACLIP 41 clamp meter from Gossen Metrawatt.

True RMS display
Exact current measurement from 5 mA to 40 A
1 mA / 10 mA resolution
Automatic measuring range selection
Automatic zero adjustment
Automatic shutdown
Hold readings
Pliers opening 25 mm
Dimensions 193 mm x 64 mm x 31 mm
Weight: approx. 235 g

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Accuracy current measurement AC/DC:	±1 % / ±1 %
Article number:	M320A
Current measuring range AC/DC:	1 mA - 40 A / 1 mA - 40 A
Dimensions (L x W x H) (mm):	193 x 64 x 31
Diode test / continuity test:	No / No
Direction of rotation:	No
Enclosure (mm):	25
Frequency measuring range:	No
Hold:	Yes
Measurement method:	TRMS
Min. / Max. Measurement:	No / No
Model:	GMC Metraclip 41
Number of positions:	3.5
Power factor:	Nein
Power measurement (active / apparent / reactive):	No / No / No
Resistance measuring range:	No
Resolution current measurement AC/DC:	1 mA / 1 mA
Temperature measuring range:	No
Weight (kg):	0.235

Documents & Downloads

Datasheet

pdf | 0.21 MB

Description

M320A | Metraclip 41 current clamp AC / DC, 40A / 40A

The METRACLIP41 current clamp meter is used for the precise, non-contact measurement of AC and DC currents as well as complex current forms. Ideally suited for automotive construction, manufacturing, service and for 4 ... 20 mA in industry.

Lieferumfang

1x AC / DC current clamp meter, 1x 9 V alkaline battery and operating instructions

Accessoires (1 product )

Gossen Metrawatt Z320A

Bag for METRACLIP 41/410

Ready to ship in 5 to 10 business days

€56.00

Alternate products (8 products )

Teledyne FLIR CM83 TRMS multiple measuring clamp

Delivery time upon request

€409.00

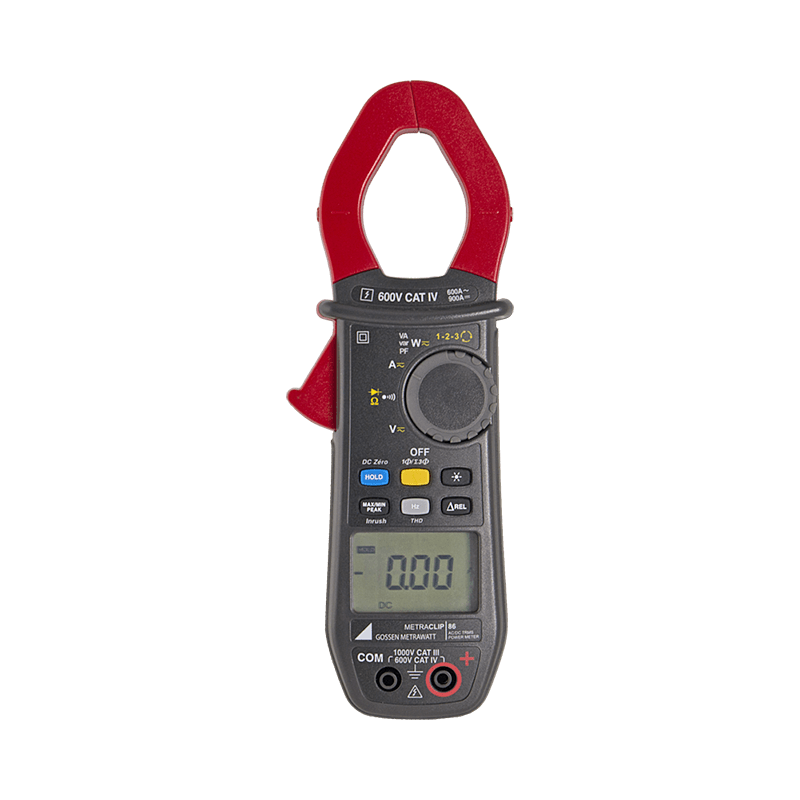

Gossen Metrawatt M312K
