Gossen Metrawatt METRAHIT IN E-Drive BT | Multimeter, TRMS, 4 3/4, milliohm, insulation, winding test, data logger, incl.Kelvin probe (M274S)

Name: METRAHIT IN E-Drive BT | Multimeter, TRMS, 4 3/4, milliohm, insulation, winding test, data logger, incl.Kelvin probe (M274S)
Brand: Gossen Metrawatt
SKU: M274S
Price: 2440.0 EUR
Availability: InStock

Manufacturer number: M274S

3 in stock. Ready to ship in 1 business day

€2,440.00

or choose one of the following options:

Request a quote Product inquiries

Gossen Metrawatt M274S | MetraHIT IM E-Drive BT all-in-one multimeter, milliohmmeter and insulation tester with graphic display

Numerous safety-relevant tests for electrical devices, drives and installations with just one single portable device
High-voltage system test according to UN ECE R100
Insulation resistance measurement according to EN 61557-2 / VDE 0413-2
Rlow installation test according to EN 61557-4 / VDE 0413-4
Bonding test or equipotential bonding test, e.g. on the outer skin of the aircraft (lightning protection - leakage test / "Wicktest")

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	M274S
Backlight:	Yes
Basic precision:	AC 0,5 % / DC 0,15 %
Capacity measuring range:	30 nF - 300 µF
Current measuring range AC/DC:	300µA - 1A / 300µA - 1A
Data memory / logger:	Yes / Yes
Dimensions (L x W x H) (mm):	235 x 105 x 56
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	30000
Electrical safety:	CAT III 1000 V, CAT IV 600 V
Frequency measuring range:	300 Hz - 300 kHz
Interfaces:	Bluetooth
Min. / Max. Recording:	Yes / Yes
Model:	Metrahit IM E-Drive BT
Number of positions:	4.75
Resistance measuring range:	3 mΩ - 30 MΩ
Special features:	including DakkS calibration certificate, insulation measurement, turn-to-turn measurement
Temperature measurement ( PT100 / Type K / Type J):	Pt 100 / Pt 1000 / Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	300 mV - 1000 V / 300 mV - 1000 V
Warranty (years):	3
Weight (kg):	0.7

Description

METRAHIT IN E-Drive BT | Multimeter, TRMS, 4 3/4, milliohm, insulation, winding test, data logger, incl.Kelvin probe (M274S)

Are you looking for a transportable device that will support you in numerous relevant measurement tasks and safety checks? Then the METRAHIT IM E-DRIVE BT is an excellent choice. The device is a multimeter, insulation measuring device, winding tester, data logger and milliohmmeter with various possible uses.

For example, the METRAHIT IM E-DRIVE BT is suitable for service and diagnostics on electrical systems or electrical machines, in field use or in the areas of the automotive industry, electrical engineering and aviation technology.

Thanks to the numerous functions and the compact size, you no longer need additional individual devices in confined areas, just the METRA IM E-DRIVE BT. In this way, you can effortlessly master operations in the most difficult places, such as in bulky sections or cockpits.

The multimeter is a robust and compact multimeter that has been developed specifically for use in the field. With this in mind, the device was expanded to include the insulation tester, milliohmmeter, short-circuit tester and data logger functionality. In connection with an optional coil test adapter, interturn fault measurements are possible.

Technical features of the METRA IM E-DRIVE BT

Insulation resistance measurement up to 3.1 GΩ with external voltage detection and several test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V according to EN 61557-2 / VDE 0413-2
4-wire milliohm measurement with Kelvin connection and 200 mA or 1 A measuring current for precise measurement of the smallest resistances with 1 microOhm resolution
2-wire Rlow measurement with 200 mA test current according to EN 61557-4 / VDE 0413-4
Interturn measurement
True effective value measurement TRMSAC / AC + DC for current / voltage up to 10/100 kHz
Low pass filter AC, AC + DC
Direct current measurement
Current measurement with clamp sensors: The transfer factor can be set from 1: 1 to 1: 1000 with CLIP and is taken into account in the amperage display.
Capacitance measurement
Precision temperature measurement ° C, ° F for RTD and TC-K sensors
Diode measurement K flow up to 5.1 V) and continuity test
Acoustic signaling
Acquisition of min / max values; DATA Hold
Data logger thanks to integrated memory and real-time clock, also for individual measured values
The push / print function transfers measured values to the application software at the touch of a button
Programmable sequences for test routines
Color graphic display
Modular power supply: Standard lithium quick-change battery, optional WPC module for inductive charging and power module with USB interface,
Battery change without interrupting the measuring circuit thanks to the contact-protected modular socket
Automatic socket lock (ABS) for the power input
Test probe with function keys START (ISO) and STORE
Housing IP52, dust and drip-proof, exchangeable protective rubber cover
Interfaces: BT Bluetooth integrated - device variant with integrated WLAN - USB with optional network module
Windows software IZYTRONIQ for documentation, creation of test reports and graphic evaluation of measurements

Lieferumfang

1x METRAHIT IM E-DRIVE BT multimeter with protective rubber cover
1x test probe with START and STORE function
1x pair of safety measuring leads type KS17-2 with 4 mm test probe
1x Kelvin clamp type KC4
1x Kelvin probe type KC27
1x lithium polymer battery
1x USB plug-in power supply (5VDC 2A) with charging cable USB to micro-USB
1 IZYTRON.IQ BUSINESS Starter software
operation manual

Accessoires (3 products)

Gossen Metrawatt
Z270F

Coil adapter 50mH for interturn fault detection for inductivities

Delivery time upon request

€199.00

Gossen Metrawatt
Z270G

Lithium polymer battery for Metrahit IM multimeter, 14.8 Wh

Ready to ship in 5 to 10 business days

€175.00

Gossen Metrawatt

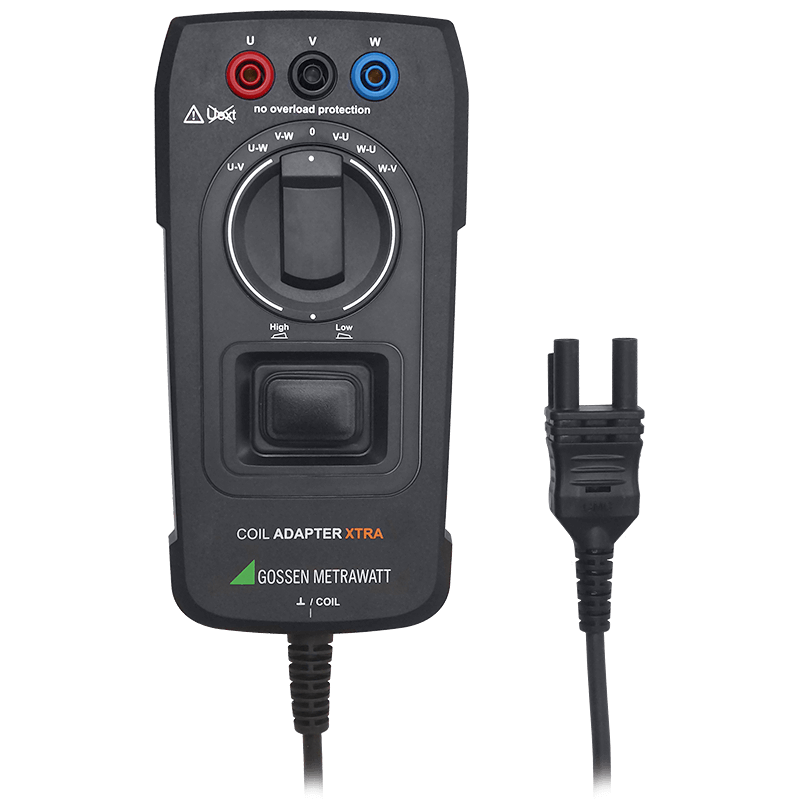

Z270M

Coil Adapter XTRA for short-circuit detection for inductances from 10 µH to approx. 5 H

Ready to ship in 5 to 10 business days

€347.00

About the Manufacturer

Gossen Metrawatt

Safety through competence. With over 100 years of experience, Gossen Metrawatt offers you unique products for measurement and testing technology as well as industrial metrology. The products stand for quality, reliability, safety and progressiveness, but also for dynamic and ergonomic design, high ease of use and unique innovative spirit.
