Gossen Metrawatt METRAHIT PM PRIME BT (formerly ULTRA BT) | Multimeter, TRMS, 4 6/7, ± 0.02% VDC, Bluetooth

Name: METRAHIT PM PRIME BT (formerly ULTRA BT) | Multimeter, TRMS, 4 6/7, ± 0.02% VDC, Bluetooth
Brand: Gossen Metrawatt
SKU: M248B
Price: 1055.0 EUR
Availability: InStock

Manufacturer number: M248B

Gossen Metrawatt METRAHIT PM PRIME BT (formerly ULTRA BT)

1 in stock. Ready to ship in 1 business day

€1,055.00

or choose one of the following options:

Product inquiries

Gossen Metrawatt M248B | 5 stell-digit precision multimeter METRAHIT PRIME BT (formerly ULTRA BT) with 310,000 digits display and integrated Bluetooth interface for remote control.

Triple display with ± 310,000 digits resolution (5 ¾ digits)
Base deviation +/- (0.02% of MW + 20 digits)
Measurement functions:
1 µV - 600 VDC and TRMS 10 µV - 600 VAC / AC + DC (bandwidth 15 Hz-100 kHz)
1nA -10 ADC and TRMS 10 nA-10 AAC / AC + DC (bandwidth 15 Hz-10 kHz)
Resistance, frequency, capacitance and temperature measurement 1mΩ - 30 MΩ; 0.001Hz -1 MHz; 1pF - 3mF, ° C / ° F Pt100, Pt1000, TC type K -270 ... + 1372 ºC
automatic range selection and battery shutdown
Min / max measurement value storage
Integrated measurement data memory 2 MB for approx. 300,000 measured values, sampling rate 10 ms to 9 h
IR data interface
CAT.IV @ 300 V or CAT.III @ 600 V according to IEC 61010-1
DAkkS calibration certificate included
Protective rubber cover (option)
AC adapter (option)
METRAHIT ULTRA BT - with integrated Bluetooth interface
Remote controllability of the device via Bluetooth interface
Android app for smartphone and tablet PC for remote control, recording, analysis and display of measured values
Impact-resistant plastic (ABS) housing
Dimensions 200 mm x 87 mm x 45 mm (without rubber protective cover)
Weight about 0.4 kg with batteries
Degree of protection housing: IP 52 (pressure equalization through housing)
Protection class sockets: IP20
3 year guarantee

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	M248B
Backlight:	Yes
Basic precision:	0,02 %
Capacity measuring range:	3 nF - 3 mF
Current measuring range AC/DC:	300µA - 10A / 300µA - 10A
Data memory / logger:	Yes / Yes
Dimensions (L x W x H) (mm):	200 x 87 x 45
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	310000
Electrical safety:	CAT III 600 V, CAT IV 300 V
Frequency measuring range:	300 Hz - 1 MHz
Interfaces:	None
Min. / Max. Recording:	Yes / Yes
Model:	Metrahit PM PRIME BT
Number of positions:	5.75
Resistance measuring range:	300 Ω - 30 MΩ
Special features:	including DakkS calibration certificate
Temperature measurement ( PT100 / Type K / Type J):	Pt100 / Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	300 mV - 600 V / 300 mV - 600 V
Warranty (years):	3
Weight (kg):	0.35

Documents & Downloads

Datasheet

pdf | 3.22 MB

Description

METRAHIT PM PRIME BT (formerly ULTRA BT) | Multimeter, TRMS, 4 6/7, ± 0.02% VDC, Bluetooth

Precision multimeter with integrated Bluetooth interface, temperature measuring device and data logger for demanding, universal use in the laboratory and service

Lieferumfang

Multimeter
Cable set KS17-2
1.5 V batteries, type AA
Brief operating instructions German / English
CD-ROM (content: operating instructions in German and English and other available languages)
DAkkS calibration certificate
Protective rubber cover

Optional accessories:

DC / AC and AC current sensors and AC current transformers
Bidirectional interface adapter IR / USB
METRAwin ®10 / METRAHit ® software
Temperature sensor PT100 / PT1000
Power adapter
Carrying bags and hard case

Accessoires (15 products )

Gossen Metrawatt GTZ3240000R0001

Metrawin 10 / Metrahit software for multimeters (Z3240)

Ready to ship in 5 to 10 business days

€229.00

Gossen Metrawatt GTZ3408000R0001

TF550 temperature sensor -50 ° .. + 550 ° C, Pt100

Ready to ship in 5 to 10 business days

€221.00

Gossen Metrawatt GTZ3409000R0001

Z3409 temperature sensor -40 .. + 600 ° C, Pt100

Ready to ship in 5 to 10 business days

€165.00

Gossen Metrawatt Z113A

HC20 hard case 275 x 229 x 83 mm

Ready to ship in 5 to 10 business days

€74.00

Gossen Metrawatt Z113B

HC30 hard case 394 x 294 x 106 mm

Ready to ship in 5 to 10 business days

€117.00

Gossen Metrawatt Z115B

Soft belt pouch large for a METRAHIT or METRAPort-Multi

Ready to ship in 5 to 10 business days

€89.00

Gossen Metrawatt Z216C

USBXTRA interface adapter IR / USB for Metrahit X-TRA

1 in stock. Ready to ship in 1 business day

€285.00

Gossen Metrawatt Z218G

NA X-TRA power supply adapter with jack plug

1 in stock. Ready to ship in 1 business day

€156.00

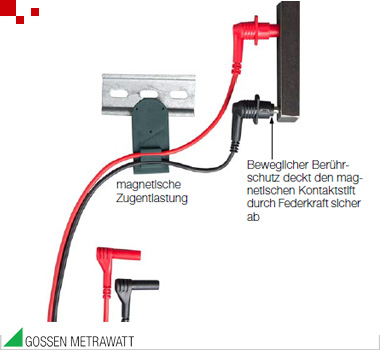

Gossen Metrawatt Z502U
