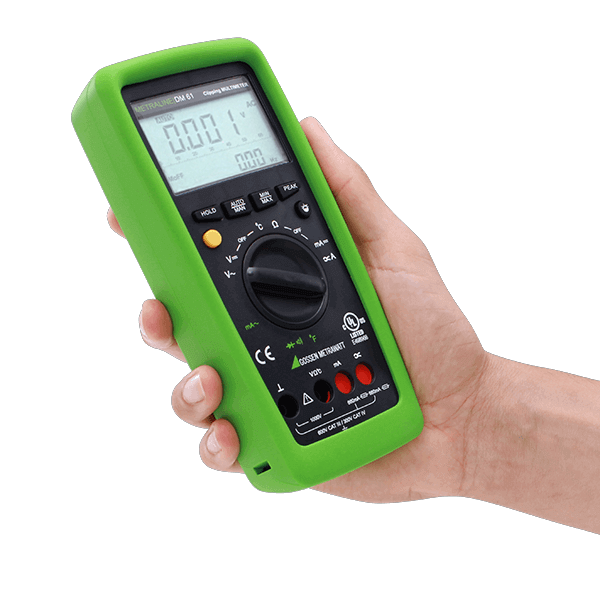

Gossen Metrawatt Multimeter METRALINE DM 61 (M194A)

Name: Multimeter METRALINE DM 61 (M194A)
Brand: Gossen Metrawatt
SKU: M194A
Price: 112.0 EUR
Availability: OutOfStock

Manufacturer number: M194A

Ready to ship in 5 to 10 business days

€112.00

or choose one of the following options:

Request a quote Product inquiries Request education-price

Gossen Metrawatt Metraline DM61 | RMS digital multimeter with analog bar graph and temperature measurement (M194A).

Resolution: 6600 digits (3 6/7 digits) and analog bar graph (66 points)
Dual digital display with backlight
Basic accuracy: 0.4% VDC
Voltage: VDC 100 μV ..1000 V and VAC TRMS 100 μV ..1000 V
Current: ADC 10 μA ... 660 mA
Resistance: 100 mΩ ... 60 MΩ
Temperature: -50 ... + 1,300 ° C thermocouple type K
Continuity and diode test
Hold / Peak / Min-Max / Relative (Zero)
Automatic / manual measuring range selection
Automatic socket lock ABS
Measurement category 300 V CAT IV, 600 V CAT III
3 year guarantee

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	M194A
Backlight:	Yes
Basic precision:	AC 1 % / DC 0,4 %
Capacity measuring range:	No
Current measuring range AC/DC:	66mA - 660mA / 66mA - 660mA
Data memory / logger:	No / No
Dimensions (L x W x H) (mm):	188 x 86 x 53
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	6600
Electrical safety:	CAT II 1000 V, CAT III 600 V, CAT IV 300 V
Frequency measuring range:	No
Min. / Max. Recording:	Yes / Yes
Model:	Metraline DM 61
Number of positions:	3.85
Resistance measuring range:	660 Ω - 66 MΩ
Temperature measurement ( PT100 / Type K / Type J):	Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	660 mV - 1000 V / 660 mV - 1000 V
Warranty (years):	3
Weight (kg):	0.48

Documents & Downloads

Datasheet

pdf | 0.18 MB

Description

Multimeter METRALINE DM 61 (M194A)

The Autorange Multimeter METRALINE DM61 enables you to use all measurement functions of a versatile multimeter for use in all areas of electrical engineering: voltage, resistance, current and temperature measurement as well as many other measurement functions.

The RMS multimeter offers an excellent price-performance ratio as well as reliable measurement results in the measurement categories CAT IV 300V or CAT III 600V with increased safety for users and devices thanks to the automatic socket lock (ABS).

Your advantages:

Universally applicable in all areas of electrical engineering
Clamp function 1000: 1 for current transformers WZ1001
Automatic socket lock ABS
Automatic range selection and storage of measured values
Safety for the user and the device in the measurement categories CAT III to 600V and CAT IV to 300V.

Lieferumfang

1 pair of measuring cables
1 protective rubber cover with strap
1 set of batteries
1 instruction manual
1 test report

Alternate products (2 products)

Gossen Metrawatt
METRALINE DM62

Multimeter, TRMS, 4 digits, IP50 (M197A)

Ready to ship in 5 to 10 business days

€154.00

Gossen Metrawatt
METRALINE DM41

Multimeter, 3 3/4 digits, IP52 (M192A)

3 in stock. Ready to ship in 1 business day

€91.00

About the Manufacturer

Gossen Metrawatt

Safety through competence. With over 100 years of experience, Gossen Metrawatt offers you unique products for measurement and testing technology as well as industrial metrology. The products stand for quality, reliability, safety and progressiveness, but also for dynamic and ergonomic design, high ease of use and unique innovative spirit.
