Gossen Metrawatt M206A | Metrahit WORLD multimeter, hand 3 6/7 digits, DAkkS calibration certificate

Name: M206A | Metrahit WORLD multimeter, hand 3 6/7 digits, DAkkS calibration certificate
Brand: Gossen Metrawatt
SKU: M206A
Price: 415.0 EUR
Availability: InStock

Manufacturer number: M206A

2 in stock. Ready to ship in 1 business day

€415.00

or choose one of the following options:

Product inquiries

Gossen Metrawatt M206A | 3 6/7 digit TRMS digital multimeter Metrahit World with analog bar graph and temperature measurement.

Resolution: 6000 digits and analog bar graph (60 points)
Basic accuracy: from 0.5% VDC
VAC TRMS bandwidth 2kHz
Automatic socket lock ABS (patented)
Voltage: VDC 100μ ..1000 V and VAC TRMS 100μ ..1000 V
Current: IDC 10μ ... 10 A (16 A 30sec) and IAC TRMS 10μ ... 10 A (16 A 30sec)
Resistance: 100 mOhm ... 40 MOhm
Temperature: -50.0 ° C ... + 800.0 ° C with optional thermocouple type K
Frequency measurement: 0.1 Hz ... 1 MHz
Duty cycle measurement: 2% ..98% (1 kHz)
Revolution measurement: 60 RPM ... 99.99 kRPM
Capacitance measurement: 10 pF ... 400 µF
Continuity and diode test 3V
Min / max measurement value storage and DATA hold
Measurement category 600 V CAT IV, 1000 V CAT III
Dimensions (L x W x H mm): 195 x 84 x 35
Weight: approx. 350 g with battery
3 year guarantee

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	M206A
Backlight:	Yes
Basic precision:	0,5 %
Capacity measuring range:	40 nF - 400 µF
Current measuring range AC/DC:	60mA-10A / 60mA-10A
Data memory / logger:	No / No
Dimensions (L x W x H) (mm):	195 x 84 x 35
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	6000
Electrical safety:	CAT III 1000 V, CAT IV 600 V
Frequency measuring range:	10 Hz - 1000 kHz
Interfaces:	opt. Bidirectional IR/USB adapter
Min. / Max. Recording:	Yes / Yes
Model:	Metrahit WORLD
Number of positions:	3.85
Resistance measuring range:	600 Ω - 40 MΩ
Special features:	including DakkS calibration certificate
Temperature measurement ( PT100 / Type K / Type J):	-50°C - +800°C
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	600 mV - 1000 V / 600 mV - 1000 V
Warranty (years):	3
Weight (kg):	0.35

Documents & Downloads

Datasheet

pdf | 0.83 MB

Description

M206A | Metrahit WORLD multimeter, hand 3 6/7 digits, DAkkS calibration certificate

The autorange multimeter for use in all areas of electrical engineering, especially for international use. METRAHIT WORLD offers you all measuring functions of a versatile, high-class multimeter: convincing technology with all voltage, resistance, current and temperature measuring ranges and many other measuring and automatic functions such as frequency and duty cycle measurement.

Lieferumfang

1 TRMS digital multimeter
1 protective rubber cover
2 1.5 V mignon cells
1 measuring cable set KS17-2
1 DAkkS (DKD) calibration certificate
1 brief operating instructions

Accessoires (24 products )

Gossen Metrawatt Z117A

HIT CLIP, for Metrahit magnetic holder, Velcro fastening

Ready to ship in 5 to 10 business days

€64.00

Gossen Metrawatt Z202B

CP330 Current Clamp, 4 mm, 300 A DC - 20 kHz, U-Out

Ready to ship in 5 to 10 business days

€510.00

Gossen Metrawatt Z208B

WZ11B current probe, 4 mm, 200 A 48 Hz - 500 Hz, U-Out

Ready to ship in 5 to 10 business days

€308.00

Gossen Metrawatt Z201B

CP30 current probe, 4 mm, 30 A DC - 20 kHz, U-Out

Ready to ship in 5 to 10 business days

€599.00

Gossen Metrawatt Z203B

CP1100 Current Clamp, 4 mm, 1000A DC - 20 kHz, U-Out

Ready to ship in 5 to 10 business days

€465.00

Gossen Metrawatt Z219B

WZ12B current probe, 4 mm, 100 A 48 Hz - 500 Hz, U-Out

Ready to ship in 5 to 10 business days

€224.00

Gossen Metrawatt Z219C

WZ12C current probe, 4 mm, 150 A 48 Hz - 400 Hz, U-Out

Ready to ship in 5 to 10 business days

€280.00

FLUKE 80K-6

Probe, high voltage 1000X, 1KHz, 6kV for multimeter

Delivery time upon request

€214.97 €259.00

Gossen Metrawatt GTZ3409000R0001

Z3409 temperature sensor -40 .. + 600 ° C, Pt100

Ready to ship in 5 to 10 business days

€165.00

Chauvin Arnoux P01295459Z

Test lead set crocodile clips, measuring tips

Ready to ship in 5 to 10 business days

€64.00

Gossen Metrawatt Z113A

HC20 hard case 275 x 229 x 83 mm

Ready to ship in 5 to 10 business days

€74.00

FLUKE 80K-40

Probe, high voltage 1000X, 60Hz, 40kV for multimeters

2 in stock. Ready to ship in 1 business day

€385.12 €464.00

Gossen Metrawatt Z225A

Z3512A current probe, 4 mm, 1000A 10 Hz - 3 kHz, U-Out

1 in stock. Ready to ship in 1 business day

€739.00

Gossen Metrawatt Z207E

Metraflex 3000 current clamp 30/300/3000 A, 100/10/1 mV / A

Ready to ship in 5 to 10 business days

€699.00

Gossen Metrawatt Z115B

Soft belt pouch large for a METRAHIT or METRAPort-Multi

Ready to ship in 5 to 10 business days

€89.00

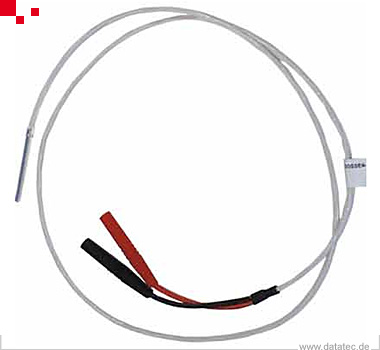

Gossen Metrawatt Z102A

TF220 temperature sensor PT1000 -50 to + 220 ° C, wire sensor

Ready to ship in 5 to 10 business days

€89.00

Gossen Metrawatt Z110J

KY95-3 crocodile clip (1 pair rt + sw) for KS17-2 1000V / CAT III 16A

2 in stock. Ready to ship in 1 business day

€49.00

Gossen Metrawatt Z216A

USB-HIT Bidirectional interface adapter IR / USB

Ready to ship in 5 to 10 business days

€295.00

Gossen Metrawatt Z207M

Metraflex 300M, 3/30 / 300A AC current probe length = 160mm

Ready to ship in 5 to 10 business days

€621.00

Gossen Metrawatt Z113B

HC30 hard case 394 x 294 x 106 mm

Ready to ship in 5 to 10 business days

€117.00

Gossen Metrawatt Z109D

Fuses, FF 16A / 600V, 10 x 38 mm, 10 pieces for Gossen multimeter

Ready to ship in 5 to 10 business days

€75.00

Gossen Metrawatt Z109L

Fuses, FF 10A / 1000V, 10 x 38 mm, 10 pieces, for Gossen multimeter

1 in stock. Ready to ship in 1 business day

€103.00

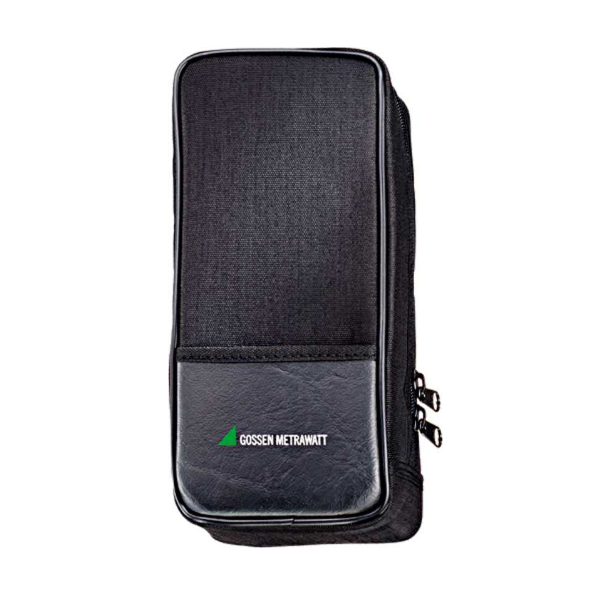

Gossen Metrawatt Z115A
