SMFT-1000/KIT | Multifunctional PV power analyzer including extended accessories

The Fluke SMFT-1000 is the all-in-one solution for testing PV system performance and safety and generating reports faster. The PV Power Analyzer is the ideal companion for PV professionals providing installation, commissioning and maintenance services.

With the multifunctional PV power analyzer, you can check whether PV systems are delivering optimal performance and are working safely. The SMFT-1000 is designed for PV professionals installing, commissioning and maintaining systems up to 1000V DC. The SMFT-1000 meets the requirements of the IEC/EN 62446-1 standard. Fluke TruTest software makes it easy to import, organize and analyze measurement data from installation and commissioning tests on solar systems. This makes it easy to generate reports without having to take a laptop to the site. Thanks to the optimized and simplified workflows, you save a lot of time when working in the field and for documentation.

The Fluke SMFT-1000 is also available as a PRO kit including Advanced TruTest software and test lead set with MC4 connectors.

Product features:

Complete safety test according to IEC/EN 62446-1 Part 1:

  • Protective earth resistance (RLO)
  • Voltage at open circuit including polarity (VOC)
  • Short circuit current (ISC) or operating current with current clamp
  • Insulation resistance (RINS)

Testing of profitability and system performance (measurement of the IV curve for solar modules/strings) - IEC 62446-1 part 2:

  • IV Curve Recorder and associated software for analysis, reporting and certification, includes IV curve analysis and reporting capabilities
  • Computer Software - Download, upload, review, analyze and print test results
  • Communication with the irradiation meter IRR2-BT (solar irradiation, inclination, temperature)
  • communication with computers

Further:

  • visual inspection
  • Protective conductor resistance measurement (RLO) with a test current ≥200 mA
  • Polarity check with automatic display of voltage polarity with audible/visual warning of incorrect polarity
  • Measurement of the open circuit voltage (VOC) on the PV module/PV string with up to 1,000 V DC
  • Short-circuit current measurement (ISC) on the PV module/PV string with up to 20 A DC or operating current with current clamp up to 100 A DC
  • Insulation resistance measurement (RINS) with a test voltage of 50 V, 100 V, 250 V, 500 V and 1,000 V
  • Measurement of the blocking diode (VBD)
  • Testing of surge protection devices
  • AC/DC voltage measurement via 4 mm sockets - functional test by voltage measurement up to 700 V true effective (for sinusoidal voltage up to 60 Hz) and 1,000 V DC. The measurement of alternating voltage and alternating current refers to the frequency 50 Hz or 60 Hz (sinusoidal voltage).
  • AC/DC current measurement – functional test by current measurement with a current clamp up to 100 A AC/DC
  • Module bypass diode measurement when covered or dark

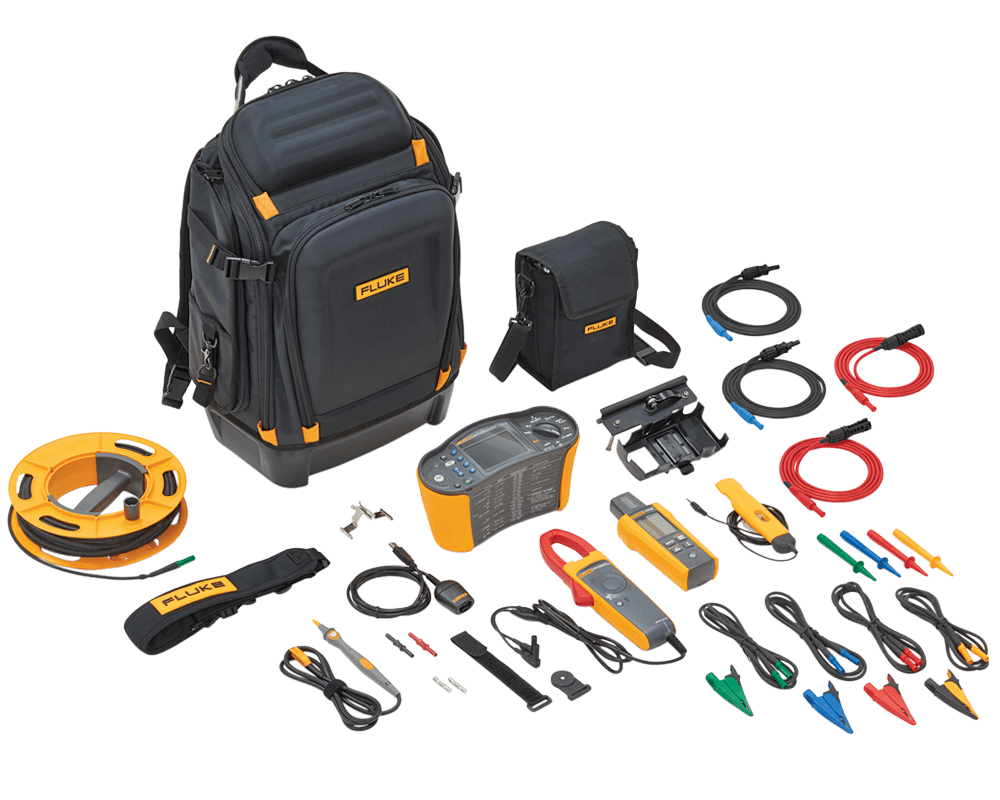

Lieferumfang

  • Professional tool backpack Fluke SMFT-1000-BP
  • Multifunctional PV Analyzer SMFT-1000
  • carrying strap
  • backup set
  • Adapter cable IRDA optical to USB
  • zero point adapter
  • Irradiation meter IRR2-BT
  • External temperature probe 80PR-IRR
  • Mounting bracket for solar panel
  • carrying case
  • DC/AC current clamp i100, up to 100 A
  • Magnetic mounting kit TPAK
  • Measuring probe with remote triggering TP1000
  • Test lead set TL1000
  • Test lead set TL1000-MC4
  • Measuring line on reel TL1000/30M
  • plug set
  • 6 AA batteries
