FLUKE FLK-RSE300/C 60HZ | RSE300 stationary thermal imaging camera 60 Hz, 320 x 240 px, -10 °C to +1,200 °C

Manufacturer number: FLK-RSE300/C 60HZ

FLUKE FLK-RSE300/C 60HZ
FLUKE FLK-RSE300/C 60HZ
FLUKE FLK-RSE300/C 60HZ
FLUKE FLK-RSE300/C 60HZ
FLUKE FLK-RSE300/C 60HZ
FLUKE FLK-RSE300/C 60HZ
FLUKE FLK-RSE300/C 60HZ
FLUKE FLK-RSE300/C 60HZ
FLUKE FLK-RSE300/C 60HZ
FLUKE FLK-RSE300/C 60HZ
FLUKE FLK-RSE300/C 60HZ
FLUKE FLK-RSE300/C 60HZ
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Fluke FLK-RSE300/C 60HZ | RSE300 thermal imaging camera, FOV 34 x 25.5°, 76,800 pixels, measuring range -10° C … +1,200° C, repetition rate 60 Hz.

  • Temperature measuring range: -10°C … +1200°C
  • Detector resolution: 320 x 240 (76,800) pixels
  • Field of View: 34°H x 25.5°V
  • Heat Sensitivity: 0.03 @ 30°C
  • Temperature measurement accuracy max.: ±2° C
  • Focus Type: Automatic, Manual
  • Refresh Rate: 60Hz
  • Focusing distance min.: 150 mm
  • Remote Access & Storage: SmartView Desktop Software
  • Color Palette: 8 selectable color palettes using IR-Fusion technology in desktop software
  • Dimension (H x W x D): 83mm x 83mm x 165mm
  • Weight: 1kg

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 0.32 MB

Description

FLK-RSE300/C 60HZ | RSE300 stationary thermal imaging camera 60 Hz, 320 x 240 px, -10 °C to +1,200 °C

The Fluke RSE 300/C is a powerful 320 x 240 pixel thermal imaging camera for research, science and engineering. With the RSE300 you expand the testing and quality assurance options of your workplace considerably. Transfer your data packets directly to the computer to monitor even the smallest temperature differences. Analyze videos by data packets in the SmartView PC software. Transfer and analyze thermal data with plug-ins for MATLAB and LabVIEW. Designed to meet your research, science and engineering needs, enhance your testing and quality assurance processes by mounting the RSE300 in your workplace.

With the optionally available interchangeable lenses, you can optimally adapt the Fluke RSE 300 to your requirements.

Product features:

  • MATLAB and LabVIEW software compatibility allows integration of infrared data, images, and video to support R&D analysis
  • Enhance images, create customizable reports and export images in the format of your choice with SmartView desktop software
  • Connect your camera wirelessly to the Fluke Connect system to share and edit images.

New:

Now including SmartView R&D, hard carrying case, lens cover included.

Lieferumfang

  • RSE300 thermal imaging camera
  • SmartView R&D
  • Hard-shell transport case
  • lens cover
  • Standard IR lens
  • AC power adapter
  • Ethernet cable
  • antenna
  • SmartView Desktop software as a free download
  • User manual as a free download

Accessoires (6 products )

FLUKE RSE-MB
FLUKE RSE-MB
Mounting bracket for Fluke thermal imaging camera
Delivery time upon request
€146.91 €177.00
FLUKE RSE-ST
FLUKE RSE-ST
Assembly stand for thermal imaging cameras
Delivery time upon request
€159.36 €192.00
FLUKE FLK-4X-LENS
FLUKE FLK-4X-LENS
Intelligent infrared quadruple telephoto lens for thermal imaging cameras RSE 300, RSE 600
Delivery time upon request
€5,403.30 €6,510.00
FLUKE FLK-2X- LENS
FLUKE FLK-2X- LENS
Intelligent infrared double telephoto lens for thermal imaging cameras RSE300, RSE600
Delivery time upon request
On Request

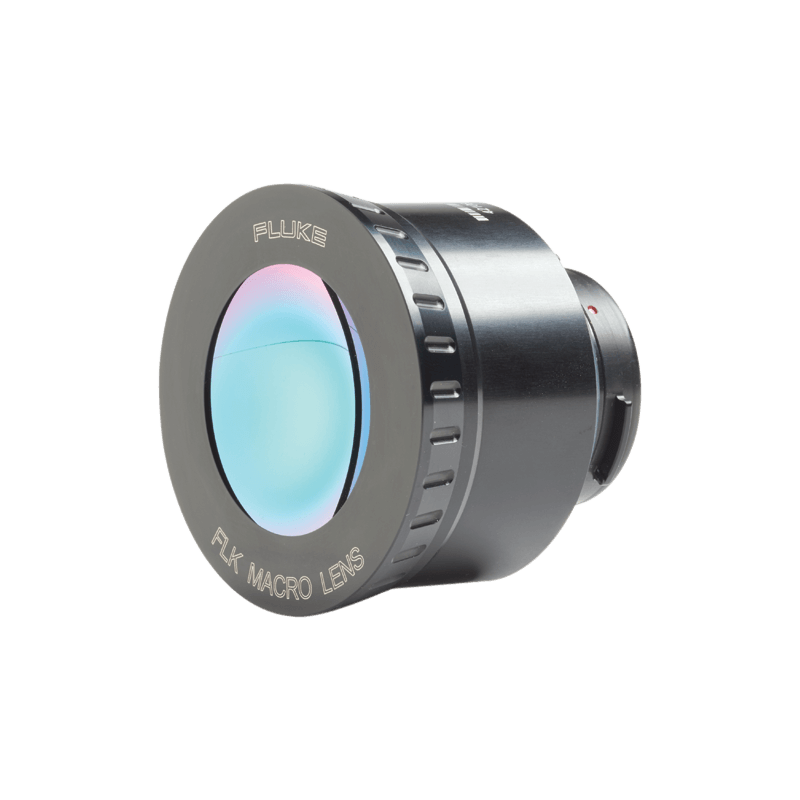

FLUKE FLK-MACRO-LENS
