FLUKE Networks DSX2-5000QI / G-INT | DSX-5000 CableAnalyzer, 1 GHz, incl.Gold Support & CertiFiber Pro Quad (multimode and singlemode) OLTS modules &

Manufacturer number: DSX2-5000QI/G INT

FLUKE Networks DSX2-5000QI / G-INT
FLUKE Networks DSX2-5000QI / G-INT
FLUKE Networks DSX2-5000QI / G-INT
FLUKE Networks DSX2-5000QI / G-INT
FLUKE Networks DSX2-5000QI / G-INT
FLUKE Networks DSX2-5000QI / G-INT
FLUKE Networks DSX2-5000QI / G-INT
FLUKE Networks DSX2-5000QI / G-INT
FLUKE Networks DSX2-5000QI / G-INT
FLUKE Networks DSX2-5000QI / G-INT
FLUKE Networks DSX2-5000QI / G-INT
FLUKE Networks DSX2-5000QI / G-INT
FLUKE Networks DSX2-5000QI / G-INT
FLUKE Networks DSX2-5000QI / G-INT
FLUKE Networks DSX2-5000QI / G-INT
FLUKE Networks DSX2-5000QI / G-INT
Delivery time upon request

€26,709.00

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Scope Related Articles

FLUKE NETWORKS DSX2-5000QI / G-INT | DSX2-5000 CableAnalyzer, 1 GHz, Versiv2 main and remote device & 2 DSX copper modules, CertiFiber Pro Quad (multimode and single mode) OLTS modules, including 1 year of Gold Support.

  • Display: 5.7 LCD with configured capacitance touchscreen
  • Housing: Robust plastic with protective coating
  • Cable types: TIA Cat 3, 4, 5, 5e, 6, 6A, 8: 100 Ω || ISO / IEC Class C, D, E, EA, F, FA and I / II: 100Ω and 120Ω
  • Max. Frequency: 1,000 MHz
  • Autotest duration: Full 2-way Autotest of Cat 5e or 6 / Class D or E: 9 seconds || Full 2-way Autotest of Cat 6A / Class EA: 10 seconds
  • Power supply: Lithium-ion battery pack, 7.2 V
  • Battery life: up to 8 h
  • Main unit dimensions: 66.7 mm x 133.3 mm x 279.4 mm
  • Main unit weight: 1.28 kg

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 1.93 MB

Description

DSX2-5000QI / G-INT | DSX-5000 CableAnalyzer, 1 GHz, incl.Gold Support & CertiFiber Pro Quad (multimode and singlemode) OLTS modules &

The Fluke Networks DSX CableAnalyzer series copper cable certifiers enable measurement and certification of twisted pair cabling up to 40 Gigabit Ethernet and can be used for all cabling systems such as Cat 5e, 6, 6A, 8 or class FA and I / II. Cabling certification is part of a process that begins with system design and ends with the system warranty. The faster this process is completed, the faster the investment pays off. Unfortunately, there are many factors that slow down the process. Incorrect configuration of the meter, testing the wrong limits, waiting for experienced technicians to analyze or correct problems, misinterpreting the results and reports that customers cannot understand are just a few examples.

The copper cable certifiers of the DSX CableAnalyzer series are part of the Versiv product family for copper cable certification, which offers precise and error-free cabling certification. Several teams, different media types and several test requirements are involved in the installation. When it comes to profitability, often only a few percentage points are the tip of the scales. DSX certified copper cabling is compliant with all standards, including accuracy level VI / 2G, makes it easier to manage orders and leads to a faster system guarantee. The solution is not only aimed at experienced technicians and project managers. People with different skills can improve setup, operation and test reports while managing different projects.

The Fluke Networks

Product features:

  • The modular Versiv ™ design supports copper certification, fiber optic attenuation, OTDR tests and testing of the fiber end faces.
  • Unrivaled speed level for Cat 6A, 8, Class FA and all current standards
  • The ProjX ™ system manages task requirements and progress from setup to system acceptance to ensure that all tests are completed.
  • The Taptive ™ user interface simplifies setup and eliminates errors.
  • Analyze test results and create professional test reports using LinkWare ™ management software.
  • Graphic display of error sources (e.g. crosstalk, return loss and shielding errors) for even faster diagnosis.
  • Intertek verified to TIA Level 2G - the strictest accuracy requirements.
  • Our copper cable certification tools are supported by cabling companies worldwide.
  • Integrated alien crosstalk tests.
  • Compatible with Linkware Live.

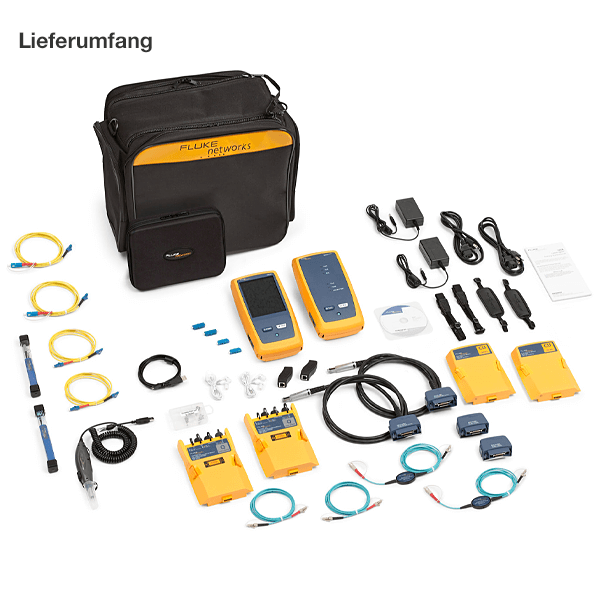

Lieferumfang

  • 1 Versiv main unit and remote
  • 2 DSX-5000 CableAnalyzer modules
  • 2 CertiFiber Quad OLTS Modules
  • Cat 6A / Class EA permanent link adapter set
  • Cat 6A / Class EA Channel Adapters
  • 2 headsets
  • 2 wrist strap
  • 2 shoulder straps
  • carry bag
  • USB interface cable
  • 2 AC chargers
  • 2 universal couplings
  • USB Video Inspection Probe w / 4 tips
  • 2 Quick Clean Cleaners (1.25 / 2.50 mm)
  • 2 LC / LC Simplex adapters
  • SC / LC EF-Compliant MM TRC Kit 50 µm
  • SC / LC SM TRC kit, TRC carry case
  • integrated Wi-Fi
  • Declaration of calibration practices
  • quick start Guide
