FLUKE 87V-MAX / E2-KIT | Combokit Fluke 87V MAX E2 for industrial electricians

Name: 87V-MAX / E2-KIT | Combokit Fluke 87V MAX E2 for industrial electricians
Brand: FLUKE
SKU: FLUKE-87V-MAX/E2 KIT
Availability: InStock

Manufacturer number: FLUKE-87V-MAX/E2 KIT

2 in stock. Ready to ship in 1 business day

On Request

or choose one of the following options:

Product inquiries

Fluke 87V-MAX / E2-KIT | Combokit Fluke 87V MAX E2 for industrial electricians

True RMS values of AC voltage and current for precise measurements on non-linear signals
Measurement of direct and alternating voltages up to 1000 V.
Measurements up to 10 A (20 A for 30 seconds)
Frequency up to 200 kHz
With the built-in thermometer, you can conveniently record the temperature values without having to carry a separate measuring device.
Min./Max./ mean value recording plus 250 μs peak Min./Max. To automatically record deviations
Unique function for precise voltage and frequency measurements on motor drives with variable frequency (VFD) and other electrical devices in which harmonics overlap the fundamental frequency
Large display and two-level bright backlighting as well as backlit keys for improved readability
High-resolution display mode with a display range of 19,999
Long battery life (800 hours)

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	5160712
Backlight:	Yes
Basic precision:	AC 0,7 % / DC 0,05 %
Capacity measuring range:	0,01 nF - 9999 µF
Current measuring range AC/DC:	0.1µA - 10A / 0.1µA - 10A
Data memory / logger:	No / No
Dimensions (L x W x H) (mm):	215 x 101 x 60
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	20000
Electrical safety:	CAT III 1000 V, CAT IV 600 V
Frequency measuring range:	0,5 Hz - 199,99 kHz
Min. / Max. Recording:	Yes / Yes
Model:	FLUKE-87V-MAX/E2 KIT
Number of positions:	4.5
Resistance measuring range:	0,1 Ω - 50 MΩ
Temperature measurement ( PT100 / Type K / Type J):	-200°C - +1090°C
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	0,1 mV - 1000 V / 0,1 mV - 1000 V
Warranty (years):	30
Weight (kg):	0.6985

Description

87V-MAX / E2-KIT | Combokit Fluke 87V MAX E2 for industrial electricians

The 87V MAX has all the proven features of today's most popular digital multimeter, the Fluke 87V, and much more.

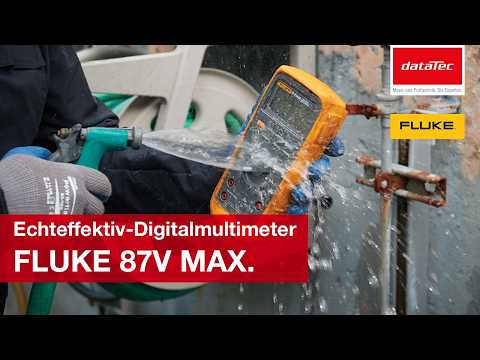

Fluke's most robust digital multimeter. The 87V MAX has an industrial housing and a removable holster. The holster can also be used as a measuring tip holder for one-handed operation.

Degree of protection IP67

Fully waterproof and dustproof so you can work reliably in all conditions.

Withstands heat and cold

The meter has an extended operating temperature range from -40 ° C (up to 20 minutes) to +55 ° C.

Lieferumfang

L224 silicone test leads
AC220 alligator clips
TP238 test probes
Magnetic straps
80BK temperature sensor
Holster
Bag C35
battery
Operation manual.
