FLUKE 771 | Current clamp, measuring mA process

Name: 771 | Current clamp, measuring mA process
Brand: FLUKE
SKU: FLUKE-771
Price: 742.85 EUR
Availability: InStock

Manufacturer number: FLUKE-771

1 in stock. Ready to ship in 1 business day

€742.85

% €895.00 (17% saved)

or choose one of the following options:

Request a quote Product inquiries

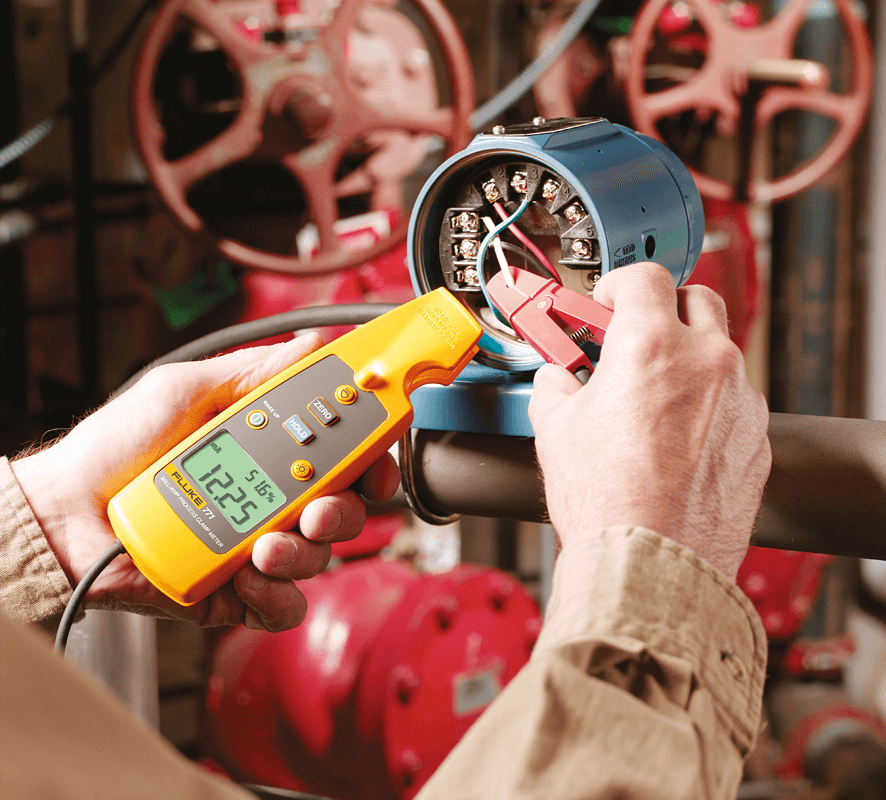

Fluke 771 mA process clamp meter for signal measurements in the 4 to 20 mA range without breaking the loop.

Ideal for measuring a mA signal for analog inputs / outputs on the PLC and control system
Measure 4 to 20 mA output signals from transmitters without breaking the loop
Highest accuracy in its class of 0.2%
Measurement of mA signals with a resolution of 0.01 mA
Resolution and sensitivity up to 0.01 mA
Hold function records and displays fluctuating measured values
Double display with background lighting shows the mA measured value and percent of the 4 to 20 mA measuring span
Measuring point lighting illuminates wires that are difficult to see in dark control cabinets
Detachable clamp with extension cable for measurements in tight spaces
Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
Automatic switch-off of the device after 15 minutes, automatic switch-off of the background lighting and measuring point lighting after 2 minutes
Battery 4 x 1.5 V, alkaline, IEC LR6
Weight: 0.26kg
Dimensions: W 212 mm x H 59 mm x D 38 mm
Warranty 3 years, 1 year for the pliers and the cable

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Accuracy current measurement AC/DC:	AC ±0,2 % - ±11 %
Article number:	2646347
Current measuring range AC/DC:	DC 0 mA - 100 mA
Dimensions (L x W x H) (mm):	212 x 59 x 38
Diode test / continuity test:	No / No
Direction of rotation:	No
Enclosure (mm):	4.5
Frequency measuring range:	No
Hold:	Yes
Measurement method:	TRMS
Min. / Max. Measurement:	No / No
Model:	FLUKE-771
Number of positions:	3.5
Power factor:	Nein
Power measurement (active / apparent / reactive):	No / No / No
Resistance measuring range:	No
Resolution current measurement AC/DC:	AC 1 mA
Temperature measuring range:	No
Weight (kg):	0.26

Description

771 | Current clamp, measuring mA process

Measure 4 to 20 mA signals without breaking the loop with the compact clamp meter for analog inputs / outputs on PLCs and control systems. With the detachable pliers with extension cable, you can take measurements in tight spaces and the integrated measuring point lighting illuminates difficult-to-see wires in dark control cabinets.

Lieferumfang

Clamp meter
Padded carrying bag
User Guide

Accessoires (2 products)

Gossen Metrawatt
M311G

Metraclip 63 current clamp AC / DC, 999mA, 4 digits

Ready to ship in 5 to 10 business days

€1,200.00

Gossen Metrawatt
M311H

Metraclip 64 current clamp AC / DC, 999mA, 4 digits

Ready to ship in 5 to 10 business days

€1,200.00

Recommendations (26 products)

Benning
044028

MM2 multimeter, hand CAT III 600V 3 1/2 digits, RMS

Ready to ship in 5 to 10 business days

€138.50

Gossen Metrawatt
METRAHITE OUTDOOR

Multimeter, TRMS, 4 1/2, ± 0.05% VDC, IP65 (M240O)

Ready to ship in 5 to 10 business days

€798.00

Gossen Metrawatt
M241A

Metrahit BASE multimeter, hand 4 ½ digits, 12,000 digits, DAkkS

Ready to ship in 5 to 10 business days

€419.00

Gossen Metrawatt
M243E

MetraHit TECH multimeter, hand 4 ½ digits, without interface

Delivery time upon request

€610.00

Gossen Metrawatt
METRAHIT PM XTRA (formerly EXTRA)

Multimeter, TRMS, 4 6/7, ± 0.05% VDC, data logger (M250A)

Ready to ship in 5 to 10 business days

€924.00

Gossen Metrawatt
M242E

Metrahit PRO + GH multimeter 4 1/2 digits, with rubber cover

Ready to ship in 5 to 10 business days

€530.00

Gossen Metrawatt
M243A

Metrahit TECH multimeter, hand 4 ½ digits, 12,000 digits, DAkkS

1 in stock. Ready to ship in 1 business day

€572.00

Gossen Metrawatt
METRAHITE PM TECH

Multimeter, TRMS, 4 6/7, ± 0.05% VDC (M253A)

Ready to ship in 5 to 10 business days

€809.00

Gossen Metrawatt
M206A

Metrahit WORLD multimeter, hand 3 6/7 digits, DAkkS calibration certificate

2 in stock. Ready to ship in 1 business day

€415.00

Gossen Metrawatt
M240A

Metrahit X-TRA multimeter, hand 4 ½ digits, 12,000 digits, IR interface, DAkkS

Ready to ship in 5 to 10 business days

€699.00

Gossen Metrawatt
M252A

Metrahit EU Pro Multimeter 4 6/7 digits, 60,000 digits, IR, DAkkS, case

Ready to ship in 5 to 10 business days

€777.00

Gossen Metrawatt
MetraHit 2+

Multimeter, TRMS, 3 6/7, IP40 (M205A)

Reordered - in stock. Delivery time on request

€274.00

Gossen Metrawatt
M234D

Metraport 40S multimeter, hand 4 3/4 digits, folding display, DAkkS calibration certificate

2 in stock. Ready to ship in 1 business day

€870.00

Gossen Metrawatt
M242A

Metrahit PRO multimeter, hand 4 ½ digits, 12,000 digits, DAkks

Ready to ship in 5 to 10 business days

€492.00

Benning
044073

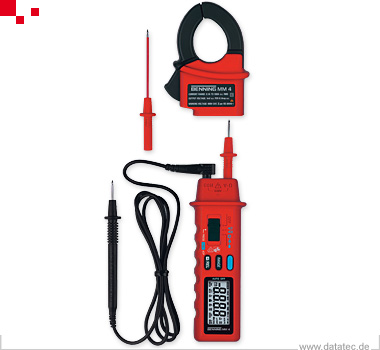

MM4 multimeter, hand, CAT III 300V 3 3/4 digits, AC 300A via current clamp adapter
