FLUKE 568 | Thermometer, infrared, 50: 1, -40 ° C to 800 ° C with K thermocouple, SW

Manufacturer number: FLUKE-568

568
568
568
568
568
568
568
568
Delivery time upon request

On Request

%
or choose one of the following options:
Request a quote Product is already in cart Product downloads Product inquiries Request education-price % Additional offers for this product
Highlights Documents / Downloads Description Scope Related Articles

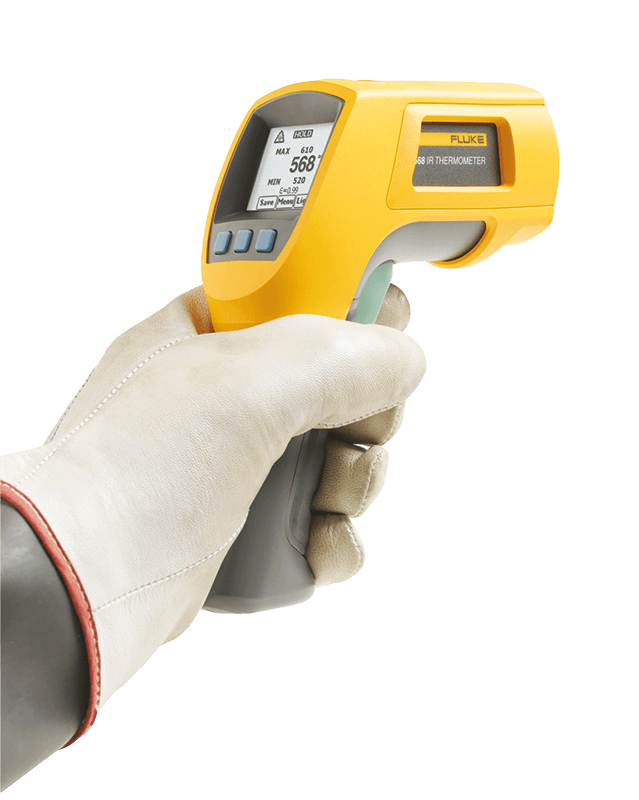

Fluke 568 multifunction thermometer, -40 ° C to 800 ° C and K thermocouple. Combined infrared and contact thermometer with logging function.

  • The extended functions can be easily selected with menu navigation with just three buttons and the graphic display.
  • With the IR thermometer you can measure small objects from a distance.
  • Adjustable emissivity and an integrated table of common materials for higher IR measurement accuracy
  • Quickly identify problems with the MIN / MAX / AVERAGE and difference functions
  • A two-color flashing alarm gives a visual warning if the measurement exceeds specified limit values.
  • Compatible with all type K thermocouples with mini connectors.
  • Data logging with time and date information.
  • Soft rubber grips for improved robustness.
  • The user interface can be set in 6 languages.
  • Infrared temperature range: -40 ° C to 800 ° C
  • Infrared accuracy <0 ° C: ± (1.0 ° C + 0.1 ° / 1 ° C); > 0 ° C: ± 1% or ± 1.0 ° C (whichever is greater)
  • Display resolution 0.1 ° C
  • Infrared response time <500 ms
  • Temperature range for contact measurements: -270 ° C to 1372 ° C
  • Weight: 1.026 kg
  • Dimensions (HxLxW): 25.4 cm x 19.1 cm x 6.9 cm
  • Two year warranty

Documents & Downloads

Datasheet
pdf | 0.39 MB

Description

568 | Thermometer, infrared, 50: 1, -40 ° C to 800 ° C with K thermocouple, SW

With a clear, menu-driven user interface and graphic display, the Fluke 568 Multifunction Thermometer simplifies even complex temperature measurements. With just a few keystrokes, the user can quickly navigate and set the emissivity, start data logging, or turn alarms on and off.

For measurements on a wide variety of components and surfaces, the robust, compact thermometer combines non-contact temperature measurements and temperature measurements with contact to the measuring point. The measuring device offers a universal solution for temperature measurements for maintenance and troubleshooting.

Lieferumfang

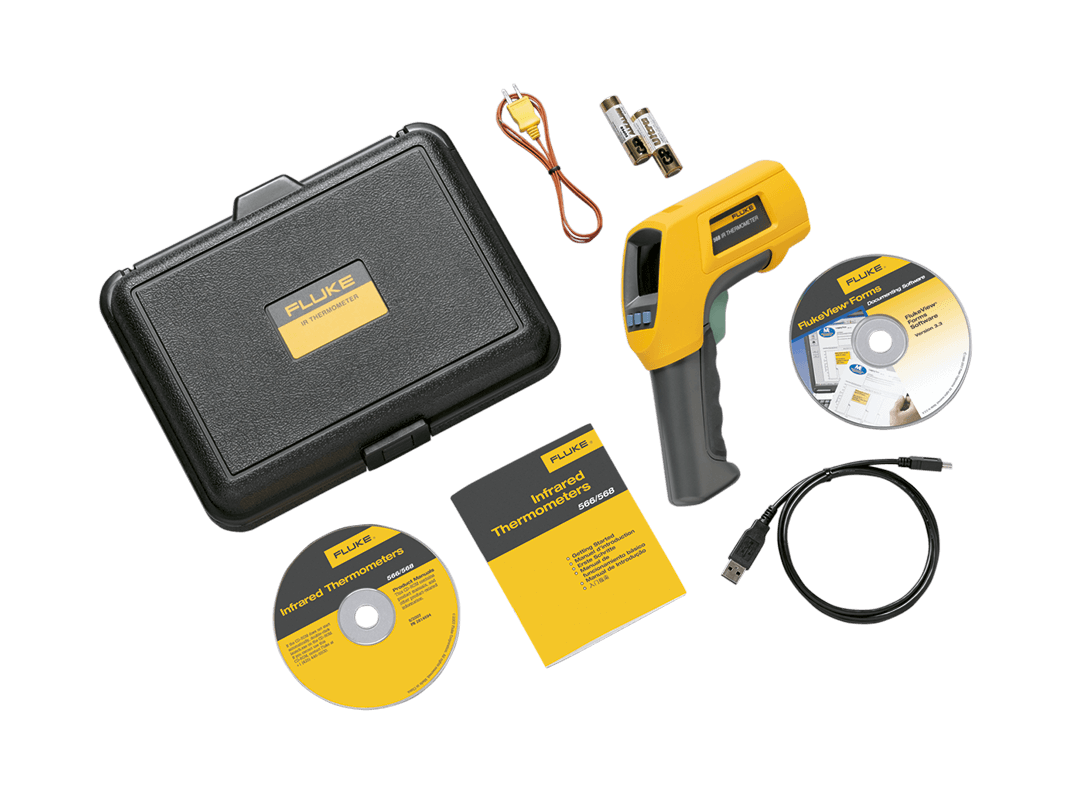

  • FlukeView® Forms software, USB cable, bare K-type thermocouple probe, 2 AA batteries, hard case, quick start guide and user manual.

Accessoires (5 products)

80PK-11
FLUKE
80PK-11
Sensor with Velcro type K, -30 to + 105 ° C, 2-pin. Mini plug
Delivery time upon request
On Request
80PK-25
FLUKE
80PK-25
Immersion thermocouple type K, -40 to + 350 ° C, 2-pin. Mini plug
Delivery time upon request
On Request
80PK-26
FLUKE
80PK-26

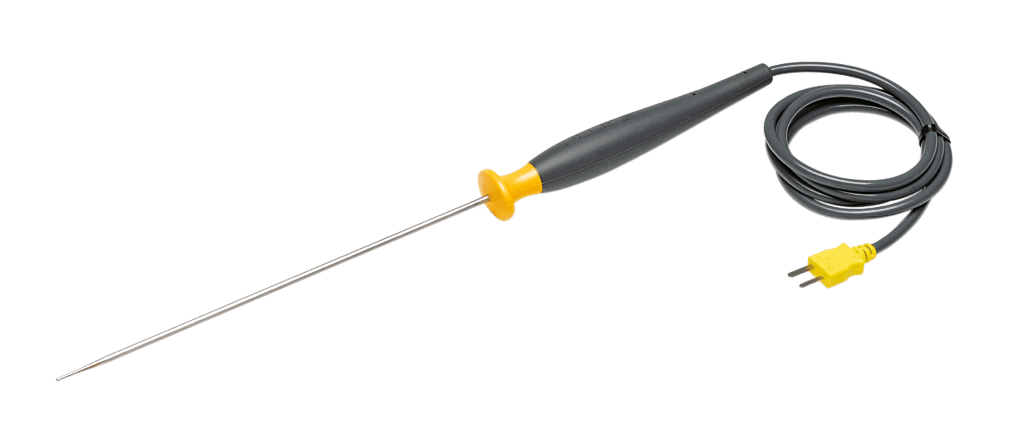

Sensor with exposed thermocouple type K, -40 to + 816 ° C, 2-pin. Mini plug
