FLUKE 116 / 62MAX + / KIT | Fluke HVAC Multimeter and IR T

Name: 116 / 62MAX + / KIT | Fluke HVAC Multimeter and IR T
Brand: FLUKE
SKU: FLUKE-116/62 MAX+
Availability: OutOfStock

Manufacturer number: FLUKE-116/62 MAX+

Delivery time upon request

On Request

or choose one of the following options:

Product inquiries

FLUKE 116-62MAX - KIT | Fluke technician combo kit.

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	4296018
Backlight:	Yes
Basic precision:	3 %
Capacity measuring range:	1000nF - 9999µF
Current measuring range AC/DC:	No no
Data memory / logger:	No / No
Dimensions (L x W x H) (mm):	167 x 84 x 46
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	6000
Electrical safety:	CAT III 600 V
Frequency measuring range:	99,99Hz - 50kHz
Min. / Max. Recording:	Yes / No
Model:	FLUKE-116/62 MAX+
Number of positions:	4
Resistance measuring range:	600Ω - 40MΩ
Special features:	Clamp meter 323
Temperature measurement ( PT100 / Type K / Type J):	-40°C - +400°C
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	6V - 600V / 600mV - 600V
Warranty (years):	3
Weight (kg):	0.55

Documents & Downloads

Datasheet

pdf | 2.34 MB

Description

116 / 62MAX + / KIT | Fluke HVAC Multimeter and IR T

The technician combo kit is a particularly attractive complete solution for efficient troubleshooting for heating, ventilation and air conditioning technicians.

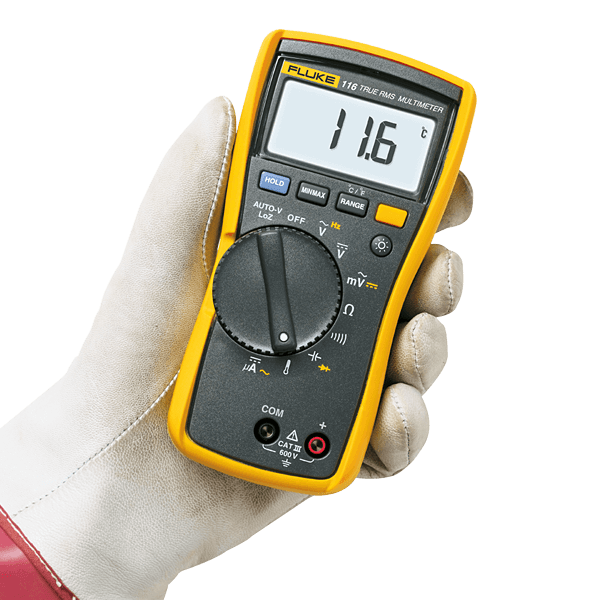

Fluke 116 digital multimeter with temperature and micro-amperage measurement.

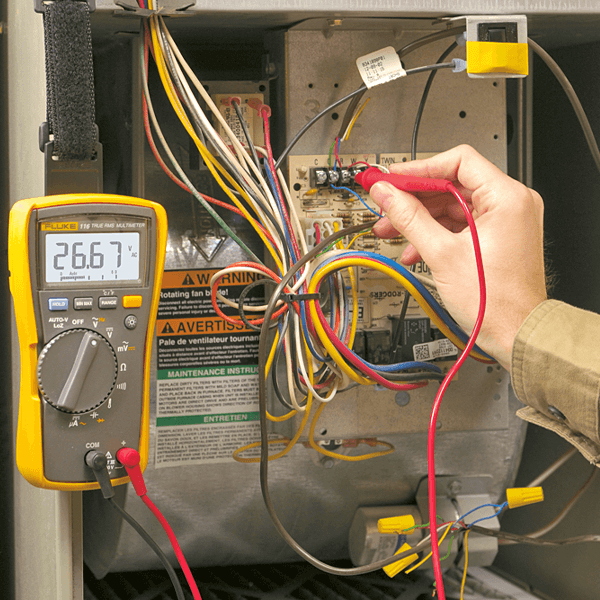

The Fluke 116 compact true-RMS meter is designed specifically for heating, ventilation, and air conditioning technicians. With the help of temperature and microampère measurement, malfunctions in heating, ventilation, air conditioning and fire alarms can be diagnosed in no time at all.
The large LED display is ideal for working in poorly lit environments. The multimeter measures resistance, continuity, frequency and capacitance.

Fluke 62 MAX + Infrared Thermometer
The Fluke 62 Max + combines compact size, high accuracy, robust and ergonomic design (up to 3 meters drop height) and very great ease of use. The large, backlit display enables the readings to be read even in poor lighting conditions. The 62 MAX + is equipped with a double rotating laser to identify the area to be measured.

The set consists of:

116 digital multimeters
62 MAX + infrared thermometer
Measurement performance set
ToolPak magnetic hanging loop
Thermocouple with flexible Velcro fastening
Integrated temperature sensor
Thermocouple adapter
Deluxe padded tote bag with shoulder strap
