FLUKE FLK-FEV350/KIT DE | FEV350 analyzer with installation tester 1664 FC, test adapter & zero point adapter TY2
Manufacturer number: FLK-FEV350/KIT DE
€3,599.10
% €3,999.00 (10% saved)
FLUKE FLK-FEV350/KIT DE | Electric vehicle charging station analyzer FEV350 with installation tester 1664 FC, test adapter & zero point adapter TY2.
- Comprehensive test solution including multi-function installation tester: The Fluke 1664 FC installation tester is included and enables comprehensive testing of AC charging stations for electric vehicles, including protective conductor resistance, insulation resistance and loop/grid impedance.
- All AC charging stations: Quickly and reliably check the safety and performance of AC charging stations for electric vehicles with support for Type 1 and Type 2 charging plugs.
- Easy to use: The FEV350 enables tests to be carried out easily and efficiently without the need for multiple tools, ideal for electricians, technicians and installers.
- Clear and concise: The color display provides clear instructions for conducting tests and clearly shows "Pass" or "Fail" for all results, for user-friendly analysis.
Documents & Downloads
Description
FLK-FEV350/KIT DE | FEV350 analyzer with installation tester 1664 FC, test adapter & zero point adapter TY2

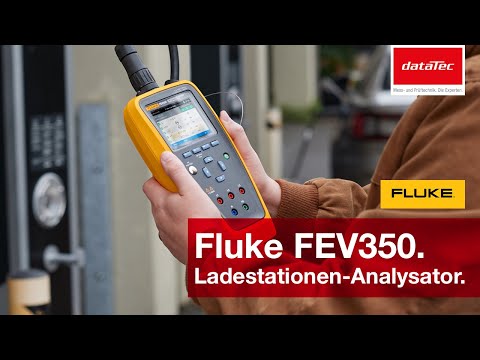

The Fluke FEV350 Electric Vehicle Charging Station Analyzer is your trusted partner for testing the safety and performance of AC charging stations. This innovative device offers a comprehensive solution for testing electric vehicle charging stations with Type 1 (optionally available) and Type 2 charging plugs. Designed for electricians, technicians and installers, the FEV350 enables tests to be carried out easily and efficiently without the need for multiple tools.
Scope of delivery:
- FEV350/BASIC Analyzer
- Multifunction installation tester 1664 FC
- Test cable with plug FEV300-CON-TY2
- Zero point adapter/TY2
- TPAK Magnetic Hanger
- Padded carrying case
Features and Benefits:
- Fluke Installation Tester Kit: Includes the Fluke 1664 FC multifunction installation tester to perform additional certification and testing tasks, including protective conductor resistance, insulation resistance and loop/line impedance.
- Universal Compatibility: Works with all types of electric vehicle charging stations and supports Type 1 and Type 2 charging plugs (TY1 charging plug optionally available).
- Safety and Performance: Ensures the safety and functionality of AC charging stations for electric vehicles.
- Versatile functions:Performs a range of measurements including PE pre-test, visual inspection, RCD trip test, phase sequence and more.
- Easy to use:Portable, easy to use and offers pre-determined test plans for simplified analysis.
- Clear:Instructions on the clear colour display make it easy to carry out tests and indicate 'Pass' or 'Fail' for all results.
- Simple documentation:Quick and easy documentation and reporting of test results with the TruTest™ Software module (optionally available).
Technical specifications:
- Electrical input ratings:
- 1-phase: 250 V max.
- 3-phase: 230/400 V max.
- 50/60 Hz, max. 1 A
- Internal power consumption: Max. 3 W
- Dimensions: ~263 mm x 123 mm x 63 mm (without plug TY1 or TY2)
- Power supply: 4 x AA/IEC LR6 alkaline batteries or IEC HR6 NiMH batteries
- Operating temperature: -10 °C to 40 °C
- Storage temperature: -20 °C to 50 °C
- Wireless interface: Bluetooth 5.0, frequency range: 2412 MHz to 2462 MHz, output power: <100 mW
- Safety: According to IEC 61010-1, IEC 61010-2-030, CAT II 300 V, Protection Class II
- Protection class: IEC 60529: IP 40
The Fluke FEV350 Electric Vehicle Charging Station Analyzer is ideal for electricians, technicians and installers who install, maintain or test electric vehicle charging stations. It is essential for the safety and performance of AC charging stations in residential buildings, commercial establishments and public facilities.
Lieferumfang
- FEV350/BASIC Analyzer
- Multifunction Installation Tester 1664 FC
- Test cable with plug FEV300-CON-TY2
- Zero point adapter/TY2
- TPAK Magnetic hanger
- Padded carrying case
